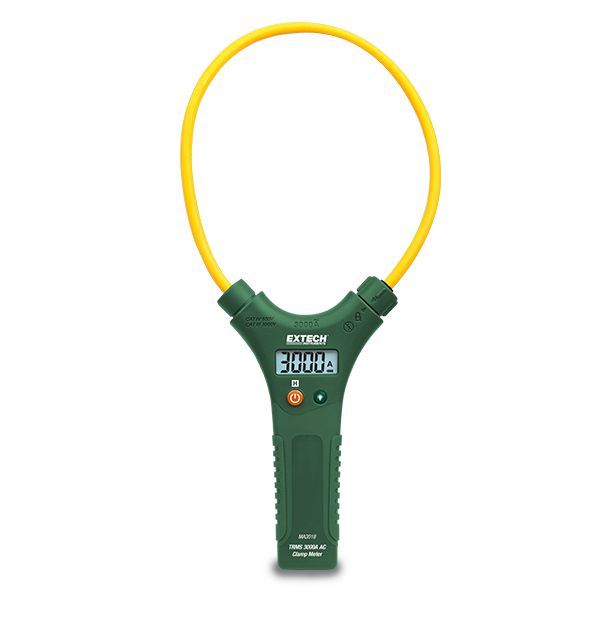

Extech MA3018
3000A True RMS AC Flex Clamp Meter
The Extech MA3018 is a 3000 A True RMS AC Flex Clamp Meter. The MA3018 features an 45.7 cm (18 in) flexible clamp with LCD monitor. The True RMS measurements are for accurate readings of noisy, distorted, or non-sinusoidal waveforms. Complete with two AAA batteries. UL listed and CAT IV 600V safety rating.
Specifiche
| Specifiche generali | |
|---|---|
| Accuratezza di base corrente CA | ±(3% of reading + 5 digits) |
| Corrente AC | 0 to 30.00A, 30.00 to 300.0A, 300.0 to 3000A |
| Dimensione pinza | 18" (45.7cm) |
| Risoluzione max corrente CA | 0.01A |
| True RMS | Yes |
| Ulteriori dettagli | |
|---|---|
| Alimentazione | 2 × AAA (1.5V) batteries |
| Categoria di sicurezza | CATIII - 1000V, CATIV - 600V |
| Certificazioni | CE, UL, NIST |
| Dimensioni | 13.8 × 5.1 × 1" (350 × 130 × 25mm) |
| Display | 3000-count segment LCD with backlighting |
| Garanzia | 2 years |
| Peso | 7.1oz (200g) |
Resources & Support
User Manual
Manuale utente Extech MA3010 MA3018
User Manual
Extech MA3010 MA3018 User Manual
Certification
Extech MA3018 Declaration of Conformity
Datasheet
Extech MA3010-MA3018 Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
