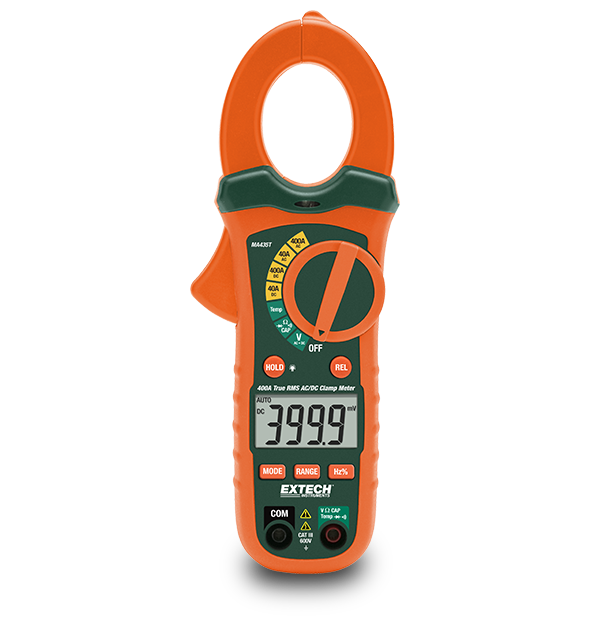

Extech MA435T
400A True RMS AC/DC Clamp Meter + NCV
The Extech MA435T is a compact, 400 A AC Clamp Meter that enables users to take measurements in tight spaces. The 30 mm (1.2 in) jaw opening can accommodate conductors up to 350 MCM. Featuring a large, four digit readout, the illuminated display is easy to see in poorly lit work areas, and the thumb dial selector is ergonomically placed for convenient, one-hand operation. It also has True RMS for better accuracy when measuring distorted waveforms. The MA435T’s multimeter functions include AC/DC voltage and current, resistance, capacitance, frequency, diode test, duty cycle, continuity, and thermocouple temperature. Also built into the MA435T is the non contact voltage (NCV) detector. Eliminating the need for a separate tester, the NCV detector uses a red LED to alert users to the presence of voltage on live wires. Additional features include data hold, auto power off, and low battery indication. Comes with test leads, 9 V battery, soft carrying case, and user manual.
Specifiche
| Specifiche generali | |
|---|---|
| Accuratezza di base corrente CA | ±(2.5% of reading + 8 digits) |
| Accuratezza di base corrente CC | ±(2.5% of reading + 5 digits) |
| Accuratezza di base frequenza | ±(1.5% of reading + 2 digits) |
| Accuratezza di base temperatura (tipo N) | 0.1°F/°C |
| Accuratezza di base tensione CA | ±(1.5% of reading + 5 digits) |
| Accuratezza di base tensione CC | ±(1.5% of reading + 2 digits) |
| Capacità | 100µF |
| Continuità | Yes |
| Corrente AC | 400A |
| Corrente DC | 400A |
| Dimensione pinza | 1.2" (30mm), conductors up to 350MCM |
| Frequenza | 10Hz to 10kHz |
| Resistenza | 40MΩ |
| Rilevatore di tensione senza contatto (NCV) | Yes |
| Risoluzione max capacità | 0.01nF |
| Risoluzione max corrente CA | 0.01A |
| Risoluzione max corrente CC | 0.01A |
| Risoluzione max resistenza | 0.1Ω |
| Risoluzione max temperatura (tipo K) | -4 to 1400 °F/-20 to 760 °C |
| Risoluzione max tensione CA | 0.1mV |
| Risoluzione max tensione CC | 0.1mV |
| Temperatura (tipo N) | ±(3% of reading + 9°F/5°C) |
| Tensione AC | 600V |
| Tensione DC | 600V |
| Test diodi | Yes |
| True RMS | Yes |
| Ulteriori dettagli | |
|---|---|
| Alimentazione | 1 × 9V battery |
| Categoria di sicurezza | CATIII - 600V |
| Certificazioni | CE, ETL |
| Dimensioni | 7.8 × 2.8 × 1.6" (197 × 70 × 40mm) |
| Display | 4000-count segment LCD |
| Garanzia | 2 years |
| Peso | 6.5oz (183g) |
