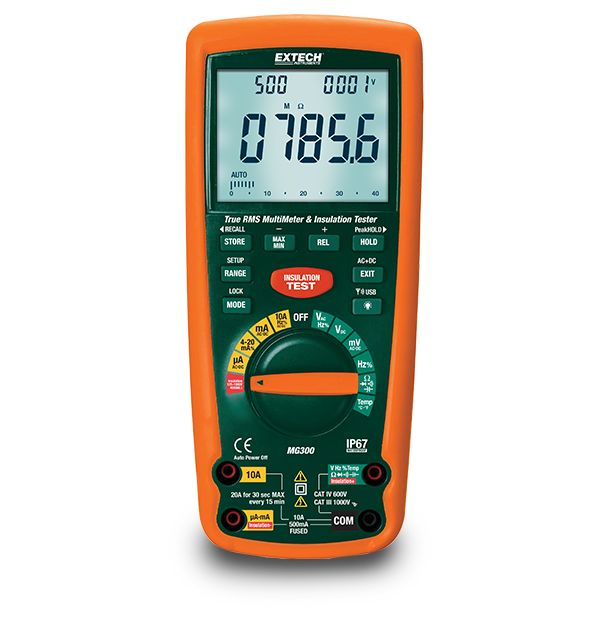

Extech MG300
13 Function Wireless True RMS MultiMeter/Insulation Tester
The Extech MG300 is a True RMS Multimeter with a built in insulation resistance tester that features wireless data streaming for remote monitoring and datalogging. By adding insulation testing capabilities to the ubiquitous digital multimeter, electricians are always equipped for insulation testing. This feature helps make the MG300 a more routine part of predictive maintenance with faster troubleshooting and repairs without additional tools. The rugged and waterproof (IP67-rated) combination meter includes a digital insulation resistance tester (or megohmmeter) with 4 different test voltages for measuring resistance up to 4G Ω with 0.001 MΩ resolution. Complete with remote receiver with USB cable, windows compatible software, heavy duty test leads, alligator clip test lead, Type K bead wire temperature probe with adapter, carrying case, and 6 AA batteries.
Specifiche
| Specifiche generali | |
|---|---|
| % loop di corrente (4-20 mA) | -25 to 125% |
| Accuratezza di base ciclo di lavoro | ±1.2% |
| Accuratezza di base corrente CA | ±1.5% |
| Accuratezza di base corrente CC | ±1.0% |
| Accuratezza di base frequenza | ±0.1% |
| Accuratezza di base resistenza di isolamento | ±3% |
| Accuratezza di base temperatura (tipo N) | 0.1°F (0.1°C) |
| Accuratezza di base tensione CA | ±1% |
| Accuratezza di base tensione CC | ±0.06% |
| Capacità | 40mF |
| Ciclo di lavoro | 0.1 to 99.9% |
| Continuità | Yes |
| Corrente AC | 10A |
| Corrente DC | 10A |
| Frequenza | 100MHZ |
| Frequenza di trasmissione wireless | 915MHz |
| Resistenza | 40MΩ |
| Resistenza isolamento | 4MΩ, 40MΩ, 400MΩ, 4000MΩ |
| Risoluzione max capacità | 0.001nF |
| Risoluzione max ciclo di lavoro | 0.01 |
| Risoluzione max corrente CA | 0.1µA |
| Risoluzione max corrente CC | 0.01µA |
| Risoluzione max frequenza | 0.001HZ |
| Risoluzione max loop di corrente (4-20 mA) | 0.01% |
| Risoluzione max resistenza | 0.01Ω |
| Risoluzione max resistenza di isolamento | 0.001MΩ |
| Risoluzione max temperatura (tipo K) | -58 to 2192°F (-50 to 1200°C) |
| Risoluzione max tensione CA | 0.1mV |
| Risoluzione max tensione CC | 0.01mV |
| Temperatura (tipo N) | ±1% + 4.5°F (2.5°C) |
| Tensione AC | 1000V |
| Tensione DC | 1000V |
| Tensione test di isolamento | 125V, 250V, 500V, 1000V |
| Test diodi | Yes |
| True RMS | Yes |
| Ulteriori dettagli | |
|---|---|
| Alimentazione | 6 × AA (1.5V) batteries |
| Categoria di sicurezza | CATIV - 600V |
| Certificazioni | CE, FC, UL |
| Classificazione IP | IP67 |
| Dimensioni | 7.8 × 3.6 × 1.9" (200 × 92 × 50mm) |
| Garanzia | 2 years |
| Peso | 20.5oz (582g) |
