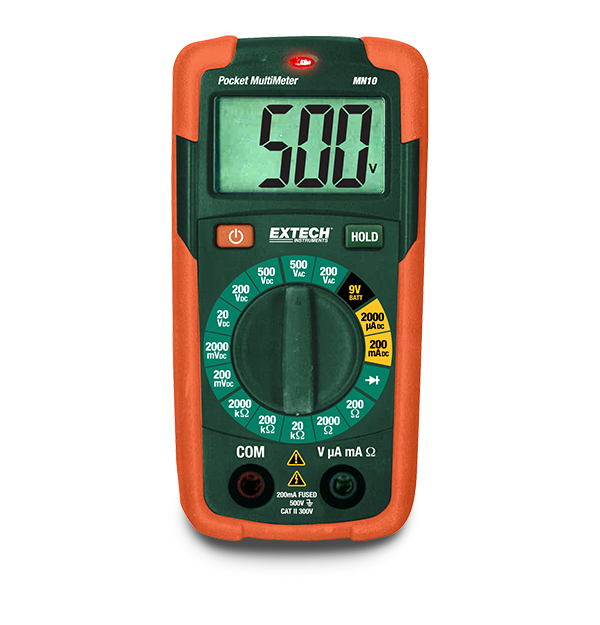

Extech MN10
Pocket MultiMeter + NCV
The Extech MN10 is an affordable, Pocket Multimeter that is fully loaded with functions such as a built in non-contact voltage (NCV) detector, AC/DC voltage, current, resistance, and a battery test. Its easy-to-use manual ranging design allows you to select the voltage, current, or resistance range you are testing. Perfect for students, DIYs, and entry level electricians.
Specifiche
| Specifiche generali | |
|---|---|
| Accuratezza di base corrente CC | ±1.2% |
| Accuratezza di base tensione CA | ±1.2% |
| Accuratezza di base tensione CC | ±0.5% |
| Corrente DC | 200mA |
| Resistenza | 2000kΩ |
| Rilevatore di tensione senza contatto (NCV) | 100 to 600VAC |
| Risoluzione max corrente CC | 1µA |
| Risoluzione max resistenza | 0.1Ω |
| Risoluzione max tensione CA | 0.1V |
| Risoluzione max tensione CC | 0.1mV |
| Tensione AC | 500V |
| Tensione DC | 500V |
| Test batteria | 9V |
| Test diodi | Yes |
| Ulteriori dettagli | |
|---|---|
| Alimentazione | 1 × A23 (12V) battery |
| Categoria di sicurezza | CATII - 300V |
| Certificazioni | CE |
| Dimensioni | 4.3 × 2.1 × 1.3" (108 × 53 × 32mm) |
| Garanzia | 1 year |
| Peso | 3.6oz (102g) |
