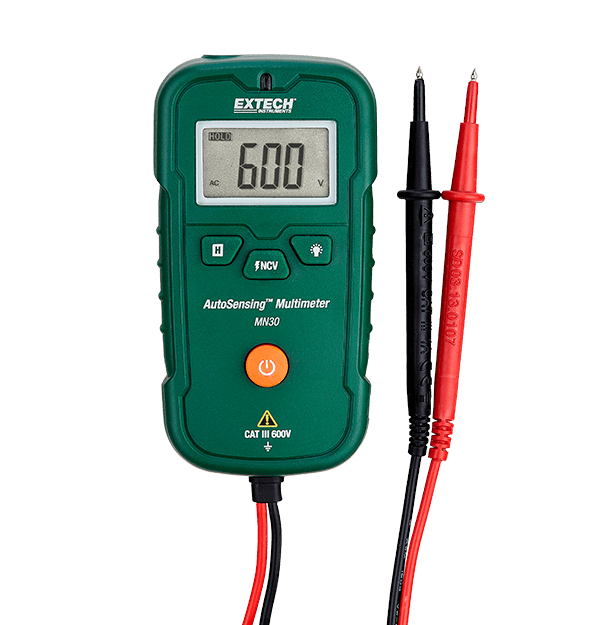

Extech MN30
True RMS AutoSensing™ Multimeter + NCV
The Extech MN30 is a convenient pocket multimeter with an AutoSensing™ feature. The AutoSensing™ feature enables the meter to recognize inputs and automatically switch to the correct mode of operation (i.e. voltage to resistance measurements). The true RMS AC voltage measurement allows for accurate readings regardless of waveforms. The built in, non-contact voltage (NCV) detector allows for quick detection of live voltage. Convenient LED flashlight illuminates dimly lit area.
Specifiche
| Specifiche generali | |
|---|---|
| Accuratezza di base tensione CA | ±(1.5% of reading + 3 digits) |
| Accuratezza di base tensione CC | ±(1.5% of reading + 3 digits) |
| Continuità | <30Ω (beeper) |
| Resistenza | 1Ω to 10MΩ |
| Rilevatore di tensione senza contatto (NCV) | 50 to 600VAC |
| Risoluzione max resistenza | 1Ω |
| Risoluzione max tensione CA | 0.01V |
| Risoluzione max tensione CC | 0.01V |
| Tensione AC | 600V |
| Tensione DC | 600V |
| True RMS | Yes |
| Ulteriori dettagli | |
|---|---|
| Alimentazione | 2 × AAA (1.5V) batteries |
| Categoria di sicurezza | CATIII - 600V |
| Certificazioni | CE, ETL |
| Dimensioni | 4.8 × 2.6 × 1.4" (123 × 65 × 35mm) |
| Garanzia | 2 years |
| Peso | 50V to 600V |
