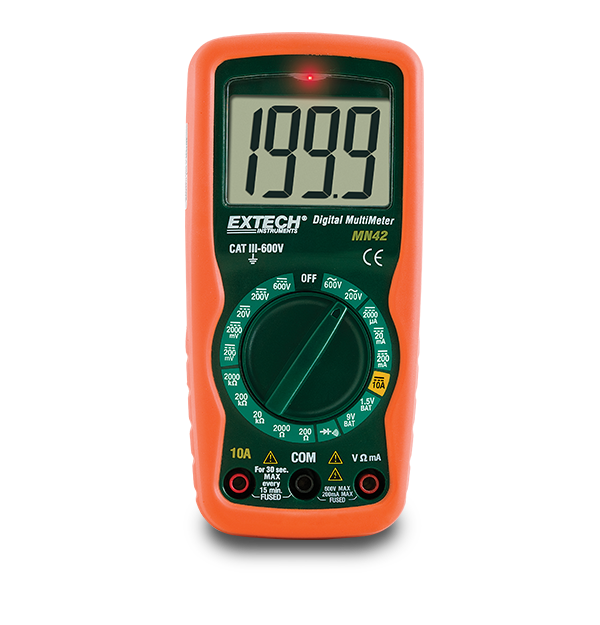

Extech MN42
8 Function Compact MultiMeter + NCV
The compact, manual-ranging Extech MN42 Compact Multimeter is equipped with capabilities a tradesman or technician can use every day, while also perfect for any hobbyist, hacker/maker, or DIYer working on home improvement and A/V projects. Also included is a built in, non contact voltage detector (from 100 VAC to 600 VAC). Freely measure AC/DC voltage, DC current, and resistance, as well as conduct continuity, diode, and battery test. Complete with test leads, 9 V battery, and carrying case.
Specifiche
| Specifiche generali | |
|---|---|
| Continuità | Yes |
| Corrente DC | 10A |
| Resistenza | 2MΩ |
| Rilevatore di tensione senza contatto (NCV) | 100 to 600VAC |
| Risoluzione max corrente CC | 1µA |
| Risoluzione max resistenza | 0.1Ω |
| Risoluzione max tensione CA | 0.1V |
| Risoluzione max tensione CC | 0.1mV |
| Tensione AC | 600V |
| Tensione DC | 600V |
| Test batteria | 1.5V / 9V |
| Test diodi | Yes |
| Ulteriori dettagli | |
|---|---|
| Alimentazione | 1 × 9V battery |
| Categoria di sicurezza | CATIII - 600V |
| Certificazioni | CE |
| Dimensioni | 5.9 × 2.75 × 1.8" (150 × 70 × 48mm) |
| Display | 2000-count segment LCD |
| Garanzia | 2 years |
| Peso | 9oz (255g) |
Resources & Support
User Manual
Extech MN42 User Manual
Datasheet
Extech MN42-MN47 Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
