Discontinued

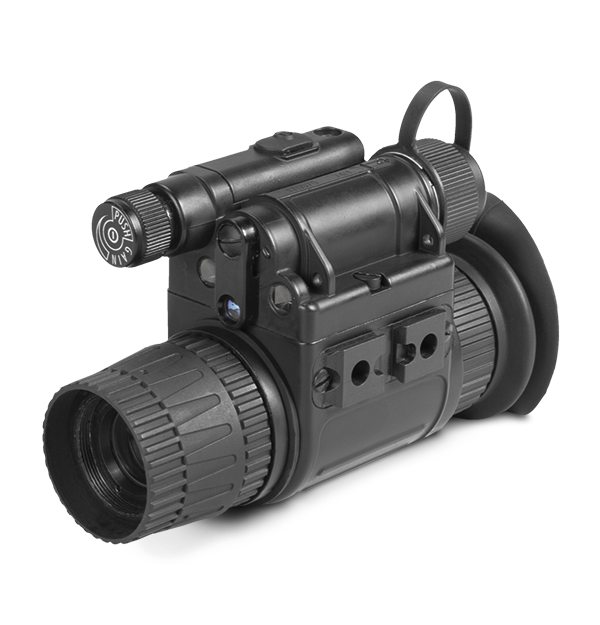

FLIR MNVD-51
51° Multi-Purpose Night Vision Monocular
With a wide 51-degree field of view, the FLIR MNVD-51 offers enhanced situational awareness without moving the optic. Head, helmet, and weapon mounting options allow hands-free operation while a built-in IR illuminator and flood lens improve vision in complete darkness. 40 hours of battery life is possible with a single AA or CR123A battery.
Wide-Angle Night Vision for Complete Awareness
Added hands-free functionality for simple head, helmet, and weapon mounting.
Multi-coated optics and composite housing provide ruggedness and 40-hour runtime with a single AA or CR123A battery allows constant vision.
Wide 51-degree field of view and onboard IR illuminator provides outstanding situational awareness in complete darkness.
Specifiche
| Highlighted | |
|---|---|
| Temperatura di esercizio | -40°C to +50°C (-40°F to +122°F) |
| Sensori e Ottiche | |
|---|---|
| Campo visivo | 51° |
| Conchiglia oculare [mm] | - |
| Controllo automatico luminosità | No |
| Cut_off luce intensa | Yes |
| Diametro pupilla uscita [mm] | - |
| Generazione IIT | FLAG - Filmless Auto-Gated IIT MG |
| Illuminatore infrarossi | Detachable Long Range IR and Built-in with pivotal flood lens |
| Ingrandimento | 1x standard (3x, 5x optional) |
| Messa a fuoco | 0.25 m to Infinity |
| Ottica sistema | F/1.26; 19mm |
| Regolazione diottrie | -6 to +2 dpt |
| Risoluzione | - |
| Tipo fotocatodo | Filmless GaAs |
| Ambientali e Certificazioni | |
|---|---|
| Temperatura di esercizio | -40°C to +50°C (-40°F to +122°F) |
| Temperatura di stoccaggio | -50°C to +50°C (-58°F to +122°F) |
| Alimentazione | |
|---|---|
| Alimentazione | CR123 Lithium 3V (1), or AA Alkaline 1.5V (1), or any AA or CR123 type rechargeable batteries with voltage from 1.2V to 3.2V (1) |
| Autonomia della batteria | Up to 40 hours |
| Indicatore batteria bassa | Yes (In FOV) |
| Spegnimento automatico | Yes |
| Memorizzazione di file e Comunicazione | |
|---|---|
| Controllo remoto | - |
| UI-UX | |
|---|---|
| Colore reticolo | - |
| Controllo guadagno manuale | Yes |
| Indicatore IR | Yes (In FOV) |
| Panoramica sistema | |
|---|---|
| Altezza del mirino Asse sopra la guida | - |
| Garanzia | 2 Years |
| Regolazione Deriva_Alzo | - |
| Tipo di reticolo | - |
| Fisiche | |
|---|---|
| Dimensioni (L x P x A) | 109 x 48 x 73 mm (4.1 x 1.9 x 2.8 in) |
| Montaggio su treppiede | - |
| Peso | 0.31 kg (0.7 lbs) |
| Accessori | |
|---|---|
| Accessori inclusi | Packing Box, Soft Carrying Case, Lens Tissue, Quick Start Guide |
| Accessori opzionali | Swing Arm #172, Swing Arm #37, Dual Bridge, Goggle Kit #2, Helmet Mount #4, Dovetail to Weaver Transfer Piece #21, ARMSAIGHT by FLIR Scope Adapter Mount #6, QRM - Quick Release Picatinny Mount Adapter #26/#142, Extended Rail Adapter #85, Universal Camera Adapter #45, Camera Adapter #46, Demist Shield #34, Sacrificial Window #30, Shutter Eye-Guard #82, 3x Afocal Lens Kit (for MNVD-51), 5x Afocal Lens (for MNVD-51), 3x Afocal Lens #22 (Nyx-14, Nyx-14-Pro, N-14, Nyx-7 Pro), 5x Afocal Lens (Nyx-14, Nyx-14-Pro, N-14, Nyx-7 Pro), IR850XLR Afocal Doubler, IR850-XLR Detachable LED Extra Long Range Infrared Illuminator, Mil-Standard Hard Shipping/Storage Case #101 |
