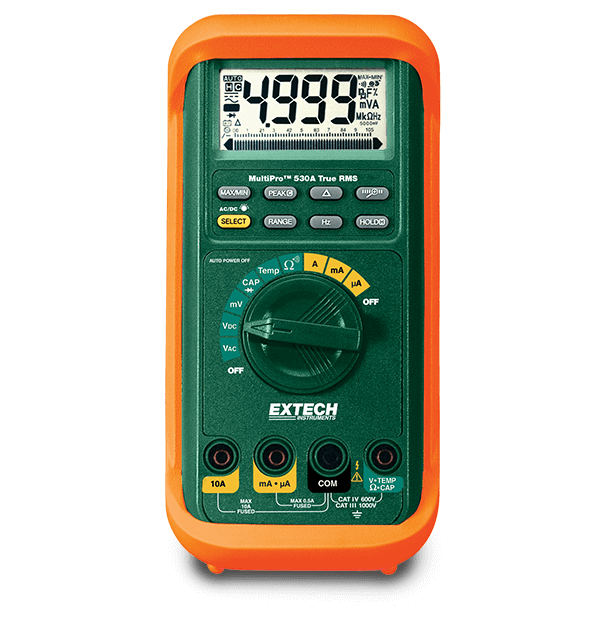

Extech MP530A
MultiPro® High-Performance MultiMeter
The Extech MP530A is a 5000 count, True RMS auto ranging Multimeter that measures AC/DC voltage and current, resistance, temperature, capacitance, and frequency with a 0.08% basic accuracy. Additional features include diode test, continuity check, auto power off, data hold, and low resistance auto lead zero, all on an easy to read, backlit display. Includes protective holster with built-in stand, test leads, Type K bead temperature probe, and 9 V battery.
Specifiche
| Specifiche generali | |
|---|---|
| Accuratezza di base corrente CA | ±(0.8% of reading + 4 digits) |
| Accuratezza di base corrente CC | ±(0.2% of reading + 4 digits) |
| Accuratezza di base frequenza | ±(0.01% of reading + 2 digits) |
| Accuratezza di base temperatura (tipo N) | 1 °F/ °C |
| Accuratezza di base tensione CA | ±(0.8% of reading + 3 digits) |
| Accuratezza di base tensione CC | ±(0.08% of reading + 2 digits) |
| Capacità | 50nF ,500nF, 5µF, 50µF, 500µF, 9999µF |
| Corrente AC | 500µA, 5000µA, 50mA, 500mA, 5A, 10A |
| Corrente DC | 500µA, 5000µA, 50mA, 500mA, 5A, 10A |
| Frequenza | 5Hz to 125kHz |
| Resistenza | 50Ω, 500Ω, 5kΩ, 50kΩ, 500kΩ, 5MΩ, 50MΩ |
| Risoluzione max capacità | 0.01nF |
| Risoluzione max corrente CA | 0.1µA |
| Risoluzione max corrente CC | 0.1µA |
| Risoluzione max frequenza | 0.001Hz |
| Risoluzione max resistenza | 0.01Ω |
| Risoluzione max temperatura (tipo K) | -58 to 1832 °F (-50 to 1000 °C ) |
| Risoluzione max tensione CA | 0.01mV |
| Risoluzione max tensione CC | 0.01mV |
| Temperatura (tipo N) | ±(0.3% of reading + 3 digits) |
| Tensione AC | 50mV, 500mV, 5V, 50V, 500V, 1000V |
| Tensione DC | 50mV, 500mV, 5V, 50V, 500V, 1000V |
| True RMS | Yes |
| Ulteriori dettagli | |
|---|---|
| Alimentazione | 1 × 9V battery |
| Categoria di sicurezza | CATIV - 600V |
| Certificazioni | CE, UL |
| Dimensioni | 7.32 × 3.42 × 1.39" (186 × 87 × 35.5mm) |
| Garanzia | 2 years |
| Peso | 0.75lb (340g) |
