Discontinued

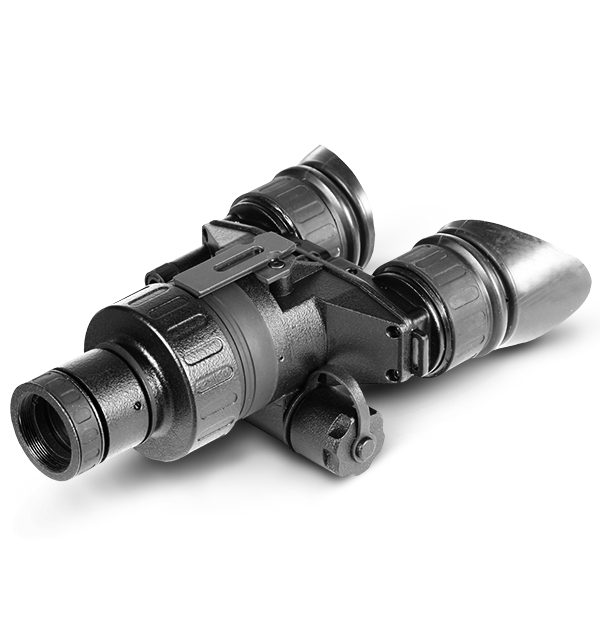

Nyx-7
Night Vision Goggles
The FLIR Nyx-7 bi-ocular goggle system offers clear and bright night vision in minimal light conditions. High-grade optics, intuitive electronics, and Gen 2+ image intensifier tubes offer reliable vision while head or helmet mounting options allow exceptional hands-free use. Available 3x or 5x magnification lenses and attachable high-powered IR illuminator add mid- to long-range viewing capability.
Reliable Vision in a Customizable System
Built-in IR illuminator and ruggedized weather-resistant housing maintain imaging performance in difficult conditions
Head and helmet mounting options, external illuminator, and available magnified lenses enhance user-customization.
Automatic brightness control and 60-hour battery life offer reliable and long-lasting night vision.
Specifiche
| Sensori e Ottiche | |
|---|---|
| Campo visivo | 40° |
| Conchiglia oculare [mm] | 16 mm |
| Controllo automatico luminosità | Yes |
| Cut_off luce intensa | Yes |
| Diametro pupilla uscita [mm] | 14 mm |
| Generazione IIT | Gen 2+ SD (Standard Definition) |
| Illuminatore infrarossi | Yes |
| Ingrandimento | 1x standard (3x, 5x optional) |
| Messa a fuoco | 0.25 m to Infinity |
| Ottica sistema | F/1.2; 24 mm |
| Regolazione diottrie | ±5 diopter |
| Risoluzione | 45-51 lp/mm |
| Tipo fotocatodo | Multi-Alkali |
| Ambientali e Certificazioni | |
|---|---|
| Temperatura di esercizio | -40°C to +50°C (-40°F to +122°F) |
| Temperatura di stoccaggio | -50°C to +70°C (-58°F to +158°F) |
| Alimentazione | |
|---|---|
| Alimentazione | CR123 Lithium 3V (1), or AA Alkaline 1.5V (1), or any AA or CR123 type rechargeable batteries with voltage from 1.2V to 3.7V (1) |
| Autonomia della batteria | Up to 60 hours |
| Indicatore batteria bassa | Yes (In FOV) |
| Spegnimento automatico | Yes |
| Memorizzazione di file e Comunicazione | |
|---|---|
| Controllo remoto | - |
| UI-UX | |
|---|---|
| Colore reticolo | - |
| Controllo guadagno manuale | No |
| Indicatore IR | Yes (In FOV) |
| Panoramica sistema | |
|---|---|
| Altezza del mirino Asse sopra la guida | - |
| Garanzia | 2 Years |
| Regolazione Deriva_Alzo | - |
| Tipo di reticolo | - |
| Fisiche | |
|---|---|
| Dimensioni (L x P x A) | 150 × 102 × 70 mm (5.9 × 4 × 2.8 in) |
| Montaggio su treppiede | - |
| Peso | 0.45 kg (0.9 lbs) |
| Accessori | |
|---|---|
| Accessori inclusi | One Lithium Battery CR123A, Soft carrying Case, Instruction Manual with Warranty Card, Goggle Kit #2, Battery adapter CR123A 3V / AA 1.5V, Lens Tissue, Packing Box |
| Accessori opzionali | ARFS3 - Advanced Range Finding Stadia for 3x Afocal Lens, PASGT Helmet Mount Assembly USA #108 with Adapter/Swing Arm #37 , MICH Helmet Mount Assembly USA #107 with Adapter/Swing Arm #37, ARFS5 - Advanced Range Finding Stadia for 5x Afocal Lens, 3x Afocal Lens Kit: Lens #22 with Adapter #23, Helmet Mount #183 (Shroud), Adapter #59, 5x Afocal Lens with Adapter #23, XLR-IR Afocal Doubler - Doubles the distance of XLR-IR850 IR beam, XLR-IR850 Detachable X-Long Range Infrared Illuminator w/Dovetail to Weaver Transfer Piece #21, Mil-Standard Hard Shipping/Storage Case #101, Helmet Mount #4 |
