Discontinued

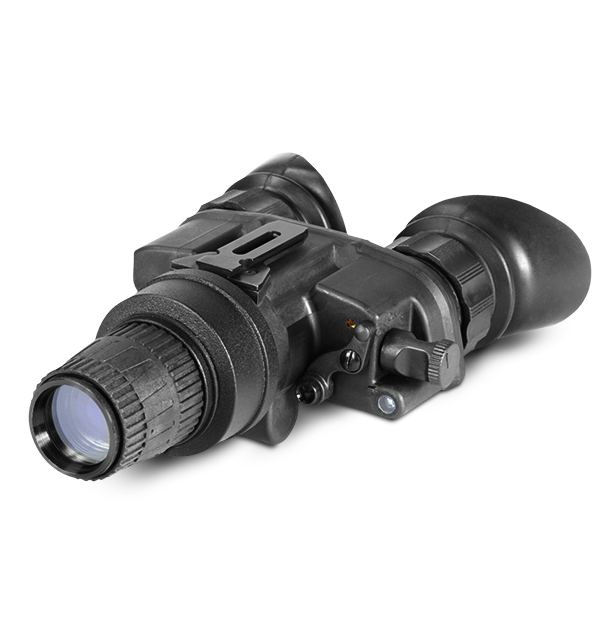

FLIR Nyx-7 Pro
Night Vision Goggles
The FLIR Nyx-7 Pro is an extremely rugged, compact bi-ocular night vision goggle system. High-grade optics and automatic brightness control provide clear nighttime images under the most trying conditions. Included flip-up head mount or optional universal helmet mount allow simple hands-free use while available 3x and 5x magnified lenses convert the Nyx-7 Pro to a long-range optic.
Exceptional Vision, Versatile Range Performance
Manual gain control knob and built-in IR illuminator amplify vision in tough weather and lighting conditions.
Available 3x and 5x magnified optical lenses convert head or helmet mounted goggles into a powerful long-range viewer.
Easy-to-operate controls, tough composite housing, and 60-hour battery life stand up to harsh conditions.
Specifiche
| Sensori e Ottiche | |
|---|---|
| Campo visivo | 40° |
| Conchiglia oculare [mm] | 15 mm |
| Controllo automatico luminosità | Yes |
| Cut_off luce intensa | Yes |
| Diametro pupilla uscita [mm] | 15 mm |
| Generazione IIT | Gen 2+ HD (High Definition) |
| Illuminatore infrarossi | Yes (built-in with pivotal flood lens) |
| Ingrandimento | 1x standard (3x, 5x optional) |
| Messa a fuoco | 0.25 m to Infinity |
| Ottica sistema | F/1.2; 27 mm |
| Regolazione diottrie | -6 to +2 dpt |
| Risoluzione | 55-72 lp/mm |
| Tipo fotocatodo | Multi-Alkali |
| Ambientali e Certificazioni | |
|---|---|
| Temperatura di esercizio | -40°C to +50°C (-40°F to +122°F) |
| Temperatura di stoccaggio | -50°C to +70°C (-58°F to +158°F) |
| Alimentazione | |
|---|---|
| Alimentazione | CR123 Lithium 3V (1), or AA Alkaline 1.5V (1), or any AA or CR123 type rechargeable batteries with voltage from 1.2V to 3.7V (1) |
| Autonomia della batteria | Up to 60 hours |
| Indicatore batteria bassa | Yes (In FOV) |
| Spegnimento automatico | Yes |
| Memorizzazione di file e Comunicazione | |
|---|---|
| Controllo remoto | - |
| UI-UX | |
|---|---|
| Colore reticolo | - |
| Controllo guadagno manuale | No |
| Indicatore IR | Yes (In FOV) |
| Panoramica sistema | |
|---|---|
| Altezza del mirino Asse sopra la guida | - |
| Garanzia | 2 Years |
| Regolazione Deriva_Alzo | - |
| Tipo di reticolo | - |
| Fisiche | |
|---|---|
| Dimensioni (L x P x A) | 204 × 127 × 61 mm (8.0 × 5.0 × 2.4 in) |
| Montaggio su treppiede | - |
| Peso | 0.49 kg (1.0 lbs) |
| Accessori | |
|---|---|
| Accessori inclusi | Packing Box, Instruction Manual with Warranty Card, Soft carrying Case, Battery, ARFS4 - Advanced Range Finding Stadia for 4x Lens, Battery adapter CR123A 3V / AA 1.5V, Lens Tissue, Goggle Kit #2 |
| Accessori opzionali | ARFS5 - Advanced Range Finding Stadia for 5x Afocal Lens, ARFS3 - Advanced Range Finding Stadia for 3x Afocal Lens, XLR-IR Afocal Doubler - Doubles the distance of XLR-IR850 IR beam, 3x Afocal Lens #22, 5x Afocal Lens, MICH Helmet Mount Assembly USA #107 with Adapter/Swing Arm #59, Helmet Mount #183 (Shroud), Adapter #59, PASGT Helmet Mount Assembly USA #108 with Adapter/Swing Arm #59, XLR-IR850 Detachable X-Long Range Infrared Illuminator w/Dovetail to Weaver Transfer Piece #21, Helmet Mount #4, Mil-Standard Hard Shipping/Storage Case #101 |
