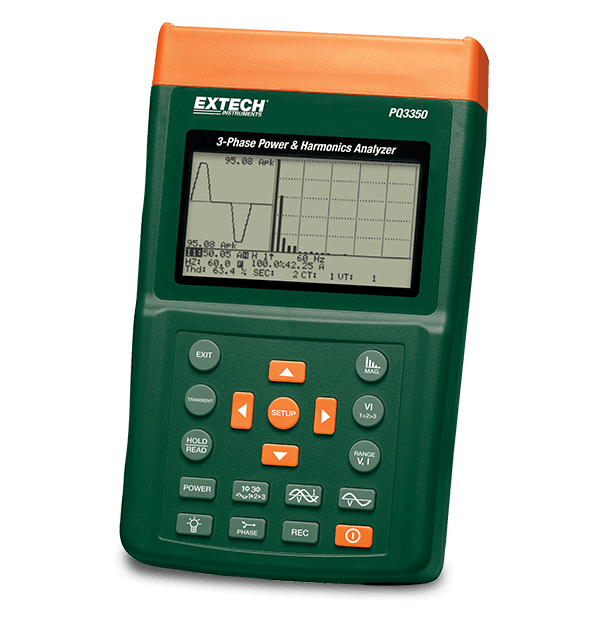

Extech PQ3350
3-Phase Power & Harmonics Analyzer
The Extech PQ3350 is a 3-Phase Power and Harmonics Analyzer made for single and 3-phase/3-wire or 3-phase/4-wire systems. The large, backlighting LCD displays up to 35 parameters in one screen. With the PQ3350, data log up to 52,428 single phase readings or 17,476 3-phase readings, and simultaniously display total harmonic distortion (THD-F) and waveform with peak values (1024 samples/period). Includes 4 voltage leads with alligator clips and retractable plunger clips, 8 AA batteries, universal AC adaptor, software, USB interface cable, and case. Current Probes sold separately.
Specifiche
| Specifiche generali | |
|---|---|
| Accuratezza di base armoniche | ±2% |
| Accuratezza di base corrente CA | ±(0.5% of reading + 5 digits) |
| Accuratezza di base di fase | ±1° |
| Accuratezza di base fattore di cresta | ±(5% of reading + 30 digits) |
| Accuratezza di base fattore di potenza | ±(1.5%° of reading ± 8 digits) |
| Accuratezza di base frequenza | 0.1Hz |
| Accuratezza di base picco corrente CA | ±(5% of reading + 30 digits) |
| Accuratezza di base picco tensione CA | ±(5% of reading + 30 digits) |
| Accuratezza di base potenza apparente | VA=Vrms x Arms |
| Accuratezza di base potenza attiva | ±(1% of reading + 8 digits) |
| Accuratezza di base potenza reattiva | VAR= sqr (VA² -W² ) |
| Accuratezza di base tensione CA | ±(0.5% of reading + 5 digits) |
| Armoniche | 1 to 99 |
| Corrente AC | up to 3000A (depends on the current clamp probes used) |
| Energia potenza attiva | 0mWh to 999,999kWh |
| Energia potenza reattiva | 0.0kVARh to 1000MWh |
| Fase | -180.0° to 0° to +180.0° |
| Fattore di cresta | 1.00 to 99.99 |
| Fattore potenza | 0.0 to +1.00 |
| Frequenza | 45-65Hz |
| Memoria | 52428 records (single phase); 17476 records (3 phase) |
| Potenza apparente | 9999kVA |
| Potenza attiva | 9.999MW |
| Potenza reattiva | 9999kVAR |
| Tensione AC | 600V |
| True RMS | Yes |
| Ulteriori dettagli | |
|---|---|
| Alimentazione | 8 × AA (1.5V) batteries |
| Categoria di sicurezza | CATIII - 600V |
| Certificazioni | CE |
| Dimensioni | 10.1 × 6.1 × 2.3" (257 × 155 × 57mm) |
| Garanzia | 2 years |
| Peso | 2.5 lbs (1160g) |
