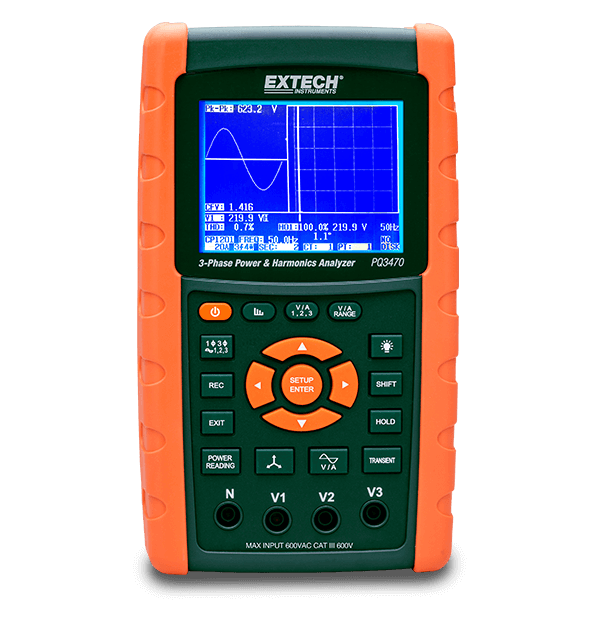

Extech PQ3470
3-Phase Graphical Power & Harmonics Analyzer/Datalogger
The Extech PQ3470 is a 3-phase Graphical Power and Harmonics Analyzer/Datalogger capable of logging up to 30,000 sets of measurements on a removable SD memory card. The meter features a 3-phase voltage or current unbalanced ratio (VUR, AUR) and unbalanced factor, a wide sampling rate range (2 seconds to 2 hours), and a built in clock and calendar. It is capable of capturing transient events such as dip, swell, and outage with programmable threshold (%). Complete with 4 voltage leads with alligator clips, 8 AA batteries, SD card, 100 V - 240 V AC adaptor, and a case. Clamp probes sold separately.
Specifiche
| Specifiche generali | |
|---|---|
| Accuratezza di base armoniche | ±2% (1 to 20); ±4% (21 to 31) |
| Accuratezza di base corrente CA | ±(0.5% of reading) |
| Accuratezza di base di fase | ±1° |
| Accuratezza di base energia potenza apparente | ±(2.0% of reading) |
| Accuratezza di base energia potenza attiva | ±(2.0% of reading) |
| Accuratezza di base energia potenza reattiva | ±(1.0% of reading) |
| Accuratezza di base fattore di cresta | ±(5%) |
| Accuratezza di base fattore di potenza | ±0.04 |
| Accuratezza di base frequenza | ±0.1Hz |
| Accuratezza di base intervallo in ingresso | ±(0.5% of reading) |
| Accuratezza di base picco corrente CA | ±(5%) |
| Accuratezza di base picco tensione CA | ±(5%) |
| Accuratezza di base potenza apparente | ±(1.0% of reading) |
| Accuratezza di base potenza attiva | ±(1.0% of reading) |
| Accuratezza di base potenza reattiva | ±(1.0% of reading) |
| Accuratezza di base tensione CA | ±(0.5% of reading) |
| Armoniche | 1 to 50th |
| Corrente AC | up to 3000A (depends on the current clamp probes used) |
| Energia potenza apparente | 0.0KVAh to 9.999MVAH |
| Energia potenza attiva | 0.0kWh to 9.999MWH |
| Energia potenza reattiva | 0.0kVARh to 9.999MVARH |
| Fase | -180 ° to +180° |
| Fattore di cresta | 1.00 to 99.99 |
| Fattore potenza | 0.00 to 1.00 |
| Frequenza | 45Hz to 65Hz |
| Memoria | 30,000 readings (2GB SD memory Card) |
| Potenza apparente | 9.999MVA |
| Potenza attiva | 9.999MW |
| Potenza reattiva | 9.999MVAR |
| Range ingresso | 200mV, 300mV, 500mV, 1V, 2V, 3V (user-selectable) |
| Tensione AC | 600.0V |
| True RMS | Yes |
| Ulteriori dettagli | |
|---|---|
| Alimentazione | 8 × AA (1.5V) batteries |
| Categoria di sicurezza | CATIII - 600V |
| Certificazioni | CE, UL |
| Dimensioni | 8.86 × 4.92 × 2.52" (225 × 125 × 64mm) |
| Garanzia | 2 years |
| Peso | 2.2lbs (1010g) |
