Discontinued

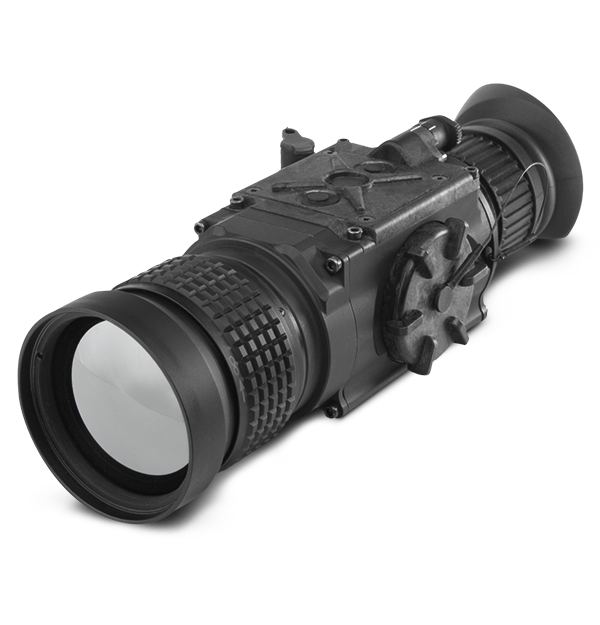

Prometheus
Thermal Imaging Monocular
The FLIR Prometheus combines a focusable 50 mm optical lens with the trusted performance of FLIR’s Tau™ 2 thermal imaging core. Designed for mid-range thermal surveillance and capable of refresh rates up to 60 Hz, the Prometheus offers dependable thermal imaging to maintain sightlines on moving objects of interest.
Thermal imaging provides unwavering vision in complete darkness and through glaring light, smoke, and haze.
Prometheus is equipped with a 50 mm manual focus lens to detect humans, animals, and objects from distance.
The feature-packed Prometheus offers a 4x digital zoom and multiple user-controlled color palettes.
Specifiche
| Highlighted | |
|---|---|
| Ingrandimento ottico | 3x |
| Campo visivo | 7.8° x 5.9° |
| Risoluzione display | 1280 x 960 |
| Sensori e Ottiche | |
|---|---|
| Campo visivo | 7.8° x 5.9° |
| Ingrandimento ottico | 3x |
| Messa a fuoco | 5 m to infinity |
| Ottica sistema | 50 mm; F/1.0 |
| Range regolazione diottrie | -5 to +5 dpt |
| Regolazione diottrie | Yes |
| Risoluzione | 336 x 256 |
| Tipo sensore | 17µm microbolometer |
| Ambientali e Certificazioni | |
|---|---|
| Temperatura di esercizio | -40°C to +50°C (-40°F to +122°F) |
| Alimentazione | |
|---|---|
| Autonomia della batteria | Up to 4 hrs. at 20C° |
| Batteria | Two CR123A 3V Lithium batteries or CR123 type rechargeable batteries with voltage from 3.0V to 3.7V (2) |
| Memorizzazione di file e Comunicazione | |
|---|---|
| Uscita video | PAL (768×574 pixels)/ NTSC (640×480 pixels) |
| UI-UX | |
|---|---|
| Display | Quad-VGA |
| Interruttore d'esercizio | On/ Off/ Standby Mode |
| Refresh Rate video | 30 Hz |
| Risoluzione display | 1280 x 960 |
| Tasti del pannello di controllo | Configures Operational Settings: •Display Brightness Control •Image Palette Control • Digital Zoom Control •On-Screen Menu Navigation |
| Panoramica sistema | |
|---|---|
| Peso [compresa ottica] | 0.55 kg (1.2 lbs.) |
| Tavolozze colori | White Hot, Black Hot, Fusion, Rainbow, Globow, Ironbow1, Ironbow2, Sepia, Color1, Color2, Ice-Fire, Rain, and OEM |
| Zoom digitale | 2x, 4x |
