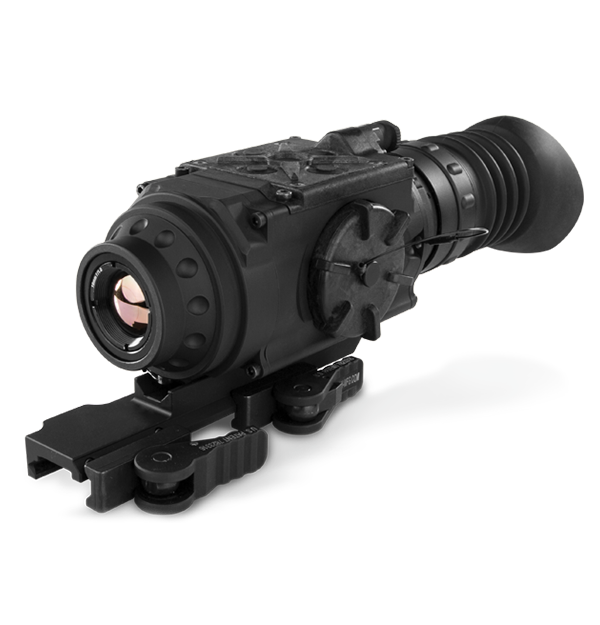

FLIR ThermoSight® PRO PTS233

Thermal Imaging Weapon Sight

Powered by the breakthrough FLIR Boson core, the ThermoSight Pro Series® PTS233 weapon sight sets the standard for thermal detection and classification. Featuring a 12 µm pixel pitch sensor and 19mm lens, the PTS233 delivers brilliant, clean thermal imaging with a 12° × 9.5° field of view for greater precision. The entire ThermoSight Pro Series offers an uncompressed video signal, a high definition display, and shot-activated video recording.

Industry-leading Thermal Detection

The FLIR ThermoSight ® PTS233 Pro Series thermal core creates stunning imagery for better detection and classification day or night.

The FLIR ThermoSight® Pro Series has a rugged aluminum alloy that can withstand drops in the field.

Capture the moment with recoil-activated video recording and image capture, using multiple palettes and reticle patterns.

Specifiche

Highlighted
Ingrandimento ottico	1.5x
Campo visivo	12° x 9.5°

Sensori e Ottiche
Campo visivo	12° x 9.5°
Conchiglia oculare	45 mm
Core	FLIR 12µm BOSON
Elaborazione immagine	FLIR Proprietary Digital Detail Enhancement™
Ingrandimento ottico	1.5x
Messa a fuoco	10m to infinity (not focusable)
Ottica sistema	19 mm; F/1.0
Range regolazione diottrie	-5 to +5 dpt
Tipo di regolazione della collimazione	Digitally Controlled
Tipo sensore	320 x 256 VOx Microbolometer

Ambientali e Certificazioni
Temperatura di esercizio	-20°C to +50°C (-4°F to +122°F)
Temperatura di stoccaggio	-40°C to +60°C (-40°F to +140°F)

Alimentazione
Alimentazione esterna	Through USB-C port (5Vdc)
Autonomia batteria (in funzione)	Up to 4 hr
Tipo batteria	2 CR123A 3V Lithium batteries

Memorizzazione di file e Comunicazione
Memoria interna	Up to 2.5 hours of recorded video or up to 1,000 pictures
USB - Connettore C	Digital Video Out, Laser Range Finder Connections
Uscita video	Digital Video

UI-UX
Colori Reticolo	Black, White, Red, and Cyan
Display	Quad-VGA (1280 x 960) FLCOS
Interruttore d'esercizio	On/ Off/ Standby Mode
Polarità	White Hot, Black Hot, Rainbow High Contrast, Ironbow, Sepia, Arctic, Outdoor Alert
Refresh Rate video	60 Hz
Tasti del pannello di controllo	Configures Operational Settings: Display Brightness Control Image Palette Control Digital Zoom Control Reticle Color Control Reticle Pattern Control Boresighting Adjustment On-Screen Menu Navigation

Panoramica sistema
Altezza del mirino Asse sopra la guida	1.65 in (42 mm)
Dimensioni (L × P × A)	8.7" × 2.7" × 3.3" (220 x 68 x 84 mm)
La confezione comprende	Thermal Weapon Sight, CR123A Battery (2), Battery Cassette, Spare Battery Cassette, USB to USB Type C Cable (3'), Lens Cloth, Quick Start Guide, and Hard Carrying Case
Tipo di reticolo	Dot 4 MOA, Line Dot, Cross Center Dot, Cross, Crosshair, Crossdash, and "No Reticle"
Tipo montaggio arma	Picatinny, MIL-STD 1913, and Weaver Rails
Zoom	1×, 2×, 4×
Zoom digitale	2x, 4x
