Discontinued

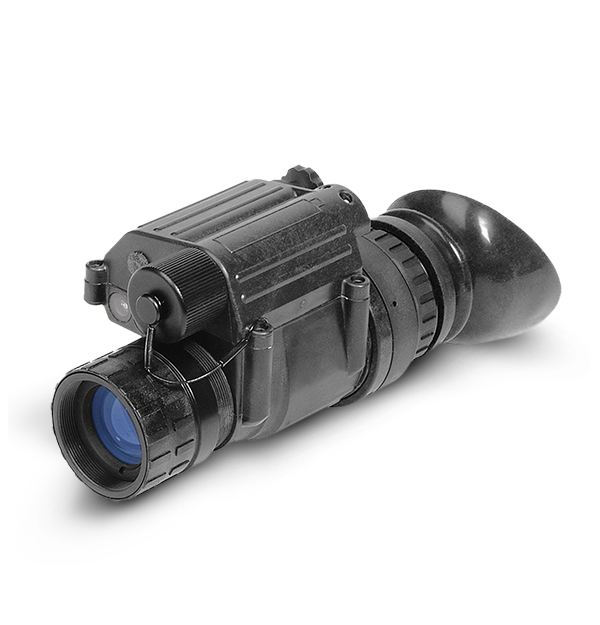

FLIR PVS-14

40° Night Vision Monocular

Built on the framework of United States Military-commissioned AN/PVS-14 night vision units, the FLIR PVS-14 offers enhanced tactical awareness in a classic, battle-tested design. Flexible mounting options and adjustable gain control in a rugged, compact housing showcase why the PVS-14 remains a favorite among military and law enforcement professionals.

The Battle-Tested Standard in Night Vision

The AN/PVS-14 multi-purpose monocular has long been a staple for US military and law enforcement professionals.

Onboard manual gain control and IR illuminator maintain tactical awareness in minimal light conditions.

Head and helmet mounting capability allow simple hands-free use.

Specifiche

Highlighted
Temperatura di esercizio	-51°C to +49°C (-59°F to +120°F)

Sensori e Ottiche
Campo visivo	40°
Conchiglia oculare [mm]	-
Controllo automatico luminosità	Yes
Cut_off luce intensa	Yes
Diametro pupilla uscita [mm]	-
Generazione IIT	Gen 3 Bravo MG
Illuminatore infrarossi	Yes (built-in with flood lens)
Ingrandimento	1x
Messa a fuoco	0.25 m to Infinity
Ottica sistema	F/1.2; 26 mm
Regolazione diottrie	-6 to +4 dpt
Risoluzione	57-64 lp/mm
Tipo fotocatodo	GaAs

Ambientali e Certificazioni
Temperatura di esercizio	-51°C to +49°C (-59°F to +120°F)
Temperatura di stoccaggio	-51°C to +85°C (-22°F to +185°F)

Alimentazione
Alimentazione	One AA battery
Autonomia della batteria	Up to 50 hours
Indicatore batteria bassa	Yes (In FOV)
Spegnimento automatico	Yes

Memorizzazione di file e Comunicazione
Controllo remoto	-

UI-UX
Colore reticolo	-
Controllo guadagno manuale	Yes
Indicatore IR	Yes (In FOV)

Panoramica sistema
Altezza del mirino Asse sopra la guida	-
Garanzia	2 Years
Regolazione Deriva_Alzo	-
Tipo di reticolo	-

Fisiche
Dimensioni (L x P x A)	114 × 51 × 57 mm (4.5 × 2 × 2.25 in)
Montaggio su treppiede	-
Peso	0.35 kg (0.77 lbs)

Accessori
Accessori inclusi	Brow Pads, Helmet/Head Mount Adapter, Head Mount Assembly, Instruction Manual with Warranty Card, Soft carrying Case, Shoulder Strap, Demist Shields, Packing Box, Tethering Cord, 1x AA Batteries, Day Light Filter, Lens Tissue, Sacrificial Window
Accessori opzionali	Weapons Mount #109 (PVS14/6015), XLR-IR Afocal Doubler - Doubles the distance of XLR-IR850 IR beam, 5x Afocal Magnifier Lens #100, 3x Afocal Magnifier Lens #99, PASGT Helmet Mount Assembly USA #108, ARFS3 - Advanced Range Finding Stadia for 3x Afocal Lens, ARFS5 - Advanced Range Finding Stadia for 5x Afocal Lens, AIM-PRO-L Kit: AIM-PRO-L with Adapter Ring #62, XLR-IR850 Detachable X-Long Range Infrared Illuminator, AIM-PRO Kit: AIM-PRO with Adapter Ring #62, 5x Afocal Lens with Adapter #24/#25, 3x Afocal Lens #22 with Adapter #24/#25, MICH Helmet Mount Assembly USA #107, Extended Rail Adapter #85, Mil-Standard Hard Shipping/Storage Case #101

Accessori

Accessori inclusi

Brow Pads, Helmet/Head Mount Adapter, Head Mount Assembly, Instruction Manual with Warranty Card, Soft carrying Case, Shoulder Strap, Demist Shields, Packing Box, Tethering Cord, 1x AA Batteries, Day Light Filter, Lens Tissue, Sacrificial Window

Accessori opzionali

Weapons Mount #109 (PVS14/6015), XLR-IR Afocal Doubler - Doubles the distance of XLR-IR850 IR beam, 5x Afocal Magnifier Lens #100, 3x Afocal Magnifier Lens #99, PASGT Helmet Mount Assembly USA #108, ARFS3 - Advanced Range Finding Stadia for 3x Afocal Lens, ARFS5 - Advanced Range Finding Stadia for 5x Afocal Lens, AIM-PRO-L Kit: AIM-PRO-L with Adapter Ring #62, XLR-IR850 Detachable X-Long Range Infrared Illuminator, AIM-PRO Kit: AIM-PRO with Adapter Ring #62, 5x Afocal Lens with Adapter #24/#25, 3x Afocal Lens #22 with Adapter #24/#25, MICH Helmet Mount Assembly USA #107, Extended Rail Adapter #85, Mil-Standard Hard Shipping/Storage Case #101
