Discontinued

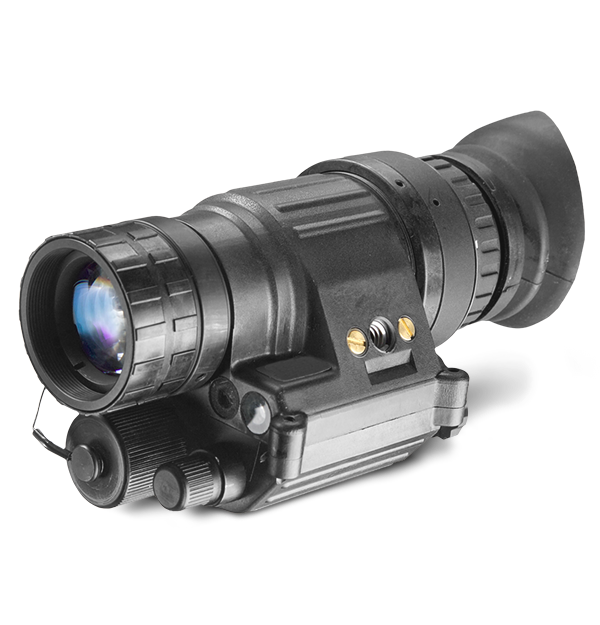

FLIR PVS-14-51

51° Night Vision Monocular

The FLIR PVS-14-51 single-tube night vision system brings a wide 51-degree field of view to the tough, military-trusted AN/PVS-14 housing. Head and helmet mounting promote hands-free operation while a maximized field of view enhances awareness and minimizes necessary movement. Built-in IR illuminator allows clear, covert vision in complete darkness.

Wide-Angle Advantage Meets Battle-Tested Design

51-degree lens provides a 28% increase in scene size over comparable 40-degree models.

Compact AN/PVS-14 housing is a trusted, longstanding night vision favorite of US military and law enforcement professionals.

Maintain a tactical advantage in the toughest lighting conditions with built-in IR illuminator and manual gain control.

Specifiche

Highlighted
Temperatura di esercizio	-40°C to +50°C (-40°F to +122°F)

Sensori e Ottiche
Campo visivo	51°
Conchiglia oculare [mm]	-
Controllo automatico luminosità	No
Cut_off luce intensa	Yes
Diametro pupilla uscita [mm]	-
Generazione IIT	GEN 2+ HD (High Definition) MG
Illuminatore infrarossi	Yes (built-in with pivotal flood lens)
Ingrandimento	1x standard (3x, 5x optional)
Messa a fuoco	0.25 m to Infinity
Ottica sistema	F/1.26; 19mm
Regolazione diottrie	-6 to +4 dpt
Risoluzione	-
Tipo fotocatodo	Multi-Alkali

Ambientali e Certificazioni
Temperatura di esercizio	-40°C to +50°C (-40°F to +122°F)
Temperatura di stoccaggio	-50°C to +50°C (-58°F to +122°F)

Alimentazione
Alimentazione	One AA battery
Autonomia della batteria	Up to 50 hours
Indicatore batteria bassa	Yes (In FOV)
Spegnimento automatico	Yes

Memorizzazione di file e Comunicazione
Controllo remoto	-

UI-UX
Colore reticolo	-
Controllo guadagno manuale	Yes
Indicatore IR	Yes (In FOV)

Panoramica sistema
Altezza del mirino Asse sopra la guida	-
Garanzia	2 Years
Regolazione Deriva_Alzo	-
Tipo di reticolo	-

Fisiche
Dimensioni (L x P x A)	158 × 51 × 60 mm (6.2 × 2.0 × 2.4 in)
Montaggio su treppiede	-
Peso	0.32 kg (0.7 lbs)

Accessori
Accessori inclusi	Packing Box, Soft Carrying Case, Lens Tissue, Instruction Manual with Warranty Card, Day Light Filter, Sacrificial Window, Demist Shields, Shoulder Strap, Tethering Cord, Helmet/Head Mount Adapter, Head Mount Assembly, Brow Pads.
Accessori opzionali	MICH Helmet Mount Assembly USA #107 (PVS-7, PVS-14), PASGT Helmet Mount Assembly USA #108 (PVS-7, PVS-14), Weapons Mount #109 (PVS14/6015), Extended Rail Adapter #85, ARFS3 - Advanced Range Finding Stadia for 3x Afocal Lens, ARFS5 - Advanced Range Finding Stadia for 5x Afocal Lens, 3x Afocal Magnifier Lens #99, 5x Afocal Magnifier Lens #100, 3x Afocal Lens #22 with Adapter #24/#25 (PVS-7, PVS-14), 5x Afocal Lens with Adapter #24/#25 (PVS-7, PVS-14), IR850XLR Afocal Doubler, IR850-XLR Detachable LED Extra Long Range Infrared Illuminator, Mil-Standard Hard Shipping/Storage Case #101

Accessori

Accessori inclusi

Packing Box, Soft Carrying Case, Lens Tissue, Instruction Manual with Warranty Card, Day Light Filter, Sacrificial Window, Demist Shields, Shoulder Strap, Tethering Cord, Helmet/Head Mount Adapter, Head Mount Assembly, Brow Pads.

Accessori opzionali

MICH Helmet Mount Assembly USA #107 (PVS-7, PVS-14), PASGT Helmet Mount Assembly USA #108 (PVS-7, PVS-14), Weapons Mount #109 (PVS14/6015), Extended Rail Adapter #85, ARFS3 - Advanced Range Finding Stadia for 3x Afocal Lens, ARFS5 - Advanced Range Finding Stadia for 5x Afocal Lens, 3x Afocal Magnifier Lens #99, 5x Afocal Magnifier Lens #100, 3x Afocal Lens #22 with Adapter #24/#25 (PVS-7, PVS-14), 5x Afocal Lens with Adapter #24/#25 (PVS-7, PVS-14), IR850XLR Afocal Doubler, IR850-XLR Detachable LED Extra Long Range Infrared Illuminator, Mil-Standard Hard Shipping/Storage Case #101
