Discontinued

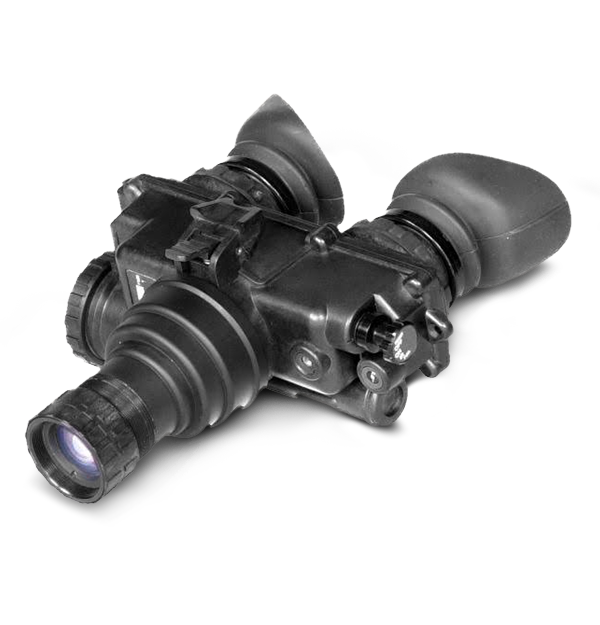

FLIR PVS-7

Night Vision Goggles

Built on the framework of United States Military-commissioned AN/PVS-7 night vision goggles, the FLIR PVS-7 offers enhanced awareness in a classic, battle-tested design. Automatic brightness control, built-in IR illuminator, and an excessive-light cutoff help maintain a tactical advantage in any lighting condition. Flexible mounting options and a rugged composite housing make the PVS-7 a night vision favorite among military and law enforcement professionals.

Dynamic Night Vision in a Classic Design

Head or helmet mounting support hands-free use while flip up/power down display controls allow covert sight adjustments.

Automatic brightness control, onboard IR illuminator, and rugged housing maintain superior vision in the toughest conditions.

Available 3x and 5x magnification lenses convert mounted goggle to handheld long-range night vision viewer.

Specifiche

Sensori e Ottiche
Campo visivo	40°
Conchiglia oculare [mm]	-
Controllo automatico luminosità	Yes
Cut_off luce intensa	Yes
Diametro pupilla uscita [mm]	-
Generazione IIT	Gen 2+ HD (High Definition)
Illuminatore infrarossi	Yes (built-in , with detachable flood lens)
Ingrandimento	1x
Messa a fuoco	0.25 m to Infinity
Ottica sistema	F/1.2; 26 mm
Regolazione diottrie	-6 to +2 dpt
Risoluzione	55-72 lp/mm
Tipo fotocatodo	Multi-Alkali

Ambientali e Certificazioni
Temperatura di esercizio	-40°C to +50°C (-40°F to +122°F)
Temperatura di stoccaggio	-50°C to +70°C (-58°F to +158°F)

Alimentazione
Alimentazione	2x AA 1.5V or 1x BA-5567/U Lithium (3V)
Autonomia della batteria	Up to 40 hours
Indicatore batteria bassa	Yes (In FOV)
Spegnimento automatico	Yes

Memorizzazione di file e Comunicazione
Controllo remoto	-

UI-UX
Colore reticolo	-
Controllo guadagno manuale	No
Indicatore IR	Yes (In FOV)

Panoramica sistema
Altezza del mirino Asse sopra la guida	-
Garanzia	2 Years
Regolazione Deriva_Alzo	-
Tipo di reticolo	-

Fisiche
Dimensioni (L x P x A)	200 x 152 x 90 mm (7.9 x 6.0 x 3.5 in)
Montaggio su treppiede	-
Peso	0.68 kg (1.5 lbs)

Accessori
Accessori inclusi	Packing Box, 2x AA-batteries, Neck Lenyard, Instruction Manual with Warranty Card, Soft carrying Case, Head Mount Assembly, Brow Pads, Demist Shields, Sacrificial Window, Shoulder Strap, Lens Tissue
Accessori opzionali	5x Afocal Magnifier Lens #100, 3x Afocal Magnifier Lens #99, PASGT Helmet Mount Assembly USA #108, MICH Helmet Mount Assembly USA #107, XLR-IR Afocal Doubler - Doubles the distance of XLR-IR850 IR beam, ARFS3 - Advanced Range Finding Stadia for 3x Afocal Lens, XLR-IR850 Detachable X-Long Range Infrared Illuminator, 5x Afocal Lens with Adapter #24/#25, 3x Afocal Lens #22 with Adapter #24/#25, ARFS5 - Advanced Range Finding Stadia for 5x Afocal Lens, Mil-Standard Hard Shipping/Storage Case #101

Accessori

Accessori inclusi

Packing Box, 2x AA-batteries, Neck Lenyard, Instruction Manual with Warranty Card, Soft carrying Case, Head Mount Assembly, Brow Pads, Demist Shields, Sacrificial Window, Shoulder Strap, Lens Tissue

Accessori opzionali

5x Afocal Magnifier Lens #100, 3x Afocal Magnifier Lens #99, PASGT Helmet Mount Assembly USA #108, MICH Helmet Mount Assembly USA #107, XLR-IR Afocal Doubler - Doubles the distance of XLR-IR850 IR beam, ARFS3 - Advanced Range Finding Stadia for 3x Afocal Lens, XLR-IR850 Detachable X-Long Range Infrared Illuminator, 5x Afocal Lens with Adapter #24/#25, 3x Afocal Lens #22 with Adapter #24/#25, ARFS5 - Advanced Range Finding Stadia for 5x Afocal Lens, Mil-Standard Hard Shipping/Storage Case #101
