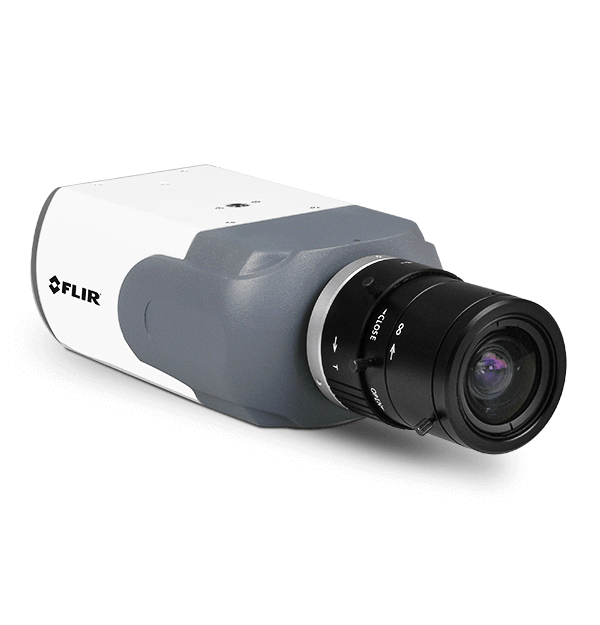

Quasar 1080p Fixed
Highest Quality. Lowest Bandwidth. Predictable Storage.
Quasar’s high performance broadcast video quality in an HD 1080p fixed camera guarantees frame rates in high motion, complex and low-light scenes found in city surveillance applications, airports, terminals, critical infrastructure sites, campuses and commercial installations.
Specifiche
| Sicurezza informatica | |
|---|---|
| Sicurezza | User account and password protection |
| Generali | |
|---|---|
| AES | 1.0 to 1 / 10,000 (auto) |
| Aggiornamento firmware | Flash memory for upgrade of camera firmware over the network (1GB Flash / 2GB RAM) |
| Maschere privacy | On / Off - 5 zones |
| Modalità di scansione | Progressive |
| Modalità giorno/notte | Smart IR / auto / on / off |
| Riduzione rumore 3D | On / Off - 6 levels |
| Rilevazione manomissione | On / Off |
| Misurazioni e analisi | |
|---|---|
| Controllo automatico del guadagno | Auto |
| Integrazione di sistema | |
|---|---|
| Audio bidirezionale | Full duplex, line / mic in and line out, G.711, G.726 |
| Configurazione | Remote: via web access or supported video management software |
| Connessioni audio | 3.5 mm audio jacks |
| Ethernet | 10 / 100 Base-T auto sensing, half / full duplex (RJ45) |
| Protocollo di rete | IPv4/v6, TCP/IP, UDP Unicast / Multicast, RTP, RTSP, HTTP, HTTPS, ICMP, FTP, SMTP, DHCP, PPPoE, UPnP, IGMP, SNMP, SNTP, QoS, ONVIF Profile S, IEEE 802.1X |
| Videocamera | |
|---|---|
| Ampia gamma dinamica | On / Off - 3 levels |
| Bilanciamento del bianco | Auto / indoor / outdoor |
| Compressione del controluce | On / Off |
| Controllo diaframma | DC auto |
| DSS | 1/1 to 1/25 or 1/30 with up to 32x sensitivity boost in color or night mode |
| Filtro IR meccanico | Yes |
| Rapporto segnale/rumore | ≥50 dB |
| Risoluzione del sensore | 1920 x 1080 |
| Sensibilità | Color: 0.1 Lux @ f1.4 / Night Mode: 0.03 Lux @ F1.4 at 30 IRE |
| Sensore immagine | 1/2.7" HD 1080 CMOS |
| Video e Registrazione | |
|---|---|
| Compressione video | Fully compliant multi-stream H.264 main profile + MJPEG |
| Controllo del tasso | CBR/VBR |
| Prestazioni massime | H.264 30/25 FPS @ HD1080 + 30/25 FPS @ D1 or 30+30 / 25+25 @ HD720 |
| Registrazione scheda SD | SDHC up to 32GByte |
| Rilevazione movimento video | On / Off - 10 zones |
| Risoluzione Range | Scalable from CIF to HD1080 (1920x1080) |
| Video Larghezza di banda | Configurable between 64Kbps and 8Mbps |
