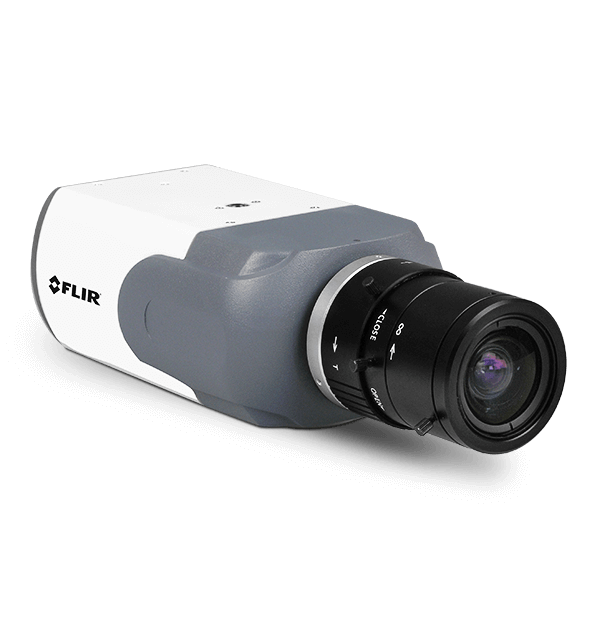

Quasar 5MP Fixed
Highest Quality. Lowest Bandwidth. Predictable Storage.
The Quasar CF-4251 series of HD 1440p / 5MP cameras is a best in class broadcast video quality camera that guarantees frame rates in high motion, complex and low light scenes, at the lowest bit rates.
Specifiche
| Conformità e Certificazioni | |
|---|---|
| Internazionale | CE marked, EN55022-1998 class A, EN55024 |
| USA | UL, FCC Part 15 (subpart B, class A) |
| Sicurezza informatica | |
|---|---|
| Sicurezza | User account and password protection |
| Ambientali | |
|---|---|
| Temperatura di esercizio | Indoor: 0° to 50° C (32° to 122° F) Outdoor installation requires optional environmental housing (-30° to 50° C when used with CF-X200-01) |
| Temperatura di stoccaggio | -20° to 70° C (-4° to 158° F) |
| Umidità | 95% (non-condensing) |
| Generali | |
|---|---|
| AES | 1.0 to 1 / 10,000 (auto) |
| Aggiornamento firmware | Flash memory for upgrade of camera firmware over the network (1GB Flash / 2GB RAM |
| Alloggiamento | Metal case with 1/4 in. UNC-20 screw mounts on top and bottom |
| Assorbimento | 6W |
| Connettore alimentazione | 12 VDC / 24 VAC terminal block |
| Dimensioni | 115 L x 82 W x 52 H mm (without lens) |
| Garanzia | According to DVTEL RMA Policy and Process Notice document |
| Maschere privacy | On / Off - 5 zones |
| Modalità di scansione | Progressive |
| Modalità giorno/notte | Smart IR / auto / on/of |
| Peso | 398 g (14 oz.) |
| Riduzione rumore 3D | On / Off - 6 levels |
| Rilevazione manomissione | On / Of |
| Tensione di alimentazione | 12 VDC / 24 VAC ±10% or 802.3af PoE |
| Misurazioni e analisi | |
|---|---|
| Controllo automatico del guadagno | Auto |
| Integrazione di sistema | |
|---|---|
| Audio bidirezionale | Full duplex, line / mic in and line out, G.711, G.726 |
| Browser web supportati | Internet Explorer 8+ |
| Configurazione | Remote: via web access or supported video management software |
| Connessioni audio | 3.5 mm audio jacks |
| Ethernet | 10 / 100 Base-T auto sensing, half / full duplex (RJ45) |
| Ingresso allarme | 1 dry alarm contact |
| Protocollo di rete | IPv4/v6, TCP/IP, UDP Unicast / Multicast, RTP, RTSP, HTTP, HTTPS, ICMP, FTP, SMTP, DHCP, PPPoE, UPnP, IGMP, SNMP, SNTP, QoS, ONVIF Profile S, IEEE 802.1X |
| Uscita allarme | 1 relay contact, 60V AC / DC at 130 mA maximum |
| Videocamera | |
|---|---|
| Ampia gamma dinamica | On / Off - 3 levels |
| Bilanciamento del bianco | Auto / indoor / outdoor |
| Compressione del controluce | On / Of |
| Controllo diaframma | DC auto |
| DSS | 1/1 to 1/25 or 1/30 with up to 32x sensitivity boost in color or night mode |
| Filtro IR meccanico | Yes |
| Rapporto segnale/rumore | ≥50 dB |
| Risoluzione del sensore | 2592 x 1944 |
| Sensibilità | Color: 0.1 Lux @ f1.4 / Night Mode: 0.03 Lux @ F1.4 at 30 IRE |
| Sensore immagine | 1/2.5" CMOS |
| Video e Registrazione | |
|---|---|
| Compressione video | Fully compliant multi-stream H.264 main profile + MJPEG |
| Controllo del tasso | CBR/VBR |
| Prestazioni massime | H.264 15/12 FPS @ HD 1440p (NTSC/PAL) or H.264 12/12 FPS @ 5MP (NTSC/PAL) |
| Registrazione scheda SD | SDHC up to 64GB |
| Rilevazione movimento video | On / Off - 10 zones |
| Risoluzione Range | Scalable from CIF to HD 1440p / 5MP |
| Video Larghezza di banda | Configurable between 64Kbps and 8Mbps |
