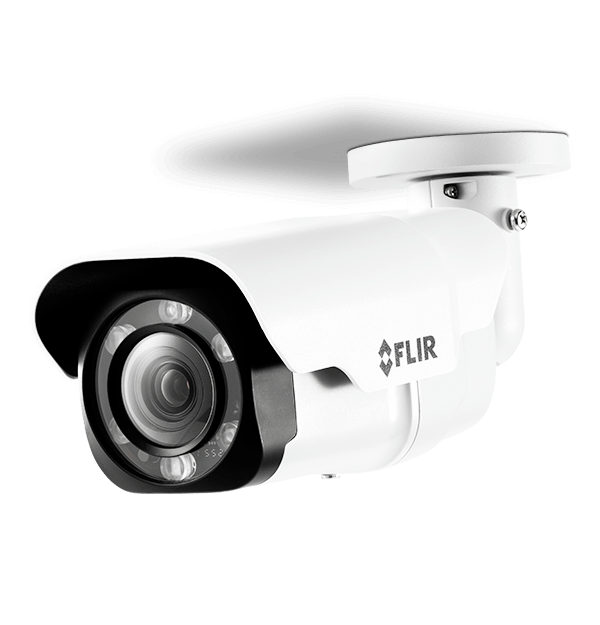

Quasar Quad HD Bullet
Quad HD Bullet
The Quasar Quad HD Bullet camera brings together the most advanced technologies for best-in-class broadcast quality. With Quad HD resolution and multi-shutter WDR, the Quasar Quad HD sWDR camera represents a breakthrough in resolution performance.These models offer 76 percent more detail than HD1080, with the same forensic zoom as legacy 5MP cameras. The Quad HD sWDR camera also delivers predictable storage, lower utility costs, and reducedTotal Cost of Ownership (TCO).
Specifiche
| Conformità e Certificazioni | |
|---|---|
| Internazionale | CE (EN55022-1998 Class A; EN50130-4; EN60950; RoHS) |
| USA | FCC 47 CFR Part 15, Subpart B, Class A; UL 60950 |
| Sicurezza informatica | |
|---|---|
| Sicurezza | User account with password protection and IP filter |
| Ambientali | |
|---|---|
| Temperatura di esercizio3 | -40° to 50° C (-40° to 122° F) |
| Temperatura di stoccaggio | -20° to 70° C (-4° to 158° F) |
| Umidità | 95% (non-condensing) |
| Generali | |
|---|---|
| AES | 1.0 to 1 / 10,000 (auto) |
| Aggiornamento firmware | Flash memory for upgrade of camera firmware over the network (1GB Flash / 8GB RAM) |
| Alloggiamento | Indoor/Outdoor: IK10 rated vandal IP66 |
| Assorbimento | 6W indoor or 13W outdoors with heater / IR |
| Connettore alimentazione | AC / DC terminal block or PoE |
| Dimensioni | 218 x 99 mm (8.59 x 3.89 in.) |
| Garanzia | According to FLIR RMA Policy and Process Notice |
| Maschere privacy | On / Off - 5 zones |
| Modalità di scansione | Progressive |
| Modalità giorno/notte | Smart / Auto / On / Off |
| Peso | 0.98 Kg (2.16 lbs.) |
| Rilevazione manomissione | On / Off / schedule |
| Tensione di alimentazione | 12 VDC / 24 VAC ±10% or 802.3af PoE (Class 0) |
| Misurazioni e analisi | |
|---|---|
| Controllo automatico del guadagno | Auto |
| PTZ | |
|---|---|
| Rotazione pan/tilt | 360, ±90° and 360 |
| Integrazione di sistema | |
|---|---|
| Angolo di illuminazione | Full 60° |
| Audio bidirezionale | Full duplex, line in and line out, G.711, G.726 |
| Browser web supportati | Internet Explorer 9+ |
| Configurazione remota | via web browser or supported video management software |
| Connessioni audio | Terminal block |
| Distanza IR | up to 40 m (131 ft.) |
| Ethernet | 10/100/1000 Ethernet, auto sensing, half/full duplex (RJ45) |
| Ingresso allarme | 1 dry alarm contact |
| Lunghezza d’onda del picco emissione [nm] | 850.0 |
| N. LED IR | 6 high power / high efficiency SMD type |
| Protocollo di rete | IPv4/v6, TCP/IP, UDP Unicast / Multicast, RTP, RTSP, HTTP, HTTPS, ICMP, FTP, SMTP, DHCP, PPPoE, UPnP, IGMP, SNMP, SNTP, QoS, ONVIF Profile S, IEEE 802.1X |
| Uscita allarme | 1 relay contact, 300V AC / DC at 130 mA maximum |
| Videocamera | |
|---|---|
| Ampia gamma dinamica | 2-shutter (93dB) / On / Off |
| Bilanciamento del bianco | Auto / indoor / outdoor / ATW / manual |
| Compressione del controluce | On / Off |
| Controllo diaframma | P-iris |
| DSS | 1/1 to 1/25 or 1/30 with up to 32x sensitivity boost in color or night mode |
| Filtro IR meccanico | Yes |
| Rapporto segnale/rumore | ±50 dB |
| Riduzione rumore | 2D / 3D / Color |
| Risoluzione del sensore | 2688 x 1520 |
| Sensibilità | 0.3 (color)/0.04 (BW), 0 Lux with IR illuminator ON, measured with DSS OFF at 30 IRE |
| Sensore immagine | 1/3° BSI CMOS |
| Tipo ottica | CB-6204-11-I: Varifocal 3-8mm, 96°-38° HFOV, F1.4 CB-6204-21-I: Varifocal 7-22mm, 42°-14° HFOV, F1.4 Motorized with auto-focus, Auto-Iris/P-Iris, D/N |
| Video e Registrazione | |
|---|---|
| Compressione video | Fully compliant multi-stream H.264 main/high/SVC/baseline profile + MJPEG (FHD) |
| Controllo del tasso | CBR/VBR |
| Prestazioni massime | H.264 30/25 FPS @ 1440p + D1 (NTSC/ PAL) or H.264 15/12 FPS @ 1440p + 720p + D1 (NTSC/PAL) |
| Registrazione scheda SD | microSDXC up to 128GB (Class 10) |
| Rilevazione movimento video | On / Off / schedule |
| Risoluzione Range | Scalable from CIF to QHD 1440p |
| Video Larghezza di banda | Configurable between 64Kbps and 20Mbps |
