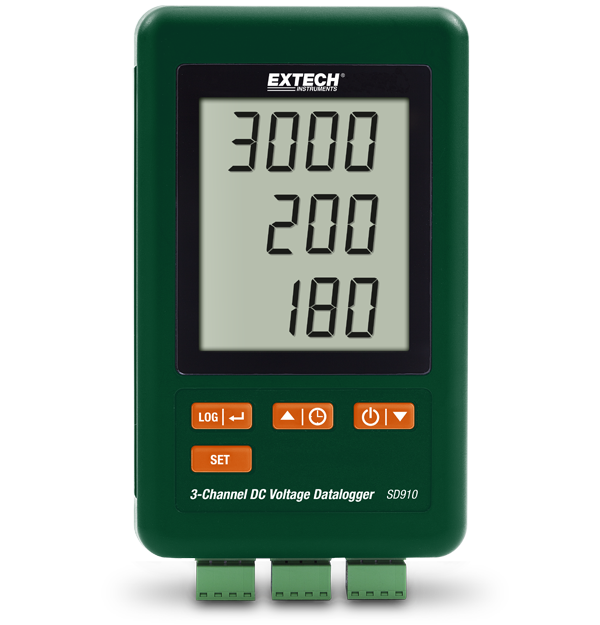

Extech SD910
3-Channel DC Voltage datalogger
Extech's SD910 allows technicians to easily monitor and record DC mV values from 3 external sensors, transducers, and other sources, all using one meter. It also stores the time and date of when readings are taken. The logger features a large triple LCD display and records data on an SD card in an Excel®-ready format for easy transfer to a PC for analysis, trending, and archiving. Complete with six AAA batteries, SD memory card, univeral AC ddaptor with multi-plugs (US, EU, UK, AUS), 3 input connect sockets, and mounting bracket.
Specifiche
| Specifiche generali | |
|---|---|
| Accuratezza di base tensione CC | 0.1mV, 1mV |
| Memoria | Approx. 2.7M readings using 4GB SD memory card |
| Risoluzione max tensione CC | ±(0.5% + 0.2mV), ±(0.5% + 2mV) |
| Tensione DC | 300.0mV, 3000mV |
| Ulteriori dettagli | |
|---|---|
| Alimentazione | 6 × AAA (1.5V) batteries |
| Certificazioni | CE, NIST |
| Dimensioni | 5.2 × 3.1 × 1.3" (132 × 80 × 32mm) |
| Garanzia | 2 years |
| Peso | 7oz (199g) |
