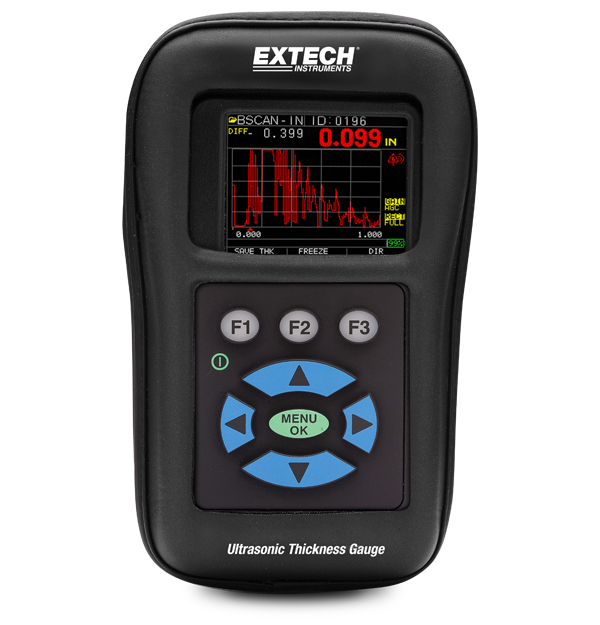

Extech TKG250
Digital Ultrasonic Thickness Gauge/Datalogger with Color Waveform
The Extech TKG250 is a Digital Ultrasonic Thickness Gauge/Data logger with Color Waveform function. It offers thickness gauges designed in compact, handheld, rugged housing which is ideal for field use. The ultrasonic technology allows for non-destructive thickness measurements for primarily steel structures. It data logs up to 100 K readings and can be exported to Excel® for further analysis. Complete with protective holster, 2 oz bottle of coolant, 2 AA batteries, 5 MHz transducer, hard carrying case, USB cable, and exporter software.
Specifiche
| Specifiche generali | |
|---|---|
| A-Scan (forma d’onda in tempo reale) | Full adjustments for gain in 1dB step or AGC, main bang blank, blank after first received echo, range including zoom auto tracking to center echoes independent of material and rectification |
| Allarme | Audible beeping; illuminae flashing display and keypad; and vibration feedback |
| B-Scan (sezione trasversale) | Displays a visual cross section of inspection area with no correlation to distance |
| Calibrazione velocità materiale | 0.200 to 0.7362 in/µS (0.508 to 18.699mm/µS) |
| Echo to Echo | Measure the metal thickness only (paint and coatings do not affect base material thickness value) |
| Guadagno | In 1dB steps from 20-90dB or Automatic Gain Control (AGC) for waveform |
| Memoria | Stores 50k readings (expandable to 100k) and 5,000 waveforms |
| Modalità di rettifica | RF, Half Wave Positive, Half Wave Negative and Full Wave Rectification |
| Modalità differenziale | Displays the difference from the actual thickness measurement and a user entered reference value |
| Modalità velocità | Displays acoustic sound speed to measure thickness of unknown materials |
| Spessore acciaio | 5MHz probe: 0.040 to 20" (1.0 to 508mm); 10MHz probe: 0.030" to 2" (0.76mm to 50.8mm) |
| Ulteriori dettagli | |
|---|---|
| Alimentazione | 2 × AA (1.5V) batteries |
| Certificazioni | CE |
| Classificazione IP | IP54 |
| Garanzia | 2 years |
