Discontinued

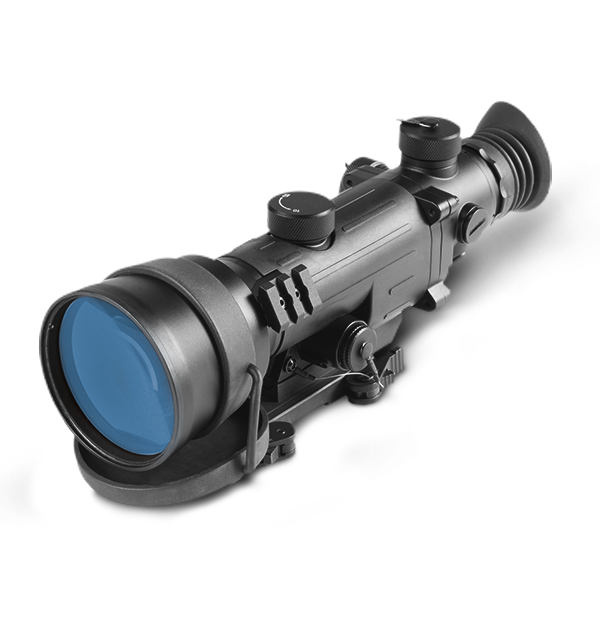

FLIR Vampire 3x
Night Vision Riflescope
The FLIR Vampire 3x is a CORE intensifier tube-based night vision riflescope designed for precise shot placement in minimal light conditions. A solid aluminum housing protects key electrical components from severe weather and shot recoil while an included extra long-range IR illuminator improves downrange image quality. An onboard tactical rail makes mounting additional lasers or illuminators simple.
Pinpointed Tactical Night Vision
Durable CORE intensifier tube and included XLR IR illuminator offer clear vision in minimal lighting.
Dust- and water-resistant solid aluminum housing withstands grueling environments and shot recoil.
Built-in tactical rail allows quick installation of detachable lasers and illuminators.
Specifiche
| Sensori e Ottiche | |
|---|---|
| Campo visivo | 10.5° |
| Conchiglia oculare [mm] | - |
| Controllo automatico luminosità | No |
| Cut_off luce intensa | No |
| Diametro pupilla uscita [mm] | - |
| Generazione IIT | CORE |
| Illuminatore infrarossi | Detachable Long Range IR |
| Ingrandimento | 3x |
| Messa a fuoco | 10 m to Infinity |
| Ottica sistema | F/1.5; 108 mm |
| Regolazione diottrie | ±4 diopter |
| Risoluzione | 60-70 lp/mm |
| Tipo fotocatodo | N/A |
| Ambientali e Certificazioni | |
|---|---|
| Temperatura di esercizio | -51°C to +45°C (-59°F to +113°F) |
| Temperatura di stoccaggio | -55°C to +70°C (-67°F to+158°F) |
| Alimentazione | |
|---|---|
| Alimentazione | CR123 Lithium 3V (1) or CR123 type rechargeable batteries with voltage 3.2V (1) |
| Autonomia della batteria | Up to 40 hours |
| Indicatore batteria bassa | Yes |
| Spegnimento automatico | No |
| Memorizzazione di file e Comunicazione | |
|---|---|
| Controllo remoto | No |
| UI-UX | |
|---|---|
| Colore reticolo | Red on Green |
| Controllo guadagno manuale | No |
| Indicatore IR | No |
| Panoramica sistema | |
|---|---|
| Altezza del mirino Asse sopra la guida | - |
| Garanzia | 2 Years |
| Regolazione Deriva_Alzo | 1/2 MOA |
| Tipo di reticolo | Crosshair |
| Fisiche | |
|---|---|
| Dimensioni (L x P x A) | 318 x 87 x 95 mm (12.5 x 3.4 x 3.7 in) |
| Montaggio su treppiede | - |
| Peso | 1.36 kg (3 lbs) |
| Accessori | |
|---|---|
| Accessori inclusi | XLR-IR850 Detachable X-Long Range Infrared Illuminator, Packing Box, One Lithium Battery CR123A, Instruction Manual with Warranty Card, Soft carrying Case, Lens Tissue |
| Accessori opzionali | XLR-IR Afocal Doubler - Doubles the distance of XLR-IR850 IR beam, Mil-Standard Hard Shipping/Storage Case #101, Extended Rail Adapter #85 |
