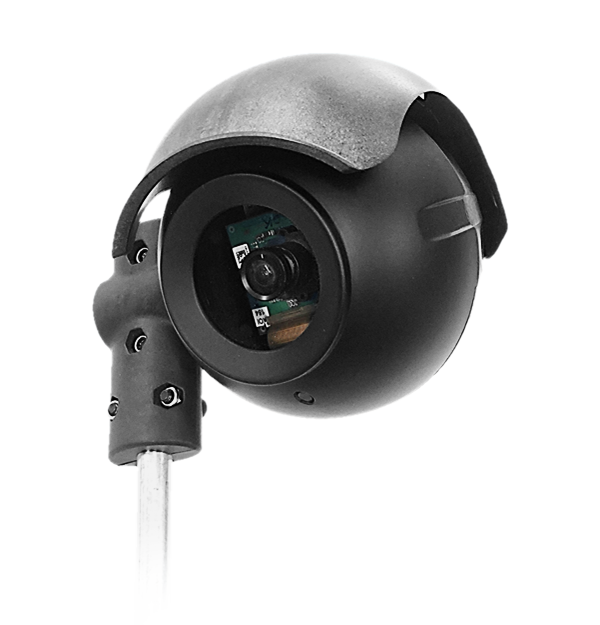

FLIR TrafiCam™ x-stream2
Vehicle presence and data collection sensor
The FLIR TrafiCam x-stream2 combines a digital camera and video detector into a single vehicle presence sensor. Detecting moving and stationary vehicles at signalized intersections, TrafiCam x-stream2 transmits vehicle presence information to a traffic controller via detection outputs or TCP/IP communication for adaptive and responsive signal timing. Each cost-effective TrafiCam x-stream2 sensor helps reduce vehicle idling time and optimize traffic flow.
Especificações
| Visão geral do sistema | |
|---|---|
| Funcionalidade | TrafiCam x-stream2 wide angle: Vehicle Presence Detection
Traffic Data Collection TrafiCam x-stream2 narrow angle: Vehicle Presence Detection Traffic Data Collection |
| Zonas de Detecção | 24 vehicle presence detection zones 8 traffic data zones (also for traffic flow monitoring) |
| Comunicações | |
|---|---|
| Compressão | H.264, MJPEG |
| Comunicação PC/Sensor | Ethernet via TI BPL2 interface or PoE injector |
| Configuração | Web page setup |
| Eléctrico | |
|---|---|
| Alimentação de Entrada | 24-42 VAC / 24-48 VDC |
| Comunicação via Rede Elétrica | Broadband over Powerline communication via TI BPL2 interface |
| Consumo de Energia | Avg 6 W / Peak 9 W |
| Contatos de Saída | 1 N/O and 1 N/C dry contact direct 16 N/C dry contacts via TI BPL2 interface 4 N/C dry contacts via TI BPL2 EDGE interface (more with additional 4 I/O USB expansion boards) SDLC to traffic light controller via TI BPL2 EDGE interface and PIM module |
| Distância de Detecção | TrafiCam x-stream2 wide angle: 0-25 m / 0-85 ft TrafiCam x-stream2 narrow angle: 15-75 m / 50-250 ft |
| FCC | FCC part 15 class A |
| PoE | PoE mode A for configuration, video streaming and data |
| Dados ambientais | |
|---|---|
| Choque e Vibração | NEMA TS2 specs |
| Classificação IP | IP 67 |
| Diretivas da UE | EMC 2014/30/EU, RoHS 2011/65/EU, LVD 2014/35/EU |
| Faixa de Temperatura | -34°C to + 74°C / -29°F to +165°F |
| Materiais | All weatherproof UV |
| Geração de imagem e óptica | |
|---|---|
| Comprimento Focal | TrafiCam x-stream2 wide angle: 2.1 mm TrafiCam x-stream2 narrow angle: 6mm |
| Distância Focal | 6.0 mm |
| Resolução | VGA (640 × 480) |
| Streaming de Vídeo | RTSP |
| Taxa de Quadros | 25 fps |
| Tipo CMOS | 1/4" color |
| Mecânico | |
|---|---|
| Dimensões (incl. suporte de montagem) | TrafiCam x-stream2 wide angle: Vertically mounted: 45 cm x 16 cm x 12 cm / 9.8 in x 6.3 in x 4.7 in
Horizontally mounted: 41 cm x 18 cm x 12 cm / 16.2 in x 7.1 inx 4.7 in TrafiCam x-stream2 narrow angle: Vertically mounted: 45 cm x 16 cm x 12 cm / 9.8 in x 6.3 in x 4.7 in Horizontally mounted: 41 cm x 18 cm x 12 cm / 16.2 in x 7.1 in x 4.7 in |
| Material | Aluminum housing with integrated polycarbonate sun shield |
