Extech MO50A
Compact Pin Moisture Meter
The MO50A Compact Pin-Type Moisture Meter makes it easy to take quick reference measurements on wood and building materials. It features a high-contrast color LCD with backlight for clear viewing in any lighting condition, along with intuitive display icons and audible alerts that simplify moisture level interpretation. Ideal for building restoration work, the MO50A helps detect moisture in floors, under carpets, behind walls, and in ceilings—making it an essential tool for assessing damage after water leaks.
Especificações
| Especificações gerais | |
|---|---|
| Faixa de Medição | Wood: Low: 1.5% to 16.9% Medium: 12% to 15.9% High: 16% to 50% Building Material Low: 1.5% to 16.9% Medium: 17% to 19.9% High: 20% to 33% |
| Faixa de Temperatura de Armazenamento | 0°C to 50°C (32°F to 122°F); < 85% RH |
| Precisão básica do teor de umidade WME (pino) | ±(3% + 5 digits) at 22°C to 25°C (72°F to 77°F) |
| Princípio de Medição | Electrical resistance using pins |
| Resolução máx. do teor de umidade WME (pino) | 0.1% |
| Teor de umidade WME (pino) | Wood Range: 5.0% to 50.0% Building Material Range: 1.5% to 33.0% |

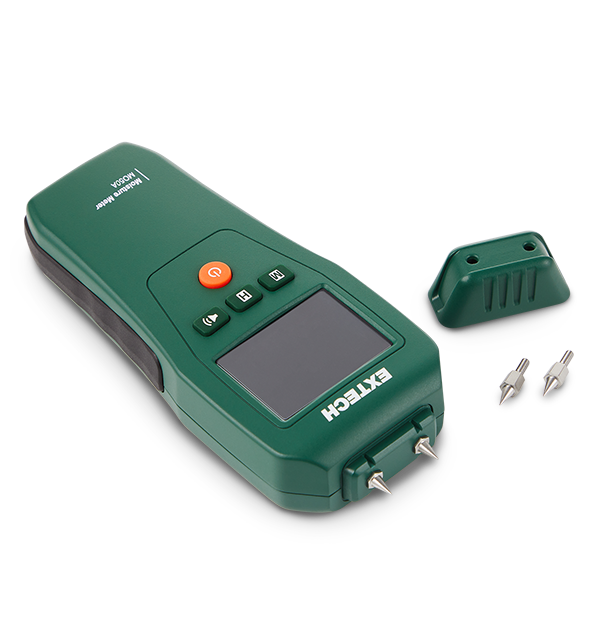

| Tipo de Sensor | Replaceable threaded contact pins, 8 mm (0.3 in) |
| Detalhes adicionais | |
|---|---|
| Certificações | CE, UKCA |
| Condições de Operação | 5°C to 45°C (41°F to 113°F); < 80% RH |
| Dimensões | 171.6 × 68 × 32.5 mm (6.7 × 2.7 × 1.3 in) |
| Display | Backlit Color LCD |
| Garantia | 2 years |
| Peso | 151 g (0.33 lb) excluding batteries |
| Potência | After approx. 3 minutes |
| Tipo de bateria | 3 × 1.5 V, AAA batteries |
Recursos e suporte
User Manual
Manual do usuário do Extech MO50A BR
User Manual
Extech MO50A User Manual
Datasheet
Extech MO50A Datasheet
