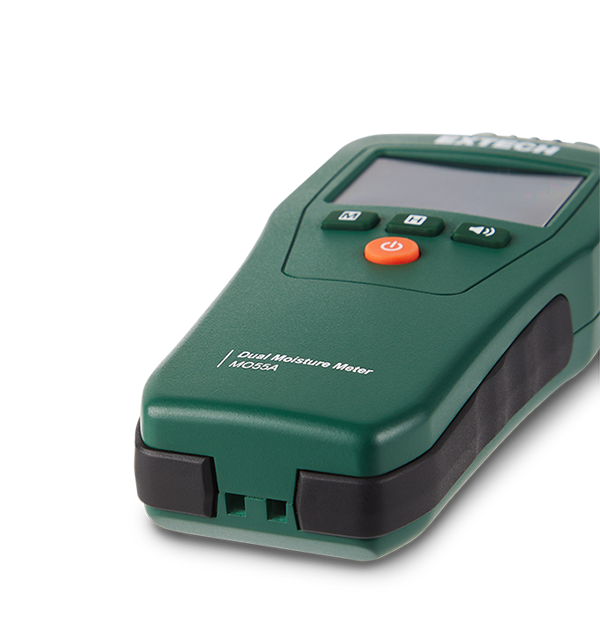

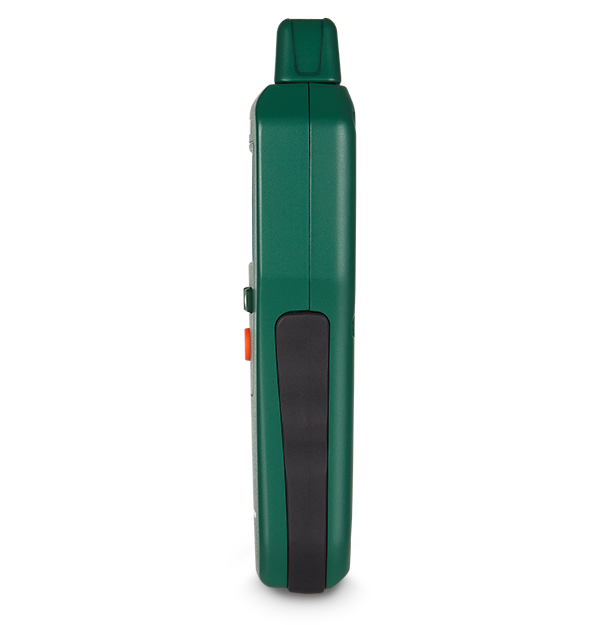

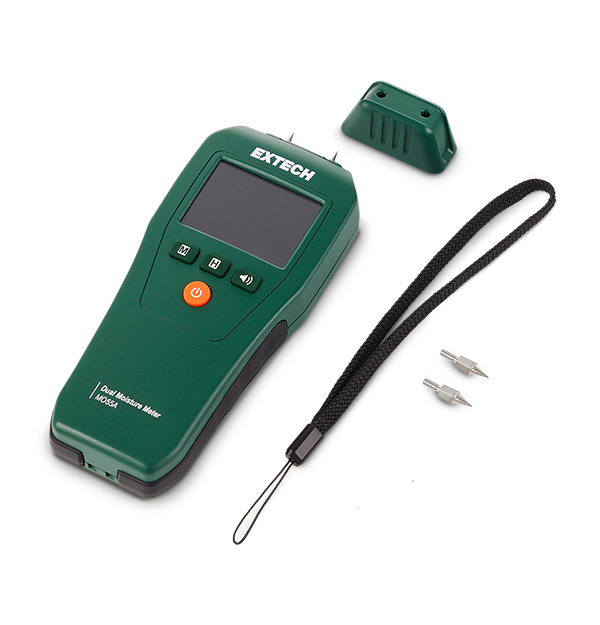

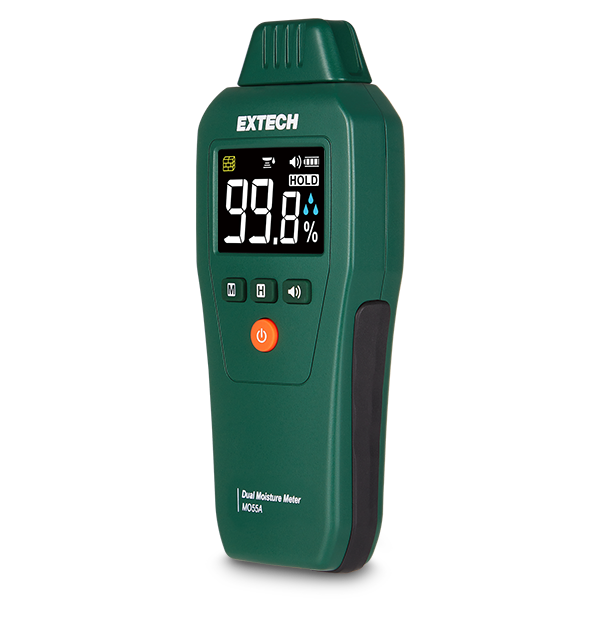

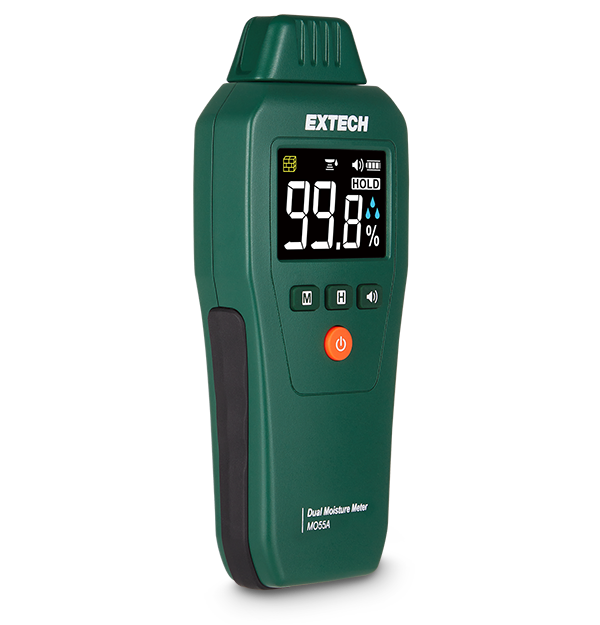

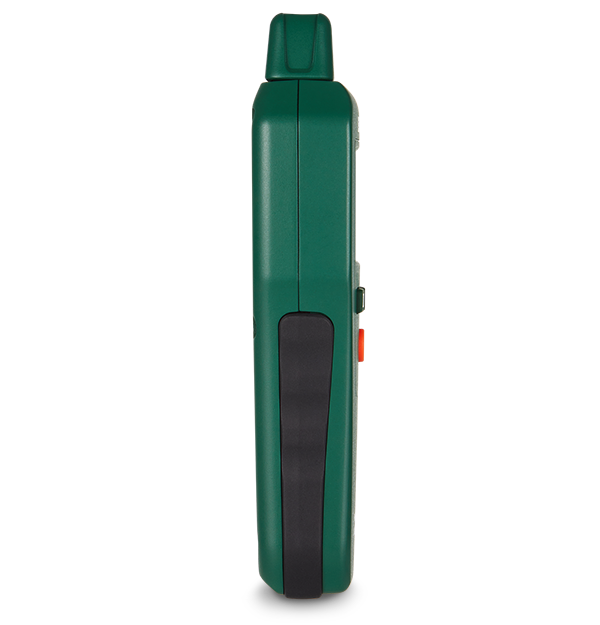

Extech MO55A
Combination Pin/Pinless Moisture Meter

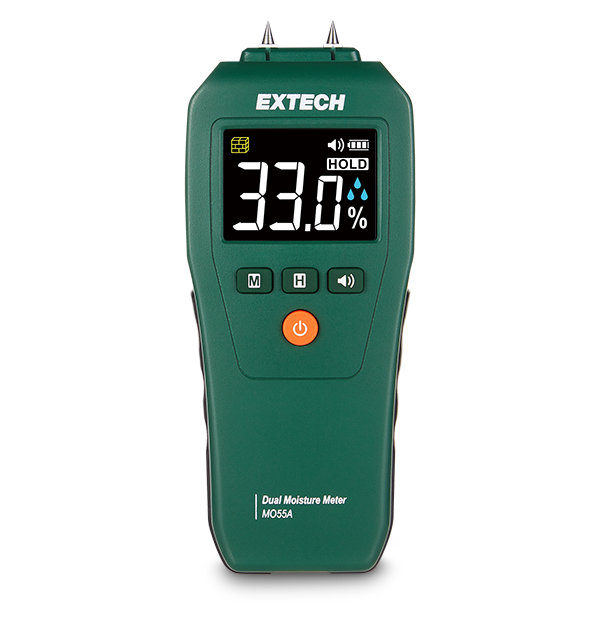

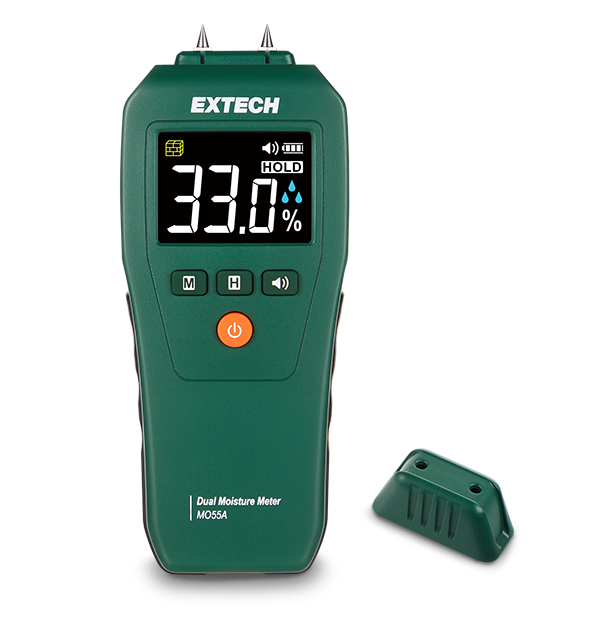

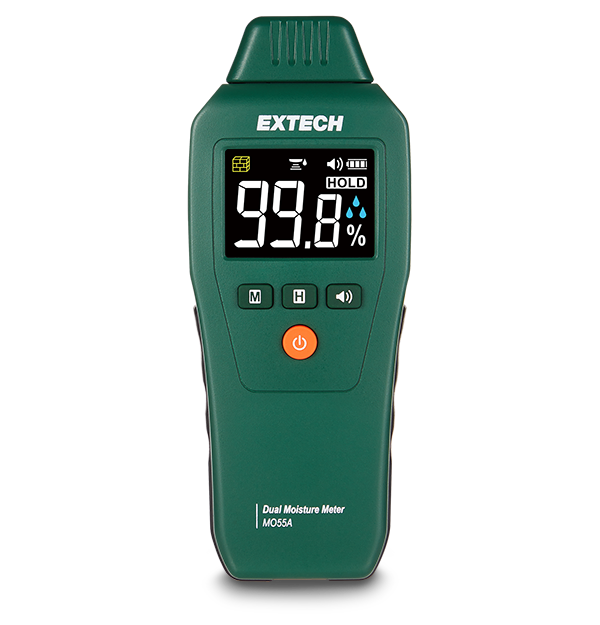

Take quick moisture measurements from a variety of building materials using either the pin or pinless (non-invasive) method with the Extech MO55A. This easy-to-use moisture meter features a high-contrast color LCD with backlight for clear visibility in any environment. It uses intuitive display icons to indicate moisture levels and provides an audible alert that speeds up as moisture increases. Ideal for building restoration projects and applications where detecting moisture on floors, tiles, and under carpets is critical, the MO55A is also essential for analyzing the after-effects of water leakage behind walls and in ceilings.
Especificações
| Especificações gerais | |
|---|---|

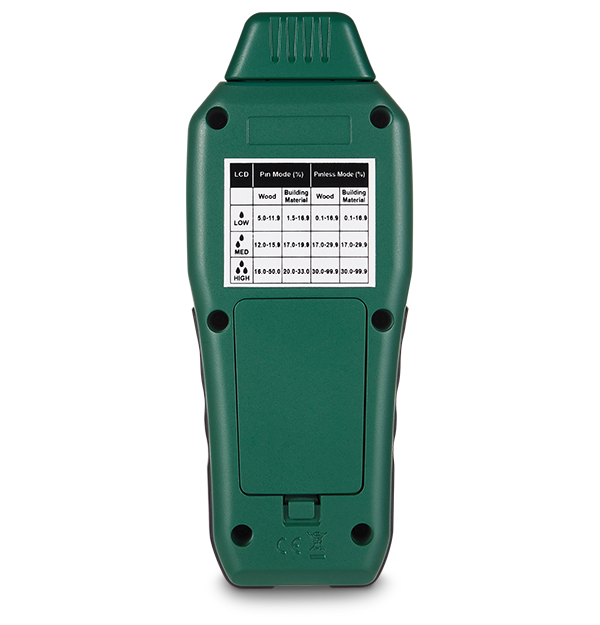

| Faixa de Medição | Wood: Low: 1.5% to 16.9% Medium: 12% to 15.9% High: 16% to 50% Building Material Low: 1.5% to 16.9% Medium: 17% to 19.9% High: 20% to 33% |
| Faixa de Temperatura de Armazenamento | 0°C to 50°C (32°F to 122°F); < 85% RH |
| Precisão básica do teor de umidade WME (pino) | ±(3% + 5 digits) at 22°C to 25°C (72°F to 77°F) |
| Princípio de Medição | Electrical resistance (pins); Capacitance (pinless) |
| Profundidade de medição | Pinless < 25 mm (1 in) |
| Resolução máx. do teor de umidade WME (pino) | 0.1% |
| Teor de umidade relativa (sem pino) | Wood: 0.0% to 99.9% Other building materials: 0.0% to 99.9% up to 25 mm (1 in) deep various with material under test |
| Teor de umidade WME (pino) | Wood Range: 5.0% to 50.0% Building Material Range: 1.5% to 33.0% |

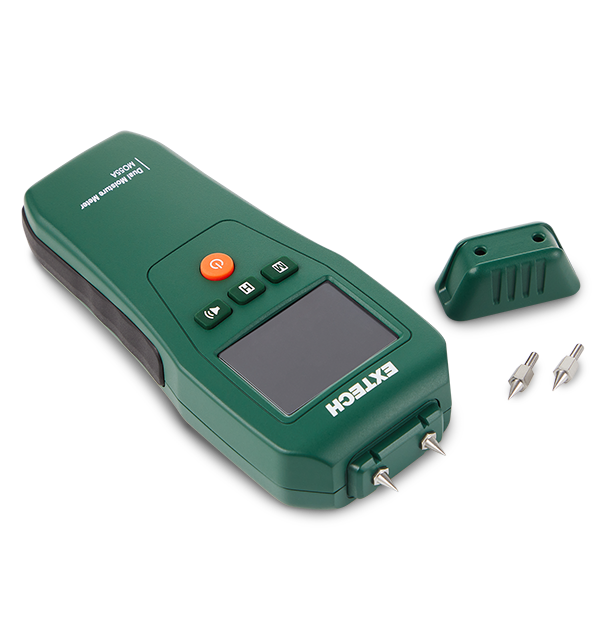

| Tipo de Sensor | Replaceable threaded contact pins, 8 mm (0.3 in); non-penetrating electromagnetic sensor pad |
| Detalhes adicionais | |
|---|---|
| Certificações | CE, UKCA |
| Condições de Operação | 5°C to 45°C (41°F to 113°F); < 80% RH |
| Dimensões | 171.6 × 68 × 32.5 mm (6.7 × 2.7 × 1.3 in) |
| Display | Backlit Color LCD |
| Garantia | 2 years |
| Peso | 151 g (0.33 lb) excluding batteries |
| Potência | Auto Power Off after approx. 3 minutes |
| Tipo de bateria | 3 × 1.5 V, AAA batteries |
