Discontinued

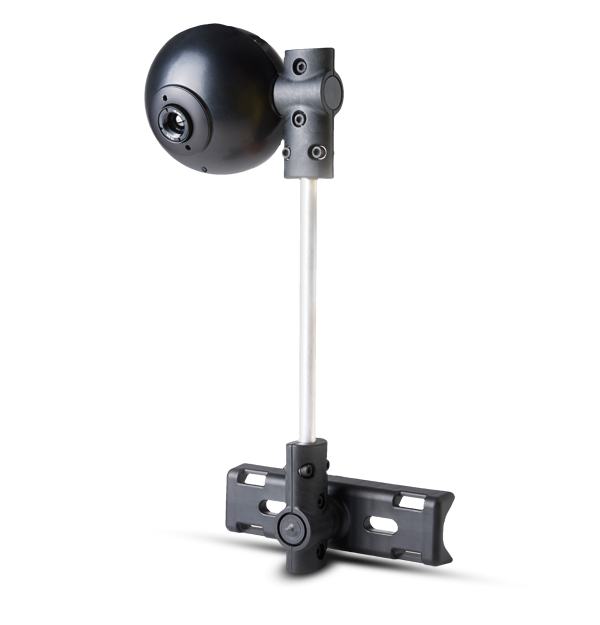

TrafiSense
Thermal traffic detector
Product Variations
TrafiSense is an integrated thermal sensor and detector for vehicle and bike detection. TrafiSense does not need light to operate, but uses the thermal energy emitted from vehicles and bicyclists. This enables the sensor to detect vehicles and bikes in the darkest of nights, over a long range and in the most difficult weather conditions. The result is reliable, 24/7 traffic detection for a wide range of applications.
Distinguish bikes from other vehicles, day and night
TrafiSense detects vehicles and bicycles at and near the intersection, allowing more dynamic control of traffic lights.
TrafiSense detects wrong-way drivers instantly, which is ideal for installation at highway entries and exits, or urban roads.
TrafiSense also offers accurate vehicle and bicycle counting.
Especificações
| Visão geral do sistema | |
|---|---|
| Funcionalidade | FLIR TrafiSense BPL 317: Vehicle presence Bike presence FLIR TrafiSense BPL 325, TrafiSense BPL 335, FLIR TrafiSense ETH 325, FLIR TrafiSense ETH 335: Vehicle presence Bike presence Inverse direction FLIR TrafiSense BPL 390, FLIR TrafiSense ETH 390: Vehicle presence Bike presence Inverse direction Counting |
| Funcionalidades de Detecção | Vehicle and bike presence, counting, inverse direction |
| Número de Zonas de Detecção | 24 vehicle presence zones 4 bike presence regions 8 inverse direction zones |
| Comunicações | |
|---|---|
| Compressão | H.264, MPEG-4, MJPEG (dual stream) |
| Ethernet | For communication of output state events, configuration & monitoring (streaming video) |
| Eléctrico | |
|---|---|
| Alimentação de Entrada | 12-42VDC, 12-30VAC |
| Consumo de Corrente | < 150mA @ 24VDC (< 200mA @ 24VDC peak at start-up) |
| Consumo de Energia | ≤ 3,6W (≤ 4,8W peak at start-up) |
| FCC | FCC part 15 class A |
| Fechamentos de Contato | 3 for ETH versions, direct or via optional ETH interface (PN 10-6075) 4 for TI x-stream EDGE (PN 10-6055), 12 extra outputs via 4/Os xp expansion boards |
| Ferramenta de PC para Configuração | Traficon Configuration Tool (TCT) |
| Dados ambientais | |
|---|---|
| Choque e Vibração | NEMA II specs |
| Diretivas da UE | EMC 2004/108/EC |
| Faixa de Temperatura | From -34°C to +80°C (-29°F to 165°F) |
| Grau de Proteção | Housing = IP68, Connectors = IP67 |
| RoHS 2011-65-EU | 0-95% relative |
| Geração de imagem e óptica | |
|---|---|
| Campo de Visão | FLIR TrafiSense BPL 317: Horizontal: 17° Vertical: 13° FLIR TrafiSense BPL 325, FLIR TrafiSense ETH 325: Horizontal: 25° Vertical: 19° FLIR TrafiSense BPL 335, FLIR TrafiSense ETH 335: Horizontal: 35° Vertical: 27° FLIR TrafiSense BPL 390, FLIR TrafiSense ETH 390: Horizontal: 90° Vertical: 69° |
| Distância Focal | FLIR TrafiSense BPL 317: 19 mm FLIR TrafiSense BPL 325, FLIR TrafiSense ETH 325: 13 mm FLIR TrafiSense BPL 335, FLIR TrafiSense ETH 335: 9 mm FLIR TrafiSense BPL 390, FLIR TrafiSense ETH 390: 7.5 mm |
| Resolução | QVGA (336 x 256) |
| Taxa de Quadros | 30 FPS |
| Tipo | Long wave Infrared (7 – 14 µm) |
| Mecânico | |
|---|---|
| Dimensões (incl. suporte de montagem) | Vertically mounted 45cm x 16cm x 12cm (17.7 x 6.3 x 4.7 inch) Horizontally mounted 41cm x 18cm x 12cm (16.1 x 7.1 x 4.7 inch) |
| Material | All weatherproof (UV-resistant) |
| Proteção Solar | Optional |
