Airtec
Diesel Particulate Monitor

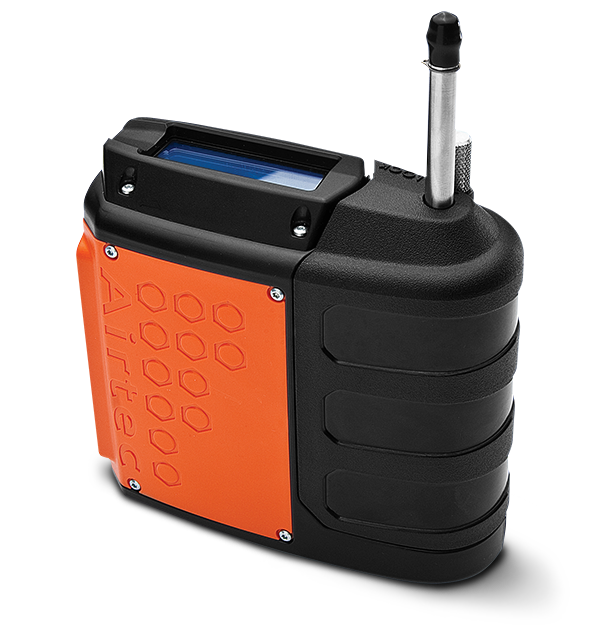

The Airtec monitor is an elemental carbon monitor designed to determine exposure of workers in underground mines to diesel particulate material (DPM). Airtec uses a real-time particle capture and light-transmission method to yield elemental carbon values which closely correlate with NIOSH 5040 test results. The Airtec monitor provides results that are time-and-space-resolved, allowing the operator to track DPM levels over time to help eliminate the risks associated with over exposure.
规格
| 成像与光学 | |
|---|---|
| 动态范围 | 9-600 µg/m3 8hr TWA EC |
| 灵敏度 | < 15 µg/m3 elemental carbon (EC) |
| 通讯与数据存储 | |
|---|---|
| 数据归档 | 2.75 to 66.6 days (1 min. to 1 hr sample intervals) |
| 输出 | LCD display with user-controlled backlight; User selectable 1, 5, 15 min. averaging EC and TC data logged 8 hr TWA DPM levels; Mini-USB connection |
| 电源 | |
|---|---|
| 电池寿命 | >12 hrs (continuous use) |
| 电源 | 7.4 VDC (built-in Li-ion rechargeable battery); 100 - 240V AC adaptor |
| 常规 | |
|---|---|
| 尺寸 | 4.75°(H) x 5.25°(W) x 2.5°(D) / 12.1cm(H) x 13.3cm(W) x 6.4cm(D) |
| 报警 | LCD alerts user of Low battery, Filter change, and pump flow |
| 系统重量 | 1.5 lbs (681g) |
资源和支持
Note: You must be logged in to download software or firmware. Login or create an account.
Software Download
Airtec Software
Datasheet
Airtec Datasheet
Brochure
Airtec Brochure
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
