Discontinued

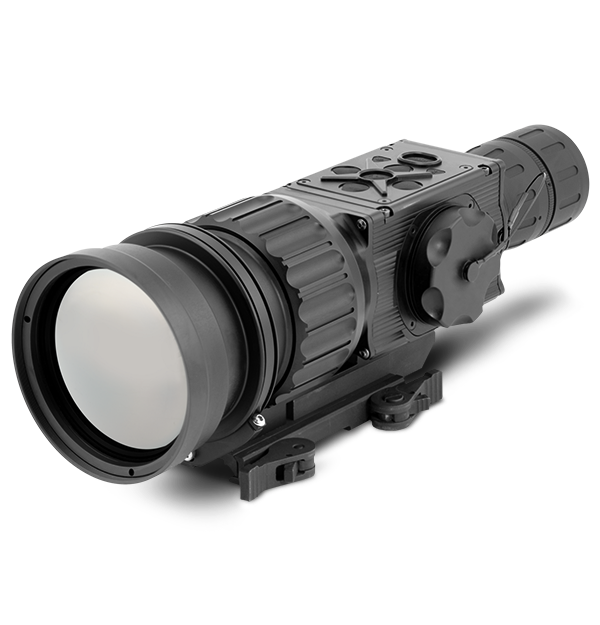

FLIR Apollo Pro LR
100 mm Thermal Clip-On System
Designed for long-range target detection and engagement, the FLIR Apollo Pro LR adds high-performance thermal imaging to any standard day scope. Using an existing ballistic reticle for shot placement, the Apollo Pro LR provides immediate precision by quickly mounting in front of day optics—no rezeroing needed. Accompanying mobile app and remote control simplify quick configuration changes and can provide valuable range estimation, target orientation, and weather data.
Long-Range Precision Meets High-Performance Thermal
Quick-release Picatinny mount installs in seconds while relying on an existing ballistic reticle eliminates the need for rezeroing.
Internal compass and inclinometer work alongside mobile app to provide detailed map orientation, target direction and range, and weather conditions.
100 mm optical lens and 640 resolution FLIR Tau 2 thermal core generate sharp thermal imaging over distances while user-configurable image enhancements help detect targets quickly.
规格
| Highlighted | |
|---|---|
| 视频录制 | Optional Digital Video Recorder with SD card slot |
| 传感器与光学 | |
|---|---|
| 俯仰角调节范围[NTSC _ PAL] | ±36MOA / ±30MOA |
| 像素尺寸 | 17 µm |
| 像素显示格式 | 800×600 |
| 像素阵列格式 | 640 × 512 |
| 出射光瞳直径[mm] | 40 mm |
| 分辨率 | 0.17 mRad (35 SOA) |
| 刷新率 | 60 Hz |
| 动态对比增强（ACE） | Yes |
| 屈光度调节 | - |
| 屈光度调节范围 | - |
| 放大率 | Unity (1×) |
| 无声无快门非均匀性校正[SSN] | Yes |
| 显示屏亮度 | Discretely Adjustable to 8 Levels |
| 显示屏类型 | AMOLED SVGA 060 |
| 焦平面阵列类型 | FLIR Tau 2 |
| 物镜光圈数 | 1:1.4 |
| 物镜焦距 | 100 mm |
| 物镜类型 | Germanium |
| 瞄准线保持 | - |
| 瞄准线可重复性 | - |
| 瞄准线精度 | - |
| 瞄准线调节[Pix_MOA] | - |
| 第二代数字细节增强[DDE] _ 清晰度 | Yes |
| 自动增益控制[AGC] | Yes |
| 良视距[mm] | - |
| 视场角[角度] | 6.2° × 5° |
| 调焦范围 | 10m to inf. |
| 环境与认证 | |
|---|---|
| 后坐阻力 | 0.50 BMG weapon shock |
| 存储温度 | -57°C to +85°C (-70°F to +185°F) |
| 工作温度 | -51°C to +57°C (-59°F to +134°F) |
| 电源 | |
|---|---|
| 启动时间 | 3 sec |
| 外部电源 | 6 VDC/ 600mA |
| 电池 | Four CR123A 3V Lithium batteries or four AA 1.5V |
| 电池寿命 | Up to 7 hrs (optional up to 14 hrs) |
| 电池电量状态指示器 | Yes |
| 文件存储和通讯 | |
|---|---|
| 模拟输入和输出格式[分辨率] | NTSC (640 × 480 pixels) / PAL (768 × 574 pixels) |
| 视频录制 | Optional Digital Video Recorder with SD card slot |
| 远程控制 | Wireless 5-button |
| UI-UX | |
|---|---|
| 十字线颜色 | Black, White, Red, Cyan |
| 基于信息的直方图均衡化[IBHEQ] _ SKY_SEA | Yes |
| 数字角度余弦指示器 | Yes |
| 智能场景优化 | Yes |
| 热图像调色板 | White Hot, Black Hot, Sepia, Fusion, Rainbow, and Rain |
| 用户_受控手动非均匀性校正_ 平场校正 [UCMNUC_ FFC] | Yes |
| 调焦方法 | Manual |
| 系统概览 | |
|---|---|
| 保修 | 2 years standard, 3 years with product registration |
| 十字线类型 | 6-Pattern Digitally Controlled Dot 4 MOA, Line Dot, Cross Center Dot, Cross, Crosshair, and No Reticle |
| 探测器保修 | 10 Years |
| 数字变焦 | 1×, 2×, 4×, and 8× |
| 数字测斜仪 | Yes |
| 数字罗盘 | Yes |
| 轨道之上观测装置轴线的高度 | 46 mm (1.81 in) |
| 风阻_仰角瞄准线增量 [NTSC] | 0.6 mOA, 0.17 mils, 0.62 in/100 yd, 1.7 cm/100 m |
| 风阻_仰角瞄准线增量 [PAL] | 0.5 mOA, 0.15 mils, 0.5 in/100 yd, 1.5 cm/100 m |
| 风阻调节范围[NTSC_ PAL] | ±48MOA / ±40MOA |
| 物理 | |
|---|---|
| 尺寸（长 x 宽 x 高） | 287 × 90 × 100 mm (11.3 × 3.5 × 3.9 in) |
| 重量[不含电池] | 1.3 kg (2.9 lbs) |
| 配件 | |
|---|---|
| 可选配件 | Mil-Standard Hard Shipping/Storage Case #102, Extended Rail Adapter #85, Extended Battery Pack, AMRF2200 - Advanced Modular Range Finder, HD DVR Digital Video Recorder, IRIS Wireless Head Mounted Display |
| 随附配件 | Battery Set, AWReC (Advanced Wireless Remote Control 5-buttons), Soft carrying Case, Light-Suppressor 1, Light-Suppressor 2, Video Cable, Picatinny adapter for AWReC (Advanced Wireless Remote Control), Instruction Manual with Warranty Card, Light-Suppressor 3, Packing Box, Key (used to remove the battery cap insert), Battery Box Extender Ring (for AA batteries), Battery Cartridge (for AA batteries), Light Suppressor for Day Scope, Lens Tissue |
