Discontinued

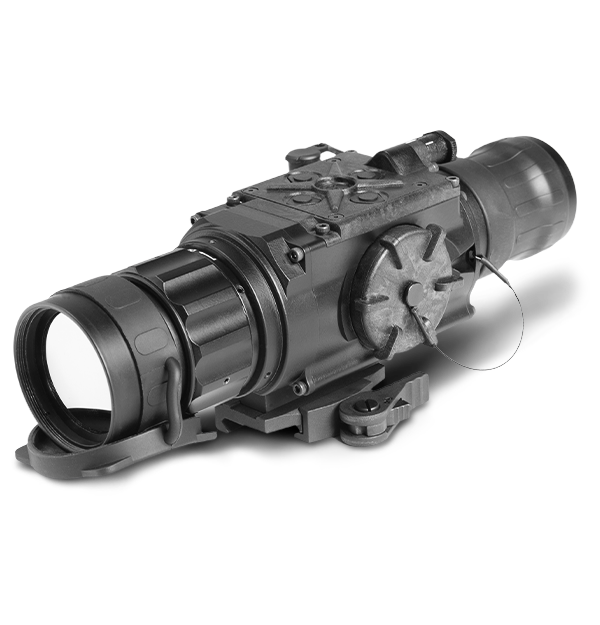

FLIR Apollo
Thermal Clip-On System
The FLIR Apollo introduces thermal imaging to any standard daytime optic—no rezeroing needed. Fastened in front of a magnified sight via Picatinny quick-release mount, the Apollo brings state-of-the-art thermal technology to an existing set-up in seconds. Detect targets in complete darkness or through atmospheric obscurants without the need to remove daytime optics.
Fast, On-Demand Thermal Imaging
Clip-on thermal sight relies on the day scope reticle, eliminating the need to rezero.
Front-mounted thermal sight allows consistent shooting position and eye relief with an existing day scope.
FLIR Tau 2 thermal core, advanced image processing, and HD AMOLED SVGA display create a bright, sharp picture.
规格
| Highlighted | |
|---|---|
| 视频录制 | Optional Digital Video Recorder with SD card slot |
| 传感器与光学 | |
|---|---|
| 俯仰角调节范围[NTSC _ PAL] | - |
| 像素尺寸 | 17 µm |
| 像素显示格式 | 800 × 600 |
| 像素阵列格式 | 336×256 |
| 出射光瞳直径[mm] | 40 mm |
| 刷新率 | 30 Hz |
| 动态对比增强（ACE） | Yes |
| 屈光度调节 | - |
| 屈光度调节范围 | - |
| 放大率 | Unity (1×) |
| 无声无快门非均匀性校正[SSN] | Yes |
| 显示屏亮度 | Discretely Adjustable to 8 Levels |
| 显示屏类型 | AMOLED SVGA 060 |
| 焦平面阵列类型 | FLIR Tau 2 |
| 物镜光圈数 | 1:1 |
| 物镜焦距 | 50 mm |
| 物镜类型 | Germanium |
| 瞄准线保持 | Permanent to within 2 MOA or better |
| 瞄准线可重复性 | Within 2 MOA |
| 瞄准线精度 | Factory aligned to 1 MOA or better |
| 瞄准线调节[Pix_MOA] | - |
| 第二代数字细节增强[DDE] _ 清晰度 | Yes |
| 自动增益控制[AGC] | Yes |
| 良视距[mm] | - |
| 视场角[角度] | 8° × 6° |
| 调焦范围 | 5m to inf. |
| 环境与认证 | |
|---|---|
| 后坐阻力 | 700 g |
| 存储温度 | -50°C to +70°C (-58°F to +158°F) |
| 工作温度 | -40°C to +50°C (-40°F to +122°F) |
| 电源 | |
|---|---|
| 启动时间 | 3 sec |
| 外部电源 | 6 VDC/ 600mA |
| 电池 | Two CR123A 3V Lithium batteries or CR123 type rechargeable batteries with voltage from 3.0V to 3.7V (2) |
| 电池寿命 | Up to 4 hr (optional up to 12 hrs) |
| 电池电量状态指示器 | Yes |
| 文件存储和通讯 | |
|---|---|
| 模拟输入和输出格式[分辨率] | NTSC (640 × 480 pixels) / PAL (768 × 574 pixels) |
| 视频录制 | Optional Digital Video Recorder with SD card slot |
| 远程控制 | Wireless |
| UI-UX | |
|---|---|
| 十字线颜色 | - |
| 基于信息的直方图均衡化[IBHEQ] _ SKY_SEA | - |
| 数字角度余弦指示器 | - |
| 智能场景优化 | Yes |
| 热图像调色板 | White Hot, Black Hot, Fusion, Rainbow, Globow, Ironbow 1, Ironbow 2, Sepia, Color 1, Color 2, Ice-Fire, Rain, and OEM Custom |
| 用户_受控手动非均匀性校正_ 平场校正 [UCMNUC_ FFC] | Yes |
| 调焦方法 | Manual |
| 系统概览 | |
|---|---|
| 保修 | 2 years standard, 3 years with product registration |
| 十字线类型 | No reticle |
| 探测器保修 | 10 Years |
| 数字变焦 | - |
| 数字测斜仪 | - |
| 数字罗盘 | - |
| 轨道之上观测装置轴线的高度 | 40 mm (1.57 in) |
| 风阻_仰角瞄准线增量 [NTSC] | - |
| 风阻_仰角瞄准线增量 [PAL] | - |
| 风阻调节范围[NTSC_ PAL] | - |
| 物理 | |
|---|---|
| 尺寸（长 x 宽 x 高） | 217 × 74 × 82 mm (8.5 × 2.9 × 3.2 in) |
| 重量[不含电池] | 0.81 kg (1.8 lbs) |
| 配件 | |
|---|---|
| 可选配件 | Scope Mounting System 3 #42, Scope Mounting System 2 #41, Scope Mounting System 1 #40, Mil-Standard Hard Shipping/Storage Case #101, Scope Mounting System 4 #43, Scope Mounting System 6 #44, IRIS Wireless Head Mounted Display, HD DVR Digital Video Recorder, Extended Battery Pack, Extended Rail Adapter #85 |
| 随附配件 | Soft carrying Case, Battery Cassette, Picatinny adapter for AWReC (Advanced Wireless Remote Control), AWReC (Advanced Wireless Remote Control) #94, Instruction Manual with Warranty Card, Two Lithium Battery CR123A, Video Cable, Light-Suppressor 1, Light Suppressor for Day Scope, Packing Box, Light-Suppressor 3, Light-Suppressor 2, Lens Tissue |
