Discontinued

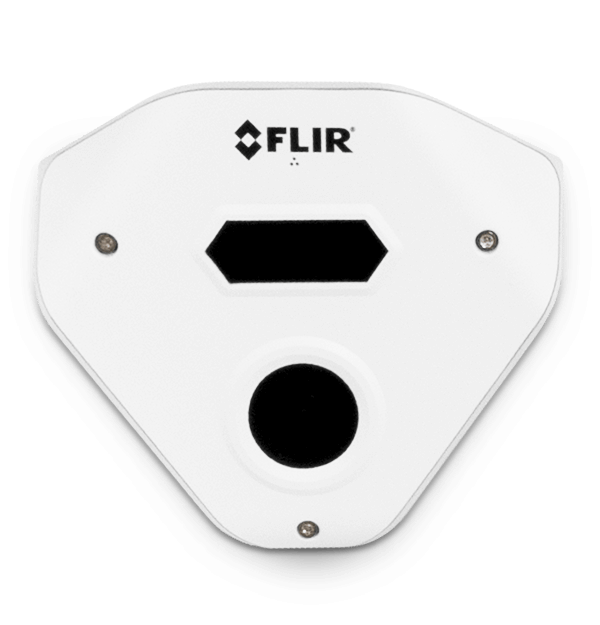

Ariel 3MP Corner Camera
3 Mega Pixel Corner Camera
The Ariel 3MP Corner Camera features a unique corner-shape form factor and extended FOV lens that provides ceiling-to-floor and wall-to-wall coverage. Due to its corner mounting, ligature-free housing and discrete infrared illumination, the Ariel 3 MP Corner camera is an ideal solution for any deployment that requires full coverage from a single camera — including correctional institutions, healthcare facilities, building lobbies and elevators.
Full coverage with a durable housing
A rugged, no-ligature housing resists tampering, yet its sleek design makes it suitable for both industrial and commercial locations.
The camera's specialty lens provides ceiling-to-floor and wall-to-wall coverage with no blind spots.
The camera delivers extreme color sensitivity and IR-illumination that is imperceptible to the human eye.
规格
| 合规性与认证 | |
|---|---|
| USA | UL 60950, FCC Part 15 (subpart B, class A) |
| 兼容ONVIF网络视频协议 | Onvif Profile S & G |
| 国际 | CE marked, EN61000-6-3 & EN50130-4, RoHS, RCM |
| 平均故障间隔时间[小时] | 382189 |
| 网络安全 | |
|---|---|
| 安全性 | User account with password protection and IP filter |
| 环境 | |
|---|---|
| 存储温度 | -40°C to 60°C (-40°F to 140°F) |
| 工作温度 | -40°C to 50°C (-40°F to 122°F) |
| 湿度 | 90% (non-condensing) |
| 常规 | |
|---|---|
| AES | 1/1.75 to 1/10,000 (auto) |
| BLC | On / Off |
| 保修 | According to FLIR RMA Policy and Process Notice document |
| 功耗 | 3.4W / 9.4W with heater and IR |
| 固件升级 | Flash memory for upgrade of camera firmware over the network |
| 外壳 | IK10+ 50 Joule Impact Resistant / IP66 |
| 尺寸 | 184 x 179 x 59 mm |
| 扫描模式 | Progressive |
| 检测位置移动 | Yes |
| 电源连接 | PoE |
| 白天/夜间模式 | Yes |
| 装置重量 | 1.21kg (2.67 lbs.) |
| 输入电压 | 802.3af PoE |
| 隐私区域 | Yes |
| 系统集成 | |
|---|---|
| LED类型 | High efficiency SMD |
| 以太网 | 10/100, auto sensing, half / full duplex (RJ45) |
| 峰值发射波长[nm] | 940.0 |
| 报警输入 | 1 Dry Alarm Contact |
| 报警输出 | 1 Relay Contact |
| 支持的网络浏览器 | Internet Explorer 10+, Firefox 50+, Chrome 55+ |
| 照明角度 | Full 60° |
| 红外测温距离 | up to 10 m (33 ft.) |
| 网络协议 | TCP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, SSL, LDAP |
| 远程配置 | Via web browser or supported video management software |
| 音频强度探测 | Yes |
| 音频输入 | Built in Microphone, G.711 a/µ-law, AAC support |
| 可见光相机 | |
|---|---|
| AGC | Auto |
| DSS | Max. shutter 1/7.5(6.25)~1/60(50) / min. |
| WDR | 1/1.75 to 1/10,000 (auto) |
| 传感器分辨率 | 2048 x 1536 |
| 信噪比 | ±50 dB |
| 图像传感器 | 1/2.8" BSI CMOS |
| 机械式红外截止滤光片 | Yes |
| 灵敏度 | 0.02 (color)/0.01 (BW), 0 Lux with IR illuminator ON, measured at 30 IRE |
| 白平衡 | Auto / ATW / Manual / One Push |
| 镜头-红外窗口 | IK10 Vandal Resistant Polycorbonate |
| 镜头窗口透射比 | 0.45 |
| 镜头类型 | 2.1mm, 120° HFOV x 90° VFOV, F1.8, D/N |
| 降噪 | 3D |
| 视频和录制 | |
|---|---|
| SD卡记录 | microSDXC up to 128GB (Class 10) |
| 分辨率范围 | Scalable from SVGA to 3MP |
| 最高性能 | H.264 30/25 fps@QXGA + SVGA(NTSC/PAL) or H.264 15/12 fps@QXGA +1280x960 + SVGA (NTSC/PAL) |
| 视频压缩 | Fully compliant multi-stream H.264 main/high profile + MJPEG |
| 视频带宽 | Configurable between 64Kbps and 20Mbps |
| 视频运动检测 | Yes |
| 速率控制 | CVBR |
