Discontinued

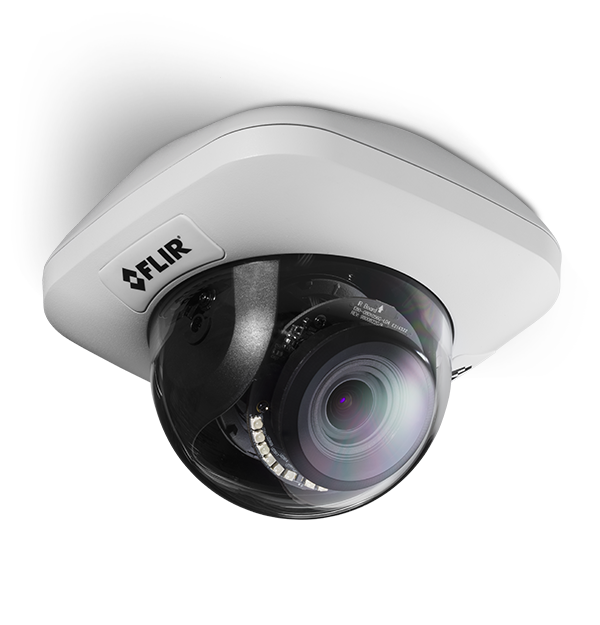

Ariel 4K UHD Mini-Dome
The Ariel 4K UHD Dome easily handles diverse motion and lighting conditions found in critical infrastructure and commercial locations. The camera includes Shutter Wide Dynamic Range, IR Illumination and H.264/H.265 compression. The Ariel 4K UHD Dome reduces the total cost of ownership through network and storage savings. When controlled using FLIR’s United VMS, the camera also utilizes unique adaptive streaming technology, enhancing the overall viewing experience.
The highest quality video at the lowest bandwidth.
Features include 4K UHD resolution, Shutter Wide Dynamic Range, and H.264/H.265 compression.
Camera sensitivity equals 0.07 Lux (color), 0.01 Lux (BW), and 0 Lux with IR illumination.
The camera offers tamper detection and multi-zone video motion detection.
规格
| 合规性与认证 | |
|---|---|
| USA | UL/cUL 60950-1, FCC47 CFR Part 15 subpart B / ICES-003 |
| 国际 | CE marked, EN61000-6-3 & EN50130-4, RoHS, RCM |
| 平均故障间隔时间[小时] | 346896.0 |
| 网络安全 | |
|---|---|
| 安全性 | User account with password protection and IP filter |
| 环境 | |
|---|---|
| 存储温度 | -40°C to 60°C (-40°F to 140°F) |
| 工作温度 | -40°C to 50°C (-40°F to 122°F) |
| 湿度 | 90% (non-condensing) |
| 常规 | |
|---|---|
| AES | 1/1.75 to 1/10,000 (auto) |
| 保修 | According to FLIR RMA Policy and Process Notice document |
| 功耗 | 8W / 12W with heater and IR |
| 固件升级 | Flash memory for upgrade of camera firmware over the network |
| 外壳 | Indoor/Outdoor: IK7 rated vandal IP67 |
| 尺寸 | 138 × 104 mm (5.43 x 4.09 in.) |
| 快门WDR | On / Off |
| 扫描模式 | Progressive |
| 检测位置移动 | Yes |
| 电源连接 | PoE / RJ45 |
| 白天/夜间模式 | Yes, support for Enhanced Low Light Performance |
| 磁泡F制光圈 | F0.0 - clear bubble |
| 磁泡等级 | IK10 vandal resistant polycarbonate |
| 装置重量 | 0.82kg (1.8 lbs.) |
| 输入电压 | 802.3af PoE |
| 隐私区域 | Yes |
| 测量与分析 | |
|---|---|
| 自动增益控制 | Auto |
| PTZ | |
|---|---|
| 方位/俯仰云台 | 360° / ±88° |
| 系统集成 | |
|---|---|
| LED类型 | high efficiency SMD |
| 以太网 | 10/100, IEEE 802.3, auto sensing 1 x RJ45 |
| 双向音频 | 1 Audio Line Input, G.711 a/µ-law, AAC support + 1 Audio Line Output |
| 峰值发射波长[nm] | 850.0 |
| 报警输入 | 1 dry alarm contact |
| 报警输出 | 1 Relay Contact |
| 支持的网络浏览器 | Internet Explorer 10+, Firefox 50+, Chrome 55+ |
| 照明角度 | Full 60° |
| 红外测温距离 | up to 30m (98 ft.) |
| 网络协议 | TCP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP,SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, SSL, LDAP |
| 远程配置 | via web browser or supported video management software |
| 热像仪 | |
|---|---|
| DSS | 1/7.5(6.25)~1/60(50) NTSC(PAL) |
| 图像传感器 | 1/2.9" BSI CMOS |
| 灵敏度 | 0.07 (color)/0.01 (BW), 0 Lux with IR illuminator ON, measured at 30 IRE |
| 可见光相机 | |
|---|---|
| DSS | 1/7.5(6.25)~1/60(50) NTSC(PAL) |
| 传感器分辨率 | 3840 x 2160 |
| 信噪比 | ±50 dB |
| 图像传感器 | 1/2.9" BSI CMOS |
| 机械式红外截止滤光片 | Yes |
| 灵敏度 | 0.07 (color)/0.01 (BW), 0 Lux with IR illuminator ON, measured at 30 IRE |
| 白平衡 | Auto / ATW / Manual / One Push |
| 背光补偿 | On / Off |
| 镜头类型 | Varifocal 3.4-9mm, 42°-104° HFOV, F1.5, D/N, motorized auto-focus / auto-iris, P-Iris lens |
| 降噪 | 3D |
| 视频和录制 | |
|---|---|
| SD卡记录1 | microSDXC up to 128GB (Class 10) |
| 分辨率范围 | Scalable from D1 to 4K |
| 最高性能 | H.264/H.265 30/25 FPS @ 4K (NTSC/PAL) or H.264/H.265 15/12 FPS @ 4K + 1080P + D1 (NTSC/PAL) or H.264/H.265 60/50 FPS @ 1080P + 30/25 FPS @ 720P + D1 (NTSC/PAL) |
| 视频压缩 | Enhanced H.265 Main Profile + Enhanced H.264 Main/High/Baseline Profile + MJPEG |
| 视频带宽 | Configurable between 64Kbps and 20Mbps |
| 视频运动检测 | Yes |
| 速率控制 | CBR, CVBR, VBR, MJPEG |
