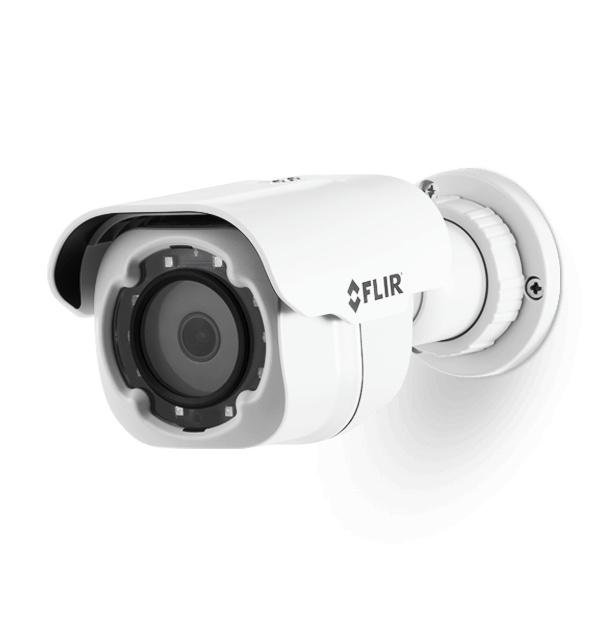

Ariel Full HD Bullet
1080p WDR Bullet Camera
The Ariel CB-3102 camera features FULL HD 1080p video that guarantees frame rates in high motion, complex and low light scenes, and lowers overall utility costs and carbon footprint. The Ariel CB-3102 delivers predictable storage, reducing the Total Cost of Ownership. The camera easily handles wide variations in motion and lighting found in airports, city surveillance projects, critical infrastructure sites, commercial offices and campuses.
规格
| 网络安全 | |
|---|---|
| 安全性 | User account with password protection and IP filter |
| 环境 | |
|---|---|
| 存储温度 | -40°C to 60°C (-40°F to 140°F) |
| 工作温度2 | -40°C to 50°C (-40°F to 122°F) |
| 湿度 | 90% (non-condensing) |
| 常规 | |
|---|---|
| AES | 1/7.5 to 1/10,000 (auto) |
| 功耗 | CB-3102-01-I: 5W / 9W with heater and IR CB-3102-11-I: 8W / 12W with heater and IR |
| 固件升级 | Flash memory for upgrade of camera firmware over the network |
| 外壳 | Indoor/Outdoor: IK7 rated vandal IP67 |
| 尺寸 | CB-3102-01-I: 180 x 86 x 80 mm (7.08 x 3.39 x 3.15 in.) CB-3102-11-I: 215 x 86 x 80 mm (8.48 x 3.39 x 3.15 in.) |
| 扫描模式 | Progressive |
| 检测位置移动 | Yes |
| 电源连接 | PoE |
| 白天/夜间模式 | Yes |
| 装置重量 | CB-3102-01-I: 0.45kg (0.98 lbs.) CB-3102-11-I: 0.675kg (1.49 lbs.) |
| 输入电压 | 802.3af PoE |
| 隐私区域 | Yes |
| 测量与分析 | |
|---|---|
| 自动增益控制 | Auto |
| PTZ | |
|---|---|
| 方位/俯仰云台旋转 | 360, ±80° and 360 |
| 系统集成 | |
|---|---|
| LED类型 | high efficiency SMD |
| 以太网 | 10/100, auto sensing, half / full duplex (RJ45) |
| 峰值发射波长[nm] | 850.0 |
| 报警输入 | CB-3102-11-I: 1 dry alarm contact |
| 支持的网络浏览器 | Internet Explorer 10+ |
| 照明角度 | Full 60° |
| 红外测温距离 | up to 30m (98 ft.) |
| 网络协议 | TCP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, SSL, LDAP |
| 远程配置 | via web browser or supported video management software |
| 音频输入 | CB-3102-11-I: G.711, AAC 8KHz 16bit |
| 可见光相机 | |
|---|---|
| DSS | 1/7.5 to 1/50 or 1/60 with up to 8x sensitivity boost in color or night mode |
| 传感器分辨率 | 2048 x 1536 |
| 信噪比 | ±50 dB |
| 图像传感器 | 1/2.8" BSI CMOS |
| 宽动态范围 | On / Off - 3 levels |
| 机械式红外截止滤光片 | Yes |
| 灵敏度 | 0.03 (color)/0.01 (BW), 0 Lux with IR illuminator ON, measured at 30 IRE |
| 白平衡 | Auto / ATW / Manual / One Push |
| 背光补偿 | On / Off |
| 镜头类型 | CB-3102-01-I: Fixed 2.8mm, 102° HFOV, F1.8, D/N CB-3102-11-I: Varifocal 3-10mm, 92°-27° HFOV, F1.4, D/N, Motorized with auto-focus and auto-iris |
| 降噪 | 3D |
| 视频和录制 | |
|---|---|
| SD卡记录1 | microSDXC up to 128GB (Class 10) |
| 分辨率范围 | Scalable from D1 to FHD 1080p |
| 最高性能 | H.264 30/25 @ 1080p + 720p + D1 (NTSC/PAL) |
| 视频压缩 | Fully compliant multi-stream H.264 main/high profile + MJPEG |
| 视频带宽 | Configurable between 64Kbps and 20Mbps |
| 视频运动检测 | Yes |
| 速率控制 | CVBR |
