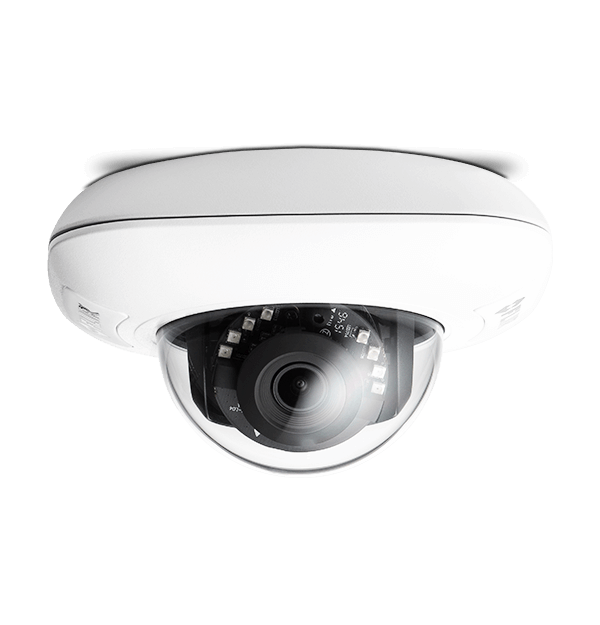

FLIR ARIEL™ CM-3102
Full HD Mini-Dome
The Ariel CM-3102 mini-dome camera with Full HD 1080p video guarantees frame rates in complex, high motion, and low light scenes found in airports, critical infrastructure sites, commercial offices and campuses.Through its motion processing architecture, the Ariel mini-dome also delivers predictable storage, reducing overall utility costs and Total Cost of Ownership (TCO).
规格
| 网络安全 | |
|---|---|
| 安全性 | User account with password protection and IP filter |
| 常规 | |
|---|---|
| AES | 1/1.75 to 1/10,000 (auto) |
| 固件升级 | Flash memory for upgrade of camera firmware over the network |
| 扫描模式 | Progressive |
| 检测位置移动 | Yes |
| 白天/夜间模式 | Yes |
| 隐私区域 | Yes |
| 测量与分析 | |
|---|---|
| 自动增益控制 | Auto |
| 系统集成 | |
|---|---|
| LED类型 | high efficiency SMD |
| 以太网 | 10/100, auto sensing, half / full duplex (RJ45) |
| 峰值发射波长[nm] | 850.0 |
| 支持的网络浏览器 | Internet Explorer 10+ |
| 照明角度 | Full 60° |
| 红外测温距离 | up to 30 m (98 ft.) |
| 网络协议 | TCP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, SSL, LDAP |
| 远程配置 | via web browser or supported video management software |
| 热像仪 | |
|---|---|
| DSS | 1/7.5 to 1/25 or 1/30 with up to 4x sensitivity boost in color or night mode |
| 图像传感器 | 1/2.8" BSI CMOS |
| 宽动态范围 | On / Off (78dB) |
| 灵敏度 | 0.03 (color)/0.01 (BW), 0 Lux with IR illuminator ON, measured at 30 IRE |
| 可见光相机 | |
|---|---|
| DSS | 1/7.5 to 1/25 or 1/30 with up to 4x sensitivity boost in color or night mode |
| 传感器分辨率 | 2048 x 1536 |
| 信噪比 | ±50 dB |
| 图像传感器 | 1/2.8" BSI CMOS |
| 宽动态范围 | On / Off (78dB) |
| 机械式红外截止滤光片 | Yes |
| 灵敏度 | 0.03 (color)/0.01 (BW), 0 Lux with IR illuminator ON, measured at 30 IRE |
| 白平衡 | Auto / ATW / Manual / One Push |
| 背光补偿 | On / Off |
| 镜头类型 | CM-3102-01-I: Fixed 2.8mm, 102° HFOV, F1.8, D/N CM-3102-11-I: Varifocal 3-10.5mm, 88°-31° HFOV, F1.4, D/N, Motorized with auto-focus and auto-iris |
| 降噪 | 3D |
| 视频和录制 | |
|---|---|
| SD卡记录1 | microSDXC up to 128GB (Class 10) |
| 分辨率范围 | Scalable from D1 to FHD 1080p |
| 最高性能 | H.264 30/25 @ 1080p + 720p + D1 (NTSC/PAL) |
| 视频压缩 | Fully compliant multi-stream H.264 main/high profile + MJPEG |
| 视频带宽 | Configurable between 64 Kbps and 20 Mbps |
| 视频运动检测 | Yes |
| 速率控制 | SVBR |
