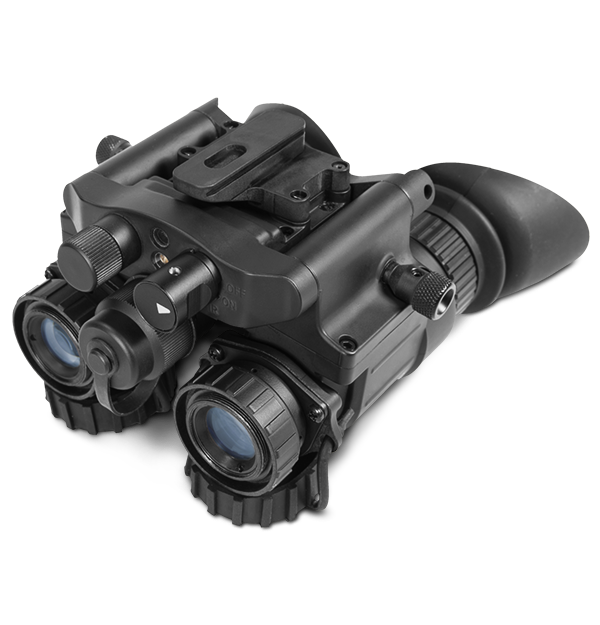

FLIR BNVD-51
51° Night Vision Goggles
The wide-angle FLIR BNVD-51 dual-channel night vision system creates an undisputed tactical advantage. Head and helmet mounting options provide hands-free full-field night vision while multi-coated lenses and composite housing stand up to wear and tear. One AA or CR123A battery can power the BNVD-40 up to 20 hours.
Wide-Angle Night Vision for Superior Awareness
51-degree lens offers a 28% field of view increase over similar 40-degree models.
Head or helmet mounting allows hands-free operation and uninhibited movement.
Simple single-knob gain corrections and flip up/power off display controls allow quick and covert viewing adjustments.
规格
| 传感器与光学 | |
|---|---|
| 亮光切断 | Yes |
| 光阴极类型 | GaAs |
| 出射光瞳直径[mm] | - |
| 分辨率 | - |
| 屈光度调节 | -6 to +2 dpt |
| 放大率 | 1x standard (3x optional) |
| 第IIT代像管等级 | Gen 3 Ghost ("Ghost" White Phosphor) |
| 红外发光器 | Yes (built-in with pivotal flood lens) |
| 自动亮度控制 | No |
| 良视距[mm] | 17 mm |
| 视场角 | 51° |
| 调焦范围 | 0.25 m to Infinity |
| 镜头系统 | F/1.26; 19 mm |
| 环境与认证 | |
|---|---|
| 存储温度 | -50°C to +50°C (-58°F to +122°F) |
| 工作温度 | -40°C to +50°C (-40°F to +122°F) |
| 电源 | |
|---|---|
| 电池低电量指示 | Yes (In FOV) |
| 电池寿命 | Up to 20 hours (up to 80 hrs with optional Battery Pack) at 20°C |
| 电源 | One AA (1.5 V) or 123A (3 V) |
| 自动关机 | Yes |
| 文件存储和通讯 | |
|---|---|
| 远程控制 | - |
| UI-UX | |
|---|---|
| 十字线颜色 | - |
| 手动增益控制 | Yes |
| 红外指示器 | Yes (In FOV) |
| 系统概览 | |
|---|---|
| 保修 | 2 Years |
| 十字线类型 | - |
| 轨道之上观测装置轴线的高度 | - |
| 风阻_仰角调节 | - |
| 物理 | |
|---|---|
| 三脚架 | - |
| 产品重量 | 0.61 kg (1.35 lbs) |
| 尺寸（长 x 宽 x 高） | 157 × 124 × 78 mm (6.2 × 4.9 × 3.1 in) |
| 配件 | |
|---|---|
| 可选附件 | 3x Afocal Lens Kit (includes 2 lenses) , Battery Pack #206 (Includes: Battery Pack Bracket #231, Nylon Bag), Battery Pack Kit (Includes: Battery Pack #206 w/ Battery Pack Bracket #231and Nylon Bag, NVG Interface Shoe with Connector #212, Battery Locking Plate, Battery Locking Plate Adapter #213, NVG Interface Shoe with Connector #212, Goggle Kit for BNVD (Includes: Goggle Kit #205, Adapter #224), Helmet Mount Kit for BNVD (Includes: Helmet Mount #3, Adapter #224), Tactical Goggle Kit for BNVD (Includes: Wilcox L4 G24 w/ Low Profile Breakaway mount, Wilcox 3 Hole Shroud, Wilcox Lanyard, Crye Precision Head Cap),Mil-Standard Hard Shipping/Storage Case #101. |
| 随附配件 | Packing Box, Soft Carrying Case, Lens Tissue, Quick Start Guide, NVG Interface Shoe (preinstalled), Bayonet/Horn Interface Shoe, Sacrificial Window (2), Demist Shield (2). |
