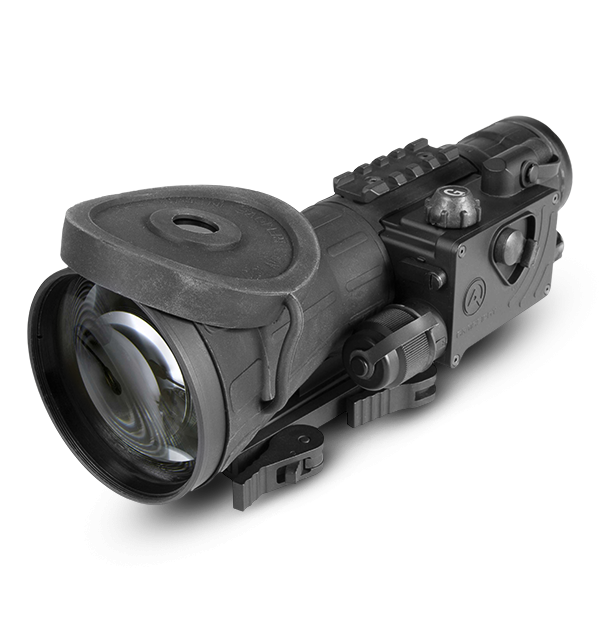

FLIR CO-LR-LRF
108 mm Night Vision Clip-On System
Designed for long-range target detection and engagement, the FLIR CO-LR-LRF adds high-performance night vision to any standard day scope. Using an existing ballistic reticle for shot placement, the CO-LR-LRF provides immediate precision by quickly mounting in front of day optics—no rezeroing needed. Variable gain control and included XLR IR illuminator further enhance imaging in challenging light conditions.
规格
| 传感器与光学 | |
|---|---|
| 亮光切断 | Yes |
| 光阴极类型 | Multi-Alkali |
| 出射光瞳直径[mm] | 50 mm |
| 分辨率 | 47-54 lp/mm |
| 屈光度调节 | - |
| 放大率 | 1× (recommended to use with up to 12x day time optics) |
| 第IIT代像管等级 | Gen 2+ QS ("Quick Silver" White Phosphor) MG |
| 红外发光器 | Detachable Long Range IR |
| 自动亮度控制 | Yes |
| 良视距[mm] | - |
| 视场角 | 9° |
| 调焦范围 | 25 m to Infinity |
| 镜头系统 | F/1.54; 108 mm |
| 环境与认证 | |
|---|---|
| 存储温度 | -50°C to +70°С (-58°F to +158°F) |
| 工作温度 | -40°C to +50°С (-40°F to +122°F) |
| 电源 | |
|---|---|
| 电池低电量指示 | Yes (in FOV) |
| 电池寿命 | Up to 45 hours |
| 电源 | CR123 Lithium 3V (1) or AA Alkaline 1.5V (1) or any AA or CR123 type rechargeable batteries with voltage from 1.2V to 3.7V (1) |
| 自动关机 | Yes |
| 文件存储和通讯 | |
|---|---|
| 远程控制 | Wireless |
| UI-UX | |
|---|---|
| 十字线颜色 | - |
| 手动增益控制 | Yes |
| 红外指示器 | No |
| 系统概览 | |
|---|---|
| 保修 | 2 Years |
| 十字线类型 | - |
| 轨道之上观测装置轴线的高度 | 40 mm |
| 风阻_仰角调节 | - |
| 物理 | |
|---|---|
| 三脚架 | - |
| 产品重量 | 1.1 kg (2.4 lbs) |
| 尺寸（长 x 宽 x 高） | 240 х 97 х 87 mm (9.4 х 3.8 х 3.4 in) |
| 配件 | |
|---|---|
| 可选配件 | Extended Rail Adapter #85, FSRS (Front Scope Rail System) #38, Mil-Standard Hard Shipping/Storage Case #102, XLR-IR Afocal Doubler - Doubles the distance of XLR-IR850 IR beam, AMRF2200 - Advanced Modular Range Finder |
| 随附配件 | Battery adapter CR123A 3V / AA 1.5V, XLR-IR850 Detachable X-Long Range Infrared Illuminator, Adjustment-Control-DeviceBattery, Picatinny adapter for AWReC (Advanced Wireless Remote Control), AWReC (Advanced Wireless Remote Control) #94, Instruction Manual with Warranty Card, Special Wrench, Light-Suppressor, Soft carrying Case, Packing Box, Lens Tissue |
附件
资源和支持
Datasheet
CO-LR-LRF Datasheet
Warranty
FLIR Outdoor And Tactical Systems Limited 2-3-10 Warranty
Brochure
Teledyne FLIR Thermal Monoculars for Public Safety Brochure
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
