Discontinued

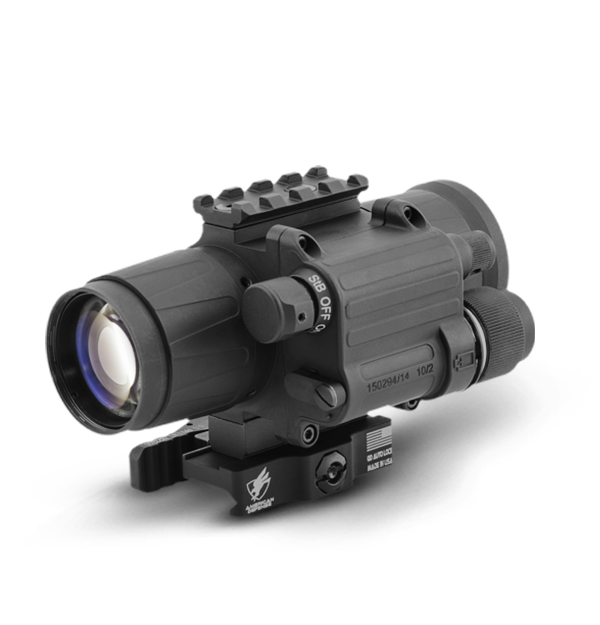

FLIR CO-Mini
Compact Night Vision Clip-On System
Designed for short- to medium-range observation and rapid target acquisition, the FLIR CO-Mini clip-on system converts a standard day optic into a tactical night vision device. The CO-Mini installs in front of magnified day scopes in seconds via objective lens adaptor or quick-release Picatinny mount. Use of the existing day scope reticle allows consistent shot placement without the need to rezero.
Compact, Instantaneous, Tactical Night Vision
Quick-release Picatinny mount and day scope reticle make installation and shot precision possible in seconds.
Compact design and clip-on mounting allow familiar shooting position, release, and follow through.
Numerous Gen 2+ and Gen 3 image intensifier tube options, including “Quick Silver” and “Ghost” black and white displays, cater to performance demands and user-preference.
规格
| 传感器与光学 | |
|---|---|
| 亮光切断 | Yes |
| 光阴极类型 | Multi-Alkali |
| 出射光瞳直径[mm] | 27.5 mm |
| 分辨率 | 47-54 lp/mm |
| 屈光度调节 | - |
| 放大率 | 1x (recommended to use with up to 6x day time optics) |
| 第IIT代像管等级 | Gen 2+ QS ("Quick Silver" White Phosphor) MG |
| 红外发光器 | Detachable Long Range IR |
| 自动亮度控制 | Yes |
| 良视距[mm] | - |
| 视场角 | 22° |
| 调焦范围 | 20 m to Infinity |
| 镜头系统 | F/1.25; 38 mm |
| 环境与认证 | |
|---|---|
| 存储温度 | -50°C to +50°С (-58°F to +122°F) |
| 工作温度 | -40°C to +50°С (-40°F to +122°F) |
| 电源 | |
|---|---|
| 电池低电量指示 | Yes (In FOV) |
| 电池寿命 | 60 hrs (3V) / 40 hrs (1.5V) |
| 电源 | CR123 Lithium 3V (1), or AA Alkaline 1.5V (1), or any AA or CR123 type rechargeable batteries with voltage from 1.2V to 3.2V (1) |
| 自动关机 | Yes |
| 文件存储和通讯 | |
|---|---|
| 远程控制 | Wireless |
| UI-UX | |
|---|---|
| 十字线颜色 | - |
| 手动增益控制 | Yes |
| 红外指示器 | No |
| 系统概览 | |
|---|---|
| 保修 | 2 Years |
| 十字线类型 | - |
| 轨道之上观测装置轴线的高度 | - |
| 风阻_仰角调节 | - |
| 物理 | |
|---|---|
| 三脚架 | - |
| 产品重量 | 0.43 kg (0.95 lbs) |
| 尺寸（长 x 宽 x 高） | 125 × 68 × 55 mm (4.9 × 2.7 × 2.2 in) |
| 配件 | |
|---|---|
| 可选配件 | Scope Mounting System 1 #40, Scope Mounting System 2 #41, Scope Mounting System 3 #42, Scope Mounting System 4 #43, Scope Mounting System 6 #44, Extended Rail Adapter #85, XLR-IR Afocal Doubler - Doubles the distance of XLR-IR850 IR beam, Mount for IR illuminator #60, Mil-Standard Hard Shipping/Storage Case #102 |
| 随附配件 | Battery adapter CR123A 3V / AA 1.5V, XLR-IR850 Detachable X-Long Range Infrared Illuminator, Battery, Light Suppressor for Day Scope, AWReC (Advanced Wireless Remote Control) #94, Quick Release Mount, Instruction Manual with Warranty Card, Soft carrying Case, Picatinny adapter for AWReC (Advanced Wireless Remote Control, Special Wrench, Packing Box, Light-Suppressor 3, Light-Suppressor 2, Light-Suppressor 1, Lens Tissue |
