Discontinued

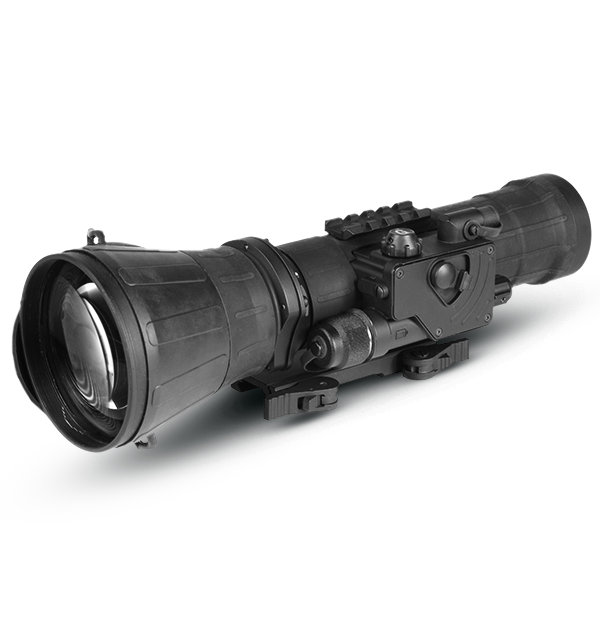

FLIR CO-XLR-LRF
145 mm Night Vision Clip-On System
The FLIR CO-XLR-LRF is the most advanced night vision clip-on in its family. High-performance image intensifier tubes and extra long-range 145 mm optical lens generate superior imagery for engaging targets at extended distances. Installed in front of a standard day optic, the CO-XLR-LRF offers immediate high-quality night vision and precise shot placement—no rezeroing needed. Included XRL IR illuminator maintains excellent image quality in adverse lighting conditions.
Elite Long-Range Performance
145 mm lens and Gen 3 intensifier tubes generate outstanding long-range night vision and quickly detect targets downrange.
Front-mounting allows consistent ballistic reticle use and maintains familiar shot position, release, and follow-through.
Quick-release Picatinny mounting ensures proper rail position and installs in seconds—no tools required.
规格
| 传感器与光学 | |
|---|---|
| 亮光切断 | Yes |
| 光阴极类型 | GaAs |
| 出射光瞳直径[mm] | 50 mm |
| 分辨率 | 64-72 lp/mm |
| 屈光度调节 | - |
| 放大率 | 1x (recommended to use with up to 16x day time optics) |
| 第IIT代像管等级 | Gen 3 Alpha (High Performance) MG |
| 红外发光器 | Detachable Long Range IR |
| 自动亮度控制 | Yes |
| 良视距[mm] | - |
| 视场角 | 7° |
| 调焦范围 | 25 m to Infinity |
| 镜头系统 | F/1.8; 145 mm |
| 环境与认证 | |
|---|---|
| 存储温度 | -50°C to +70°С (-58°F to +158°F) |
| 工作温度 | -40°C to +50°С (-40°F to +122°F) |
| 电源 | |
|---|---|
| 电池低电量指示 | Yes (in FOV) |
| 电池寿命 | Up to 60 hours |
| 电源 | CR123 Lithium 3V (1) or AA Alkaline 1.5V (1) or any AA or CR123 type rechargeable batteries with voltage from 1.2V to 3.7V (1) |
| 自动关机 | Yes |
| 文件存储和通讯 | |
|---|---|
| 远程控制 | Wireless |
| UI-UX | |
|---|---|
| 十字线颜色 | - |
| 手动增益控制 | Yes |
| 红外指示器 | No |
| 系统概览 | |
|---|---|
| 保修 | 2 Years |
| 十字线类型 | - |
| 轨道之上观测装置轴线的高度 | 40 mm |
| 风阻_仰角调节 | - |
| 物理 | |
|---|---|
| 三脚架 | - |
| 产品重量 | 1.30 kg (2.86 lbs) |
| 尺寸（长 x 宽 x 高） | 304 × 104 × 94 mm (12.0 × 4.0 × 3.7 in) |
| 配件 | |
|---|---|
| 可选配件 | Extended Rail Adapter #85, FSRS (Front Scope Rail System) #38, Mil-Standard Hard Shipping/Storage Case #102, XLR-IR Afocal Doubler - Doubles the distance of XLR-IR850 IR beam, AMRF2200 - Advanced Modular Range Finder |
| 随附配件 | Battery adapter CR123A 3V / AA 1.5V, XLR-IR850 Detachable X-Long Range Infrared Illuminator, Adjustment-Control-Device, Battery, Picatinny adapter for AWReC (Advanced Wireless Remote Control, AWReC (Advanced Wireless Remote Control) #94, Instruction Manual with Warranty Card, Special Wrench, Light-Suppressor, Soft carrying Case, Packing Box, Lens Tissue |
