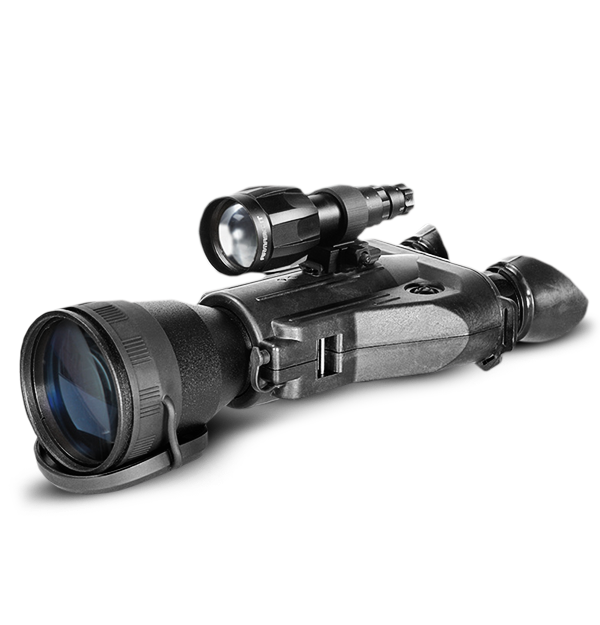

FLIR Discovery 5x
Long-Range Night Vision Bi-Ocular
A highly ergonomic body and 5x magnifying lens make the FLIR Discovery 5x night vision bi-ocular ideal for long-term, long-range surveillance. Detachable extra long-range IR illuminator and automatic brightness control capture sharp night vision in minimal light conditions. Multigenerational intensifier tube options and available “Quick Silver” black and white night vision displays off specialization for specific applications—from perimeter security to wildlife observation.
规格
| Highlighted | |
|---|---|
| 工作温度 | -51°C to +49°C (-59°F to +120°F) |
| 传感器与光学 | |
|---|---|
| 亮光切断 | Yes |
| 光阴极类型 | Multi-Alkali |
| 出射光瞳直径[mm] | 14 mm |
| 分辨率 | 45-51 lp/mm |
| 屈光度调节 | ±5 diopter |
| 放大率 | 5× |
| 第IIT代像管等级 | Gen 2+ SD (Standard Definition) |
| 红外发光器 | Detachable Long Range IR |
| 自动亮度控制 | Yes |
| 良视距[mm] | 17 mm |
| 视场角 | 9.5° |
| 调焦范围 | 10 m to Infinity |
| 镜头系统 | F/1.5; 108 mm |
| 环境与认证 | |
|---|---|
| 存储温度 | -50°C to +70°C (-58°F to +158°F) |
| 工作温度 | -51°C to +49°C (-59°F to +120°F) |
| 电源 | |
|---|---|
| 电池低电量指示 | Yes (In FOV) |
| 电池寿命 | Up to 50 hours |
| 电源 | CR123 Lithium 3V (1) or CR123 type rechargeable batteries with voltage 3.2V (1 |
| 自动关机 | Yes |
| 文件存储和通讯 | |
|---|---|
| 远程控制 | - |
| UI-UX | |
|---|---|
| 十字线颜色 | - |
| 手动增益控制 | No |
| 红外指示器 | No |
| 系统概览 | |
|---|---|
| 保修 | 2 Years |
| 十字线类型 | - |
| 轨道之上观测装置轴线的高度 | - |
| 风阻_仰角调节 | - |
| 物理 | |
|---|---|
| 三脚架 | Yes |
| 产品重量 | 1.3 kg (2.8 lbs) |
| 尺寸（长 x 宽 x 高） | 294 x 138 x 86 mm (11.6 x 5.4 x 3.4 in) |
| 配件 | |
|---|---|
| 可选配件 | Mil-Standard Hard Shipping/Storage Case #101, XLR-IR Afocal Doubler - Doubles the distance of XLR-IR850 IR beam, Tripod with a Grip |
| 随附配件 | XLR-IR850 Detachable X-Long Range Infrared, Illuminator, Packing Box, Neck Lenyard, Soft carrying Case, One Lithium Battery CR123A, Instruction Manual with Warranty Card, Lens Tissue |
