Discontinued

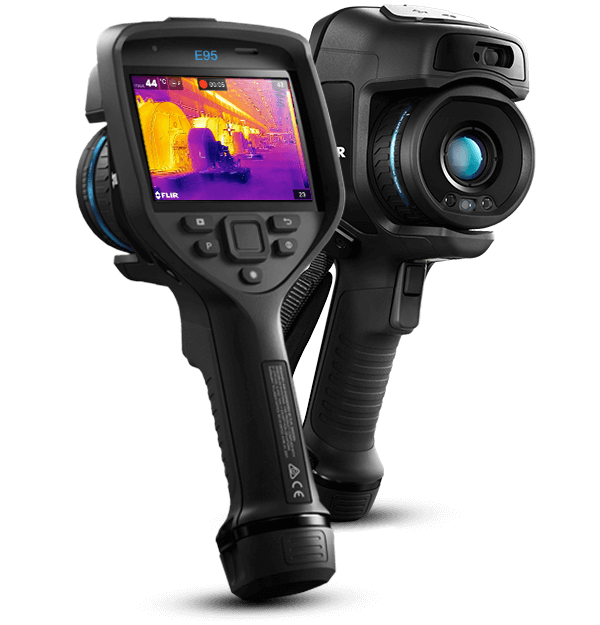

FLIR E95
高级热像仪
FLIR E95具有诊断电气故障、发现隐藏缺陷和保持工作场所平稳运转所需的灵敏度和分辨率。这款红外热像仪拥有众多出色特性，例如：激光辅助自动调焦和屏幕上显示区域测量值，以及161,472（464×348）个温度测量点和较宽的温度量程（最高可达1500℃）。FLIR E95拥有优异的距离系数比和较高的灵敏度，能够检测到细微的温度差异。
经久耐用设计，为辛勤的专业人士打造
针对炼钢厂和其它需要进行准确高温测量的场所，FLIR E95为您提供最高1500°C的温度测量。
FLIR为E95设计了全新的镜头，可自动校准而且能在热像仪之间互换。
FLIR E95具有可定制化的文件夹、可用于添加语音注释的麦克风和报告生成功能，简化您的日常工作。
规格
| Highlighted | |
|---|---|
| 红外分辨率 | 464 × 348 pixels |
| 热灵敏度/NETD | <30 mK, 42° @ +30°C (+86°F) |
| 精度 | ±2°C (±3.6°F) or ±2% of reading for ambient temperature 15°C to 35°C (59°F to 95°F) and object temperature above 0°C (32°F) |
| 视场角（FOV） | 24° × 18° (17 mm lens), 42° × 32° (10 mm lens), 14° × 10° (29 mm lens) |
| 数码相机 | 5 MP, 53° x 41° FOV |
| 图像模式 | Infrared, visual, MSX®, Picture-in-Picture |
| 显示屏 | 4", 640 × 480 optically-bonded PCAP touchscreen, with 400 cd/m2 surface brightness |
| 存储介质 | Removable SD card (8 GB) |
| 成像与光学 | |
|---|---|
| FLIR Screen-EST 模式 | Yes |
| MSX | Embosses visual details on full resolution thermal image |
| UltraMax（超级放大）功能 | Super-resolution process quadruples pixel count, activated in FLIR Tools+ |
| 光圈数 | 1.3, 24° |
| 分辨率 | 640 × 480 pixels (VGA) |
| 取景器 | No |
| 可见光视频流 | Yes |
| 图像模式 | Infrared, visual, MSX®, Picture-in-Picture |
| 图像频率 | 30 Hz |
| 图库 | Yes |
| 探测器类型与像素间距 | Uncooled microbolometer, 17 µm |
| 数字变焦 | 1-4x continuous |
| 数码相机 | 5 MP, 53° x 41° FOV |
| 最小焦距 | 0.15 m (0.49 ft.), 24° |
| 最小焦距（带MSX） | 0.5 m (1.64 ft.), 24° |
| 波长范围 | 7.5 - 14.0 µm |
| 激光 | Class 2, 0.05–40 m (1.6–131 ft.) ±1% of measured distance |
| 热像仪软件升级 | 使用 USB 线或 SD 卡 |
| 热灵敏度/NETD | <30 mK, 42° @ +30°C (+86°F) |
| 焦距 | 17 mm (0.67 in), 24° |
| 画中画 | Resizable and movable |
| 空间分辨率（IFOV） | 2.00 mrad/pixel, 42° |
| 红外分辨率 | 464 × 348 pixels |
| 红外图像 | Yes |
| 草图 | From touchscreen |
| 视场角（FOV） | 24° × 18° (17 mm lens), 42° × 32° (10 mm lens), 14° × 10° (29 mm lens) |
| 调焦 | Continuous, one-shot laser distance meter (LDM), one-shot contrast, manual |
| 调色板 | Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava |
| 辐射红外视频录制 | Real-time radiometric recording (.csq) |
| 辐射红外视频流 | Over UVC |
| 镜头识别 | Automatic |
| 颜色 | Black |
| 测量与分析 | |
|---|---|
| Screen-EST 模式下的精度 [漂移] | Accuracy (drift): ±0.3°C (±0.5°F) |
| Screen-EST 模式下的采样平均值 | Recommended temperature range: 30 to 45°C (86 to 113°F) in stable room temperature |
| 区域测温 | 1 in live mode |
| 参考温度 | Yes |
| 发射率校正 | Yes: variable from 0.01 to 1.0 or selected from materials list |
| 测量校正 | Yes |
| 测量预设 | No measurement, center spot, hot spot, cold spot, User Preset 1, User Preset 2 |
| 温差计算 | Yes |
| 点温仪 | 3 in live mode |
| 精度 | ±2°C (±3.6°F) or ±2% of reading for ambient temperature 15°C to 35°C (59°F to 95°F) and object temperature above 0°C (32°F) |
| 自动热点与冷点检测 | Auto-maximum/minimum markers within area |
| 颜色报警（等温线） | Above/below/interval/condensation/insulation |
| 用户界面 | |
|---|---|
| 声音 | 60 seconds built-in microphone and speaker (and via Bluetooth) on still images and video |
| 文本 | Text from predefined list or soft keyboard on touchscreen |
| 显示屏 | 4", 640 × 480 optically-bonded PCAP touchscreen, with 400 cd/m2 surface brightness |
| 语言 | 21 |
| 通讯与数据存储 | |
|---|---|
| METERLiNK | Wireless connection (Bluetooth) to: FLIR meters with METERLiNK |
| USB | USB Type-C: data transfer/video/power |
| USB-标准 | USB 2.0 High Speed |
| WiFi | Peer to peer (ad hoc) or infrastructure (network) |
| 充电 | In camera (AC adapter or 12 V from a vehicle) or two-bay charger |
| 图像格式 | Standard radiometric JPEG, measurement data included |
| 存储介质 | Removable SD card (8 GB) |
| 视频输出 | DisplayPort over USB Type-C |
| 通信接口 | USB 2.0, Bluetooth, Wi-Fi |
| 音频 | Microphone and speaker for voice annotation of images |
| 电源 | |
|---|---|
| 充电温度 | 0°C to +45°C (+32°F to +113°F) |
| 外接电源管理 | AC adapter 90–260 V AC, 50/60 Hz, or 12 V from a vehicle (cable with standard plug—optional) |
| 电池工作时间 | Approx. 2.5 hours at 25°C (77°F) ambient temperature and typical use |
| 电池电压 | 3.6 V |
| 电池类型 | Li-ion battery, charged in camera or on separate charger |
| 电池重量 | 140 g (4.9 oz.) |
| 电源管理 | Automatic shut-down and sleep mode |
| 环境与认证 | |
|---|---|
| 三脚架安装 | UNC 1/4"–20 |
| 保修 | http://www.flir.com/warranty/ |
| 存储温度范围 | –40°C to 70°C (-40°F to 158°F) |
| 安全性 | EN/UL/CSA/PSE 60950-1 |
| 工作温度范围 | –15°C to 50°C (5°F to 122°F) |
| 抗跌落 | Designed for 2 m (6.6 ft) |
| 无线电频谱 | •ETSI EN 300 328 •FCC Part 15.249 •RSS-247 Issue 2 |
| 湿度（工作及存放） | IEC 60068-2-30/24 hours/95% relative humidity 25–40°C (77–104°F)/two cycles |
| 电磁兼容性（EMC） | •ETSI EN 301 489-1 (radio) •ETSI EN 301 489-17 •EN 61000-6-2 (immunity) •EN 61000-6-3 (emission) •FCC 47 CFR Part 15 Class B (emission) |
| 常规 | |
|---|---|
| 包装 | Infrared camera with lens, small viewfinder eyecup, 2 batteries, battery charger, hard transport case, lanyards, front lens cap, power supplies, printed documentation, SD card (8 GB), cables (USB 2.0 A to USB Type-C, USB Type-C to HDMI, USB Type-C to USB Type-C), License card: FLIR Thermal Studio Pro (3 month subscription) + FLIR Route Creator Plugin for Thermal Studio Pro (3 month subscription) |
| 包装尺寸 | 500 x 190 x 370 mm (19.7 x 7.5 x 14.6 in.) |
| 外壳材料 | PCABS with TPE, magnesium |
| 报警 | Moisture alarm, insulation alarm, measurement alarms |
