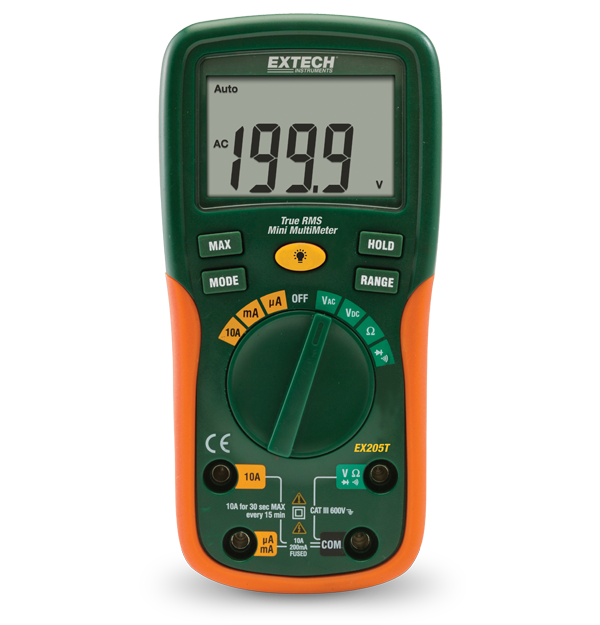

Extech EX205T
TrueRMS Digital Multimeter
The Extech EX205T is a True RMS Digital Multimeter which provides true AC readings when measuring distorted or non-sinusoidal waveforms plus noisy signals. This model is also auto ranging, which means it automatically displays readings with the proper decimal place location and maximum resolution. Featuring a large 2000 count, backlit dual LCD with easy to read digits, this multimeter measures AC/DC voltage, resistance, diode test, and continuity. The meter also makes use of a number of functions including input fuse protection, max hold, auto power off, and data hold functions. Product includes test leads and 9 V battery.
规格
| 一般参数 | |
|---|---|
| 二极管测试 | Yes |
| 交流电压 | 600V |
| 交流电压最大分辨率 | 0.1mV |
| 交流电流 | 10A |
| 交流电流最大分辨率 | 0.1µA |
| 导通性 | Yes |
| 电阻 | 20MΩ |
| 电阻最大分辨率 | 0.1Ω |
| 直流电压 | 600V |
| 直流电压基本精度 | ±0.5% |
| 直流电压最大分辨率 | 0.1mV |
| 直流电流 | 10A |
| 直流电流最大分辨率 | 0.1µA |
| 真有效值 | Yes |
| 其他详情 | |
|---|---|
| 保修 | 2 years |
| 安全等级 | CATIII - 600V |
| 尺寸 | 5.8 × 2.9 × 1.6" (147 × 76 × 42mm) |
| 电源 | 1 × 9V battery |
| 认证 | CE, NIST |
| 重量 | 9.17oz (260g) |
资源和支持
User Manual
Extech EX205T User Manual
Certification
Extech EX205T Declaration of Conformity
Datasheet
Extech EX205T EX210T Datasheet
