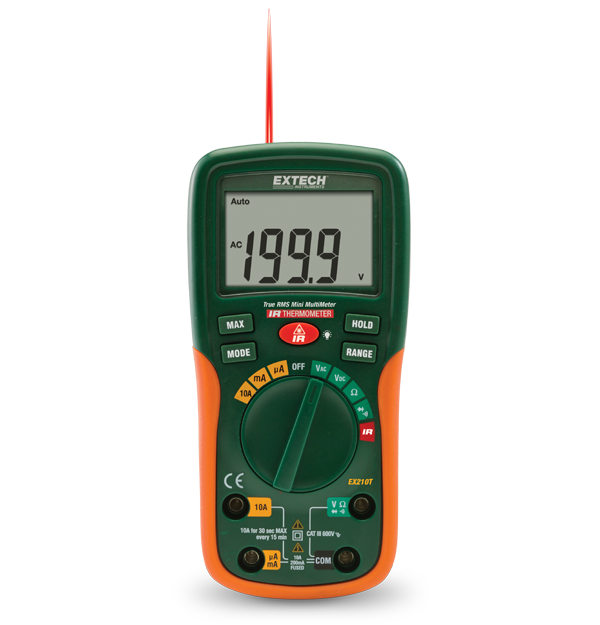

Extech EX210T
TrueRMS Digital Multimeter with IR
The Extech EX210T is a TrueRMS Digital Multimeter with IR. The meter auto ranges and has a 2000 count large LCD display. It measures AC/DC voltage and current, resistance, and temperature (IR). Its True RMS measurements make this meter more accurate and reliable when measuring distorted waveforms, and its built in IR thermometer has a 4:1 distance to target ratio, visually aided by the built in laser pointer. This meter has a CAT III 600 V safety rating and is complete with a year warranty, test leads, and a 9 V battery.
规格
| 一般参数 | |
|---|---|
| 二极管测试 | Yes |
| 交流电压 | 600V |
| 交流电压最大分辨率 | 0.1mV |
| 交流电流 | 10A |
| 交流电流最大分辨率 | 0.1µA |
| 导通性 | Yes |
| 温度 (RTD) | 0.1°F/°C |
| 温度（红外）基本精度 | -5 to 446 °F (-20 to 230 °C) |
| 电阻 | 20MΩ |
| 电阻最大分辨率 | 0.1Ω |
| 直流电压 | 600V |
| 直流电压基本精度 | ±0.5% |
| 直流电压最大分辨率 | 0.1mV |
| 直流电流 | 10A |
| 直流电流最大分辨率 | 0.1µA |
| 真有效值 | Yes |
| 其他详情 | |
|---|---|
| 保修 | 2 years |
| 安全等级 | CATIII - 600V |
| 尺寸 | 5.8 × 2.9 × 1.6" (147 × 76 × 42mm) |
| 电源 | 1 × 9V battery |
| 认证 | CE, ETL |
| 重量 | 9.17oz (260g) |
资源和支持
User Manual
Extech EX210 EX210T User Manual
Certification
Extech EX210T Declaration of Conformity
Datasheet
Extech EX205T EX210T Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
