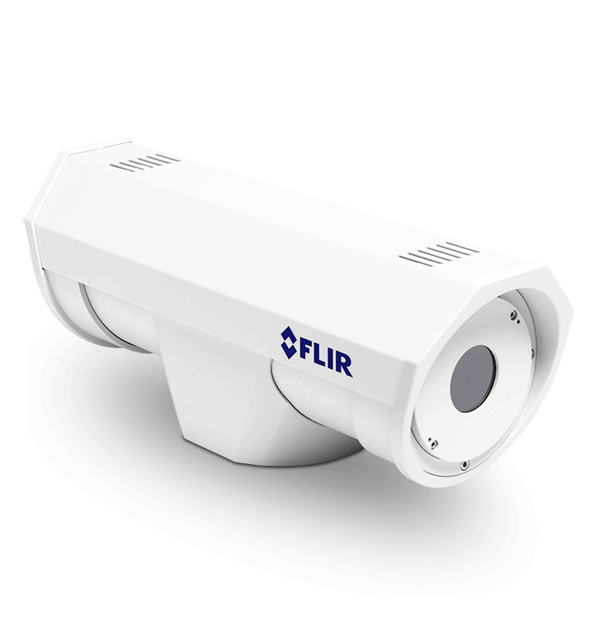

TRITON™ F-Series
Thermal Security Camera
F-Series high-resolution thermal security cameras are fixed-site cameras that give you video and control over both IP and analog networks. F-Series cameras define the new standard of performance with five models that provide 640 × 480 thermal resolution to give you greater image detail, longer detection range, and better analytics performance than ever before.
规格
| 合规性与认证 | |
|---|---|
| 合规性与认证 | EN 61000-6-4: 2007 Class A/CISPR 22: 2005 Class A EN 61000-3-3: 1995+A1:2001+A2:2005 EN 61000-3-2: 2006 EN 50130-4: 1996+A1:1998+A2:2003 FCC Part 15, Subpart B, Class A IP 66 (IEC 60529) IEC 60068-2-27) |
| 环境 | |
|---|---|
| IP防护等级（防尘防水） | IP66 |
| 存储温度范围 | -55°C to 85°C |
| 工作温度范围 | -50°C to 70°C continuous operation -40°C to 70°C cold start |
| 抗振动 | IEC 60068-2-27 |
| 抗撞击 | MIL-STD-810F "Transportation" |
| 湿度 | 0-95% relative |
| 除冰/抗冰 | MIL-STD-810F, Method 521.1; 6 mm of ice |
| 常规 | |
|---|---|
| 功耗 | 24 VDC = 10 W; 46 W (max w/heaters) 24 VAC = 15 VA; 51 VA (max w/heaters) |
| 尺寸（长 x 宽 x 高） | 18.1" × 5.5" × 6.3" (460 × 140 × 160 mm) |
| 探测器类型 | Long-Life, Uncooled VOx Microbolometer |
| 有效热分辨率 | 307200.0 |
| 热像仪像素间距 | 17 µm |
| 热像仪波长范围 | 7.5 µm to 13.5 µm |
| 热电子变焦 | 2× & 4x E-zoom |
| 热调焦范围 | Athermalized, Focus-Free |
| 输入电压 | 24 VAC (21-30 VAC) 24 VDC (21-30 VDC) |
| 重量 | ~10.2 lb (4.8 kg); Configuration Dependent |
| 系统集成 | |
|---|---|
| 串行控制接口 | RS-232/-422; Pelco D, Bosch |
| 以太网 | Yes |
| 兼容外部分析软件 | Yes |
| 网络API | Nexus SDK for comprehensive system control and integration Nexus CGI for http command interfaces ONVIF 2.0 Profile S |
| 热像仪 | |
|---|---|
| 热帧频 | NTSC: 30 Hz or 7.5 Hz PAL: 25 Hz or 8.33 Hz |
| 焦距 | 13 mm |
| 阵列格式 | 640 × 480 |
| 视频和录制 | |
|---|---|
| NTSC或PAL复合视频 | Yes: Hybrid IP & Analog |
| 热成像视频AGC侦测区域[ROI] | Default, Presets and User definable to insure optimal image quality for subjects of interest |
| 热成像视频AGC模式 | Auto AGC, Manual AGC, Plateau Equalization AGC, Linear AGC, Auto Dynamic Detail Enhancement (DDE), Max Gain Setting |
| 视频压缩 | Two independent channels of streaming MPEG-4, H.264, or M-JPEG for each of two cameras; multiple streams per channel. |
| 视频图像一致性优化 | Automatic Flat Field Correction (FFC) - Thermal and Temporal Triggers |
| 视频流分辨率 | NTSC: D1 (720 × 480) 4SIF (704 × 480) VGA (640 × 480) SIF (352 ×240) QVGA (320 × 240) PAL: D1 (720 ×576) 4CIF (704 × 576) CIF (352 × 288) |
