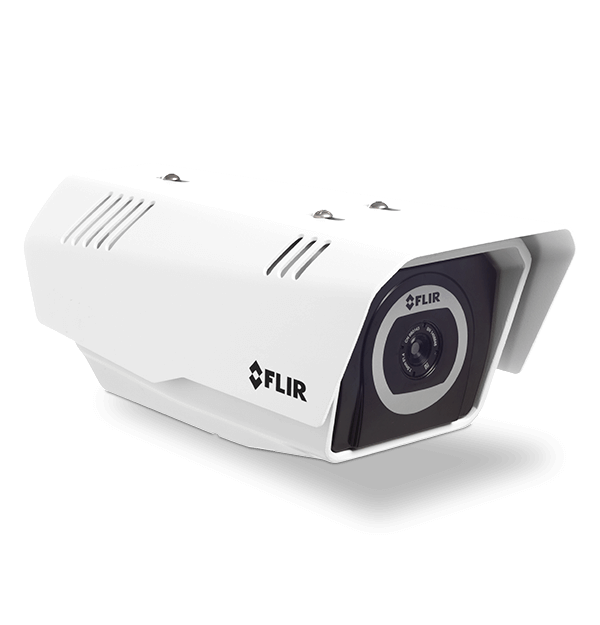

ELARA™ FC-Series S
Thermal Security Camera
The award-winning FLIR ELARA™ FC-Series thermal network camera sets the standard for high quality thermal security cameras, delivering the best image detail in challenging environments. The ELARA Elara FC-Series S can do the work of numerous visible cameras, reducing the need for additional lighting infrastructure.
规格
| 合规性与认证 | |
|---|---|
| 合规性与认证 | EN 55022:2010, Class A EN 61000-3-3: 2008 EN 61000-3-2: 2006+A1: 2009 & A2 2009 EN 55024:2010 EN 51030-4: 2011 FCC Part 15, Subpart B, Class A IP 66 (IEC 60529) IEC 60068-2-27 |
| 环境 | |
|---|---|
| IP防护等级（防尘防水） | IP66 |
| 存储温度范围 | -55°C to 85°C |
| 工作温度范围 | -50°C to 70°C (continuous operation) -40°C to 70°C (cold start) 55°C high-temp op limit w/black paint |
| 抗振动 | MIL-STD-810F "Transportation" |
| 抗撞击 | IEC 60068-2-27 10g shock pulse with a 11 ms half-sine profile |
| 湿度 | 0-95% relative |
| 运输振动 | FedEx free-fall drop test |
| 除冰/抗冰 | MIL-STD-810F, Method 521.1; 6 mm of ice |
| 常规 | |
|---|---|
| 功耗 | PoE (IEEE 802.3af-2003) PoE+( IEEE 802.3at-2009 standard) 11-56 VDC 12-38 VAC |
| 尺寸（长 x 宽 x 高） | 10.2" x 4.5" x 4.2" (259 x 114 x 106 mm) w/o sunshield 11.1" x 5.1" x 4.5" (282 x 129 x 115 mm) with sunshield |
| 探测器类型 | Long-Life, Uncooled VOx Microbolometer |
| 有效热分辨率 | 76800.0 |
| 热像仪像素间距 | All 25 µm (FC-309 is 17 µm) |
| 热像仪波长范围 | 7.5 µm to 13.5 µm |
| 热电子变焦 | Up to 4× Continuous E-zoom |
| 热调焦范围 | Athermalized, Focus-Free |
| 输入电压 | 14-32 VDC 18-27 VAC |
| 重量 | 4.0 lb (1.8 kg) w/o sunshield 4.8 lb (2.2 kg) with sunshield |
| 系统集成 | |
|---|---|
| 串行控制接口 | No |
| 以太网 | Yes |
| 兼容外部分析软件 | Yes |
| 支持的协议 | IPV4, HTTP, Bonjour, UPnP, DNS, NTP, RTSP, RTCP, RTP, TCP, UDP, ICMP, IGMP, DHCP, ARP, SCP |
| 网络API | Nexus SDK for comprehensive system control and integration Nexus CGI for http command interfaces ONVIF 2.0 Profile S |
| 热像仪 | |
|---|---|
| 热帧频 | NTSC: 30 Hz or 7.5 Hz PAL: 25 Hz or 8.33 Hz |
| 焦距 | 35 mm |
| 阵列格式 | 320 × 240 |
| 视频和录制 | |
|---|---|
| NTSC或PAL复合视频 | Yes: Hybrid IP & Analog |
| 热成像视频AGC侦测区域[ROI] | Default, Presets and User definable to insure optimal image quality on subjects of interest |
| 热成像视频AGC模式 | Auto AGC, Manual AGC, Plateau Equalization AGC, Linear AGC, Auto Dynamic Detail Enhancement (DDE), Max Gain Setting |
| 视频压缩 | Two independent channels of H.264, MPEG-4 & M-JPEG |
| 视频图像一致性优化 | Automatic Flat Field Correction (FFC) - Thermal and Temporal Triggers |
| 视频流分辨率 | D1: 720 × 576 4CIF: 704 × 576 Native: 640 × 512 Q-Native: 320 × 256 CIF: 352 × 288 QCIF: 176 × 144 |
