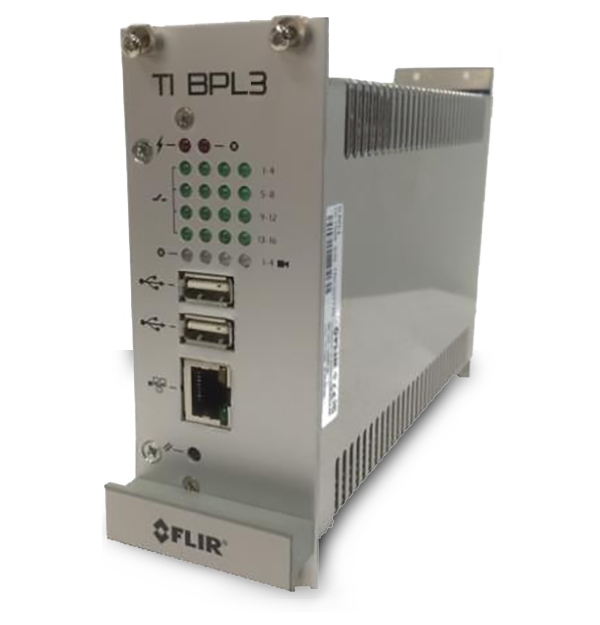

FLIR TI BPL3
3rd Generation Broadband Over Power Line Interface
Product Variations
This interface connects zone outputs from BPL3 sensors* and/or Power Line sensors to a controller, providing power and communications to BPL3 sensors and/or PL sensors. It also connects the PC to BPL3 sensors and/or PL sensors for system configuration and viewing
.*BPL3 Sensor(s): TrafiOne, ThermiCam AI, TrafiCam AI, TrafiSense AI, LaneCom T, LaneCom V
规格
| 系统概览 | |
|---|---|
| 最多支持的热像仪数目 | 标准：1 - 4 个 BPL3 或 PL 传感器 最大：4 个 BPL3 或 PL 传感器 |
| 错误输出 | 4 个光耦常开干触点（经由背面的端子连接器接入）Imax = 50 m A，Umax = 48 V DC 正面 1 个接口错误 LED，4 个 BPL3 或 PL 传感器状态 LED |
| 电气 | |
|---|---|
| 功耗 | ≤3 W |
| 电流消耗 | 在 24 VDC 电压下 ≤130 mA |
| 输入电压 | TI BPL3 EURO：12–60 VDC 或 12–42 VAC TI BPL3 EDGE B&SIU：12-42 VDC 或 12-30 VAC |
| 环境 | |
|---|---|
| 工作温度范围 | NEMA II 技术参数：-40°C 至 74°C |
| 机械 | |
|---|---|
| 重量 | TI BPL3 EURO：570 g TI BPL3 EDGE B&SIU：750 g |
Resources & Support
Datasheet
Flir TI BPL3 Datasheet
