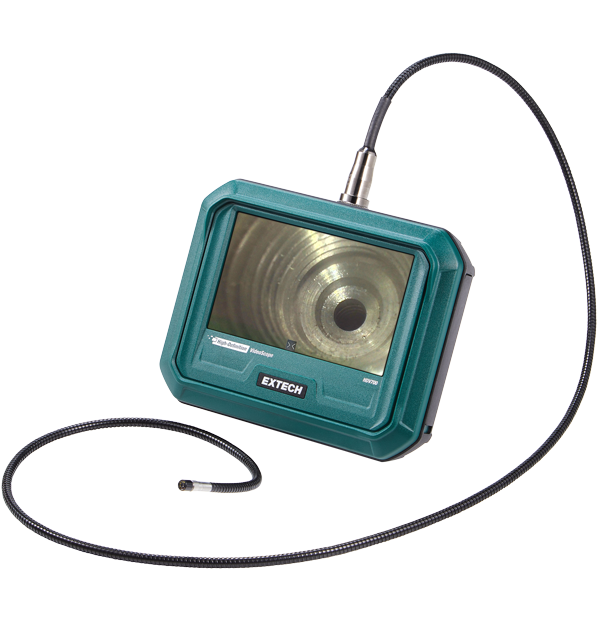

Extech HDV700 系列
高性能视频内窥镜套装
Extech HDV700 是一款多功能、轻便小巧的专业视频内窥镜，用于在难以进入或不安全的地方进行检测。借助八个防水 (IP67) 相机探头*中的一个或多个，您可将 HDV700 用于制造、HVAC/R、管道、建筑和汽车领域的状态监控。可提供一系列小直径和铰接式相机探头，让您可以在 5 英寸彩色触摸屏显示器上清楚地观察组件。无需拆卸设备，即可轻松操纵窄探头进入狭小的开口。HDV700 还有多种数据记录选择，因而可以通过将图像和视频传输到笔记本电脑，在工作现场轻松创建报告。
*单独出售，或作为套装出售（有关其他探头选择，请参阅相关产品部分）
规格
| 一般参数 | |
|---|---|
| Articulation | HDV730_S: 2 ways 180° HDV740_S: 4 ways 110° |
| Battery | 3.6 V Li-Ion Battery |
| Depth of Field | 10 mm to infinity |
| Diameter | HDV710_S: 5.5 mm HDV720_S: 4.9 mm HDV730_S: 3.9 mm HDV740_S: 6.0 mm HDV750_S: 28 mm |
| Direction of Camera View | HDV710_S, HDV730_S, HDV740_S, HDV750_S: Forward HDV720_S: Forward and side (DUAL HD) |
| Encapsulation | Display: IP54 Camera Probe: IP67 |
| Field of view [FOV] | HDV710_S, HDV720_S, HDV730_S: 90° HDV740_S: 87.1° HDV750_S: 150° |
| Frame Rate | 30 fps |
| Operating Temperature | -10°C to 60°C (14°F to 140°F) |
| Probe Flexibility | HDV710_S, HDV720_S: Semi-rigid HDV730_S, HDV740_S: Flexible, stainless steel mesh HDV750_S: Fiberglass |
| Probe Length | HDV710_S, HDV720_S, HDV740_S: 1 m HDV730_S: 1.5 m HDV750_S: 30 m spool |
| Resolution | HDV710_S, HDV720_S, HDV730_S: Camera Probe: 1280 × 720 HDV740_S, HDV750_S: Camera Probe: 640 × 480 |
| Storage Capacity | Up to 64 GB micro SD (32 GB microSD included) |
| Tripod Mounting | UNC ¼"–20 |
| 其他详情 | |
|---|---|
| Certifications | CE, UKCA |
| Warranty | 2 years |
Accessories
Resources & Support
Datasheet
Extech HDV700 Datasheet
Certification
Extech HDV700 Declaration of Conformity Certificate
User Manual
Extech HDV700 User Manual
User Manual
Extech HDV7C-55-3 User Manual
User Manual
Extech HDV7C-55-HD-1 49-DUAL-1 User Manual
User Manual
Extech HDV7C-A2-39-HD-1 User Manual
User Manual
Extech HDV7C-A2-45-15 User Manual
User Manual
Extech Four-Way Articulating Probes User Manual [HDV7C-A4–60–1, HDV7C-A4–60–3]
User Manual
Extech HDV7C-P28-30 User Manual
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
