ioi SD Fixed Cameras
Day and Night, Inside and Out

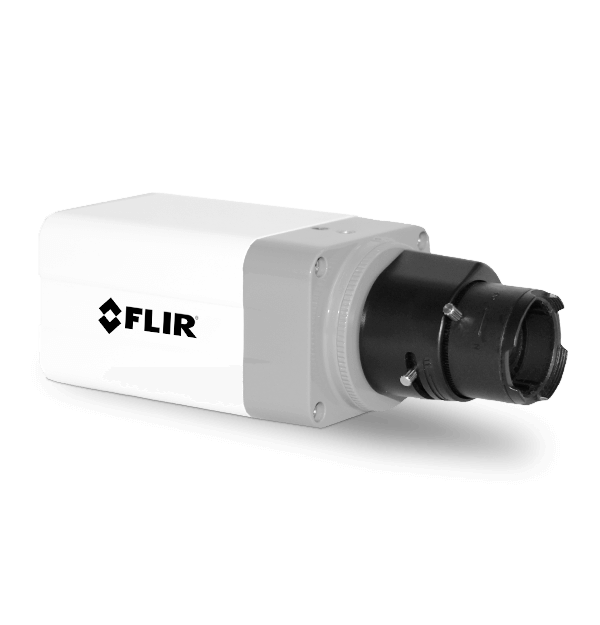

The SC1DN-S is a compact, self-contained day/night IP camera that doesn't require additional components for video analysis. The camera analyzes captured video signals and sends alarms when people, vehicles or objects cross perimeters, enter pre-defined regions, are left behind or removed from a scene. Users can set customizable rules and criteria to define specific regions and what to detect.
规格
| 合规性与认证 | |
|---|---|
| 安全性 | UL, CE |
| 环境 | |
|---|---|
| 工作温度 | 0° to 50°C (32° to 122°F) |
| 工作湿度 | 5% to 90% (non-condensing) |
| 环境参数 | RoHS |
| 电磁兼容性（EMC） | FCC 47 CFR Part 15, Subpart B, Class A; CE Class A |
| 常规 | |
|---|---|
| H.264帧频（PAL/NTSC） | MPEG-4 SP: up to 30 FPS for all resolutions; H.264: up to 25/30 FPS for CIF and 2CIF, 18 FPS for VGA, and 12/15 FPS for D1 and 4CIF |
| 功耗 | 3.6W @ 12VDC; 6W @ 24VAC |
| 噪声 | Dynamic range up to 82 dB |
| 存储在边缘 | 3,800Mb event recording |
| 尺寸（宽×高×深） | 73 x 60 x 133 mm/2.87 x 2.36 x 5.24" |
| 操作系统 | Windows XP, 7, 8, and 8.1 |
| 智能视频分析信道数目 | 1.0 |
| 电压 | 12VDC, 24VAC |
| 系统集成 | |
|---|---|
| TV标准 | Composite 1Vp-p - NTSC or PAL |
| 以太网（IEEE 8023-8023u） | 1x Ethernet RJ45 interface |
| 报警/命令 | TCP/IP, HTTP |
| 报警输入 | 1x dry contact |
| 服务与协议 | TCP/IP, UDP/IP, HTTP, SMTP, DHCP, DNS, SNTP |
| 浏览器 | Internet Explorer 8, 9, 10, and 11 |
| 物理连接器 | 1x BNC 75Ω |
| 输出/继电器输出 | 1x relay output (rated load 0.3A@30VDC) |
| 可见光相机 | |
|---|---|
| 传感器 | 1/4" CMOS image sensor; 540 HTVL, 640 (H) x 480 (V) effective pixels (NTSC or PAL) |
| 传感器分辨率 | 640 x 480 |
| 曝光 | Auto DC iris control, Automatic gain control (AGC) |
| 每信道最高分辨率 | VGA |
| 红外截止滤光片 | Auto/manual |
| 背光补偿 | On/ Of |
| 视频和录制 | |
|---|---|
| IP视频流 | H.264, MPEG-4 SP, MJPEG |
| 比特率 | CBR, VBR |
| 视频流 | RTP/RTSP |
