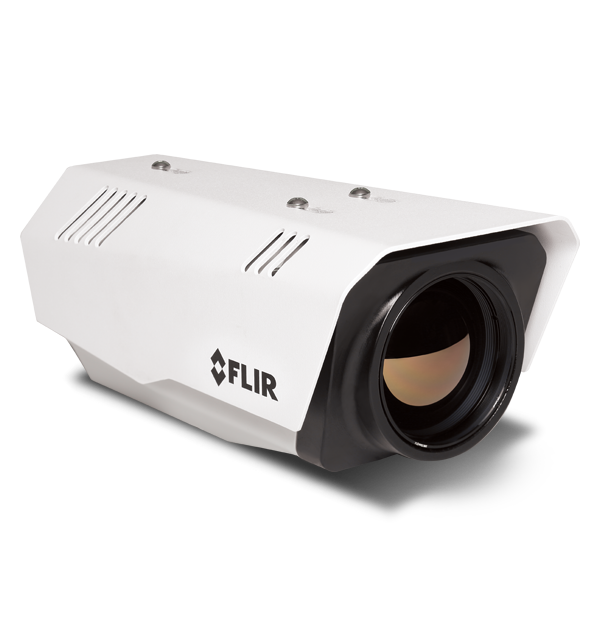

ITS-Series AID
交通事件自动检测专用热像仪
FLIR ITS系列AID红外热像仪将热成像技术与先进的视频分析器相结合，提供完整的交通事件自动检测、数据收集和早期火灾检测解决方案。FLIR交通视频分析器的有效性已在世界各地的公路上和隧道中得到证实，如今与功能强大的热成像技术相结合，使交通管理者能够在恶劣的天气条件下于漆黑环境中从远距离处看清检测目标。
规格
| 通讯 | |
|---|---|
| 以太网视频 | Two independent channels of H.264 or M-JPEG |
| 模拟视频输出 | PAL |
| 电气 | |
|---|---|
| 功耗-电源-12VDC | Heater off: <5.5 W Heater on (at 100%): <25 W |
| 功耗-电源-24VAC(VA) | Heater on: <8 W Heater off (at 100%): <32 W |
| 功耗-电源-24VDC | Heater on: <5.5 W Heater off (at 100%): <25 W |
| 功耗-电源-POE(802.3af) | Heater on: <5.5 W Heater off (at 100%): N/A |
| 功耗-电源-POE+[802.3at] | Heater on: <5.5 W Heater off (at 100%): <25 W |
| 在信号线上的浪涌抗扰性 | EN 55024: 2010 and 55022: 2010 to 4.0kV |
| 环境 | |
|---|---|
| IP防护等级 | IP66 & IP67 |
| 在交流电源线上的浪涌抗扰性 | EN 55024: 2010 and 55022: 2010 to 4.0kV on AC aux power lines; EN 50130-4:2011; IEC 62599-2:2010 |
| 存储温度范围 | -50° to 85°C (-58° to 185°F) |
| 工作温度范围 | -50° to 70°C (-58° to 158°F) continuous operation -40° to 70°C (-40° to 158°F ) cold start |
| 抗振动 | IEC 60068-2-27 |
| 抗撞击 | MIL-STD-810G "Transportation" |
| 湿度 | 0-95% relative humidity |
| 成像与光学 | |
|---|---|
| 分辨率 | 640 x 512 |
| 图像处理 | Automatic Gain Control (AGC) Digital Detail Enhancement (DDE) |
| 波长范围 | 7.5 to 13.5 µm |
| 自动加热器 | Clears ice from windows Automatic deicing |
| 视场角 | FLIR ITS617 AID, 640 x 512, 17° FOV: 17° x 14° FLIR ITS625 AID, 640 x 512, 25° FOV: 32° x 26° FLIR ITS632 AID, 640 x 512, 32° FOV: 25° x 19° FLIR ITS644 AID, 640 x 512, 44° FOV: 44° x 36° |
| 监管 | |
|---|---|
| 认证 | CE: EN55022 Class A; FCC 47 CFR Part 15, Subpart B, Class A (within CISPR 22:2008 Class A limits) |
| 系统概览 | |
|---|---|
| 火灾检测 | Early fire detection in tunnels |
