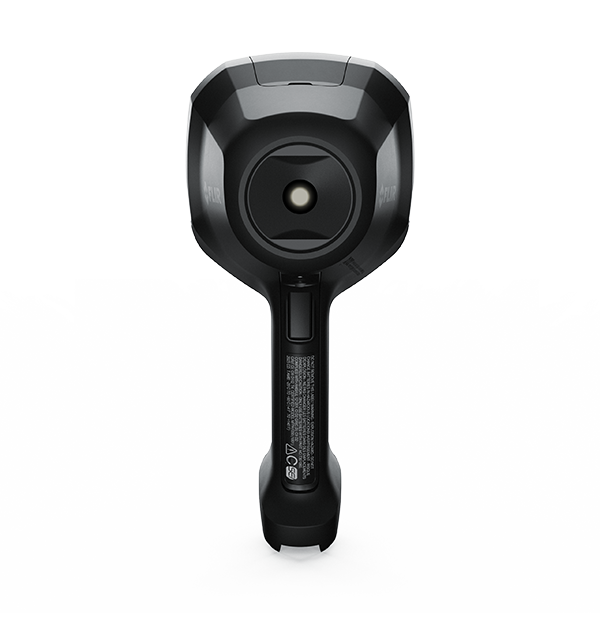

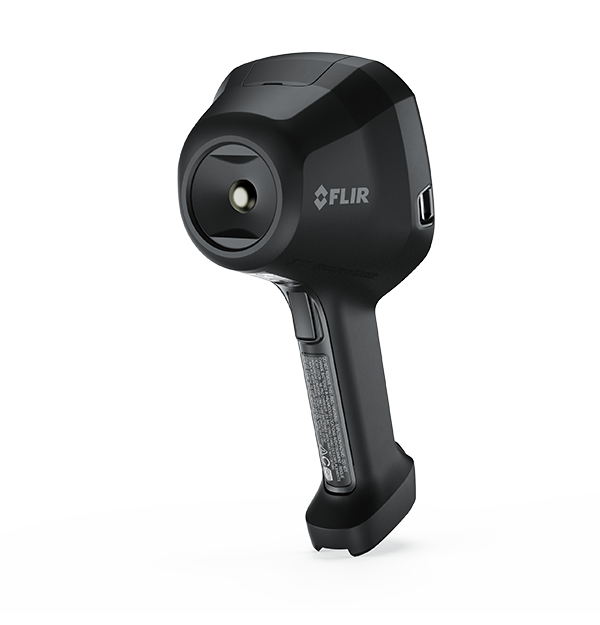

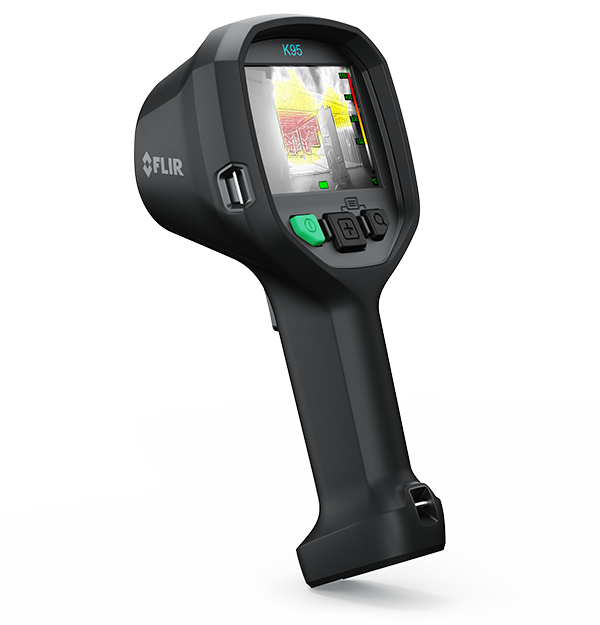

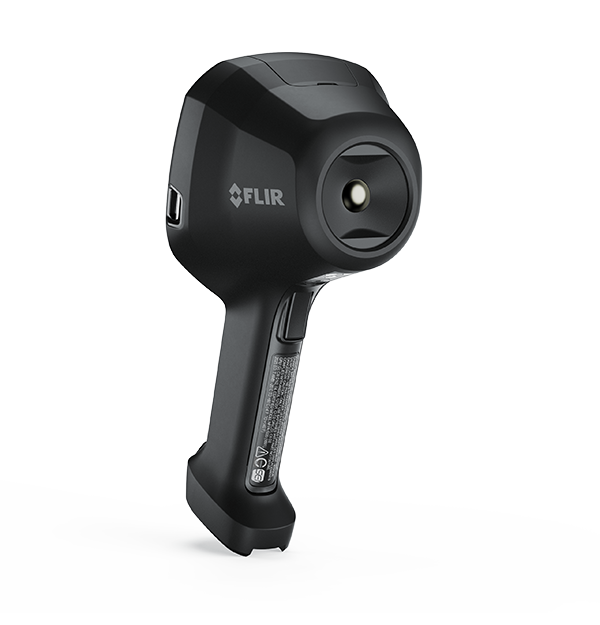

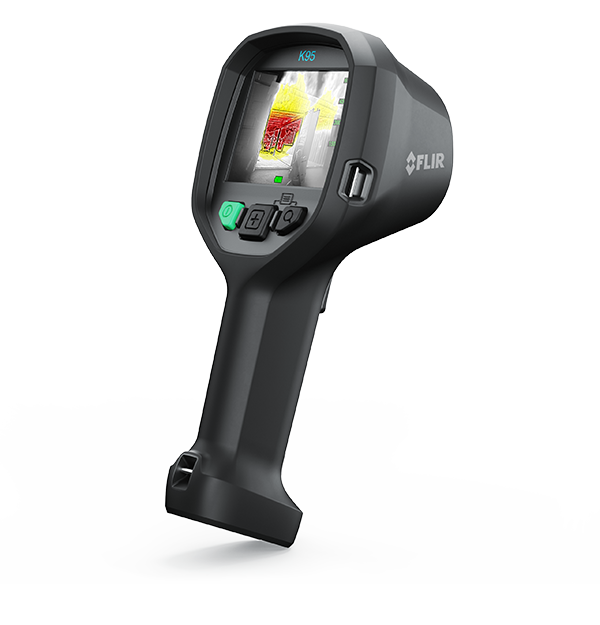

K95
Firefighting TIC, 95° Wide-Angle Field of View, 640 × 480, App-Enabled
The Flir K95 is the next generation of the K-Series, designed to give firefighters a clearer, more complete view before, during, and after every incident. Combining 640 × 480 thermal resolution with an expansive 95° field of view, the K95 reveals more of the scene in every glance. By reducing the need for constant scanning and panning, it helps crews understand room layouts, identify movement paths, assess fire development, and make faster, better-informed decisions during search and rescue and fire attack.
Its single-gain solution provides continuous, freeze-free imaging without losing critical scene information. From overheated doors and hidden fire spread to floor openings, the K95 helps firefighters recognize changing conditions sooner, attack fires more strategically, and manoeuvre through smoke-filled environments with greater confidence. Wireless connectivity to the Flir Responder App also simplifies camera configuration, enables live video streaming for training, and supports mission data sharing after the call.
规格
| 核心参数 | |
|---|---|
| 红外分辨率 | 640 × 480 |
| 显示屏 | 4" LCD, 640 × 480, 60 Hz, backlit |
| 测温范围 | Single range solution operating: -20°C to 650°C (-4°F to 1202°F) |
| 图像模式 | Basic, Search, Detection, High Heat, White Hot |
| 成像与光学 | |
|---|---|
| 图像模式 | Basic, Search, Detection, High Heat, White Hot |
| 图像频率 | 30 Hz |
| 对比度优化 | Flexible Scene Enhancement (FSX®) |
| 探测器类型 | Focal plane array (FPA), uncooled microbolometer |
| 数字变焦 | 2x digital zoom |
| 波长范围 | 7.5µm to 14 µm |
| 热灵敏度/NETD | <70 mK |
| 红外分辨率 | 640 × 480 |
| 视场角（FOV） | 95° × 74° |
| 间距 | 12 µm |
| 非辐射红外视频录制 | MPEG4 to internal flash memory |
| 非辐射红外视频流 | Uncompressed colorized video using USB and MPEG-4 Stream over Wi-Fi to Flir Responder app |
| 环境与认证 | |
|---|---|
| 存储温度范围 | -40°C to 85°C (-40°F to 185°F) |
| 封装 | IP67 (IEC 60529) |
| 工作温度范围 | -20°C to 60°C (-4°F to 140°F)
150°C (302°F): 15 min 260°C (500°F): 5 min |
| 抗振动 | 2 g (IEC 60068-2-6) |
| 抗撞击 | 25 g (IEC 60068-2-27) |
| 抗跌落 | 2 m (6.6 ft) on concrete floor (IEC 60068-2-31) |
| 无线电频谱 | ETSI EN 300 328
ETSI EN 301 893 FCC 47 CFR part 15 RSS-247 |
| 湿度（工作及存放） | IEC 60068-2-30/24 h 95 |
| 电磁兼容性（EMC） | EN 301 489-1 RED
EN 301 489-17 EN 55032 Class B (Emission) EN 55035 (Immunity) EN 61000-6-2 Immunity according to Industrial EN 61000-6-3 380-480MHz EN 61000-6-3 800-960MHz EN 60945 Maritime equipment FCC 47 CFR part 15 B, cla |
| 相对湿度 | 95% relative humidity 25°C to 40°C
(77°F to 104°F) non-condensing |
| 磁场 | EN 61 000-4-8, Test level 5 for continuous field (severe industrial environment) |
| 电源 | |
|---|---|
| 充电时间 | ≤3 h to capacity enough for 3 h operation |
| 充电温度 | 0°C to 45°C (32°F to 113°F) |
| 充电系统 | Desktop 2-bay charger
Optional in-truck charger |
| 安全性[电源] | CE/EN/UL/CSA/PSE 60950-1 IEC 62368 |
| 电池容量 | 5.8 Ah, at 20°C to 25°C (68°F to 77°F) |
| 电池工作时间 | Approx. 4 hours @ 25°C (77°F) ambient temperature and typical use |
| 电池电压 | 3.7 V |
| 电池类型 | Li-Ion |
| 电源管理 | For documents like MSDS and UN38.3 test reports/summaries, see: https://support.flir.com/resources/msds |
| 测量与分析 | |
|---|---|
| 测温范围 | Single range solution operating: -20°C to 650°C (-4°F to 1202°F) |
| 常规 | |
|---|---|
| 包装包括 | Infrared camera
Battery (2 ea.) Battery charger Carabiner strap Power supply Printed documentation Retractable lanyard, 16 N (58 oz) USB cable |
| 用户界面 | |
|---|---|
| 显示屏 | 4" LCD, 640 × 480, 60 Hz, backlit |
| 通讯与数据存储 | |
|---|---|
| USB | USB-C |
| WiFi | IEEE 802.11 b/g/n (2.4 GHz) |
| 图像存储 | Camera and Flir Responder app |
| 图像存储容量 | 200 files in total (N.B. The total number of files varies dependent on the number of saved video clips) |
| 存储介质 | Internal flash memory |
| 接口 | Update via OTA (Wi-Fi using the Flir Responder app)
Legacy support for updates from PC and data transfer to and from PC |
| 文件格式 | Standard JPEG |
| 蓝牙 | Bluetooth v. 5.0 EDR + BLE *PAN |
附件
资源和支持
Datasheet
FLIR K95 产品规格表
Warranty
FLIR Fire Service 2-5-10 Global Limited Warranty
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
