FLIR MIX™ X-Series Starter Kit
Visible and Infrared Starter Kit for High Speed Scientific Research

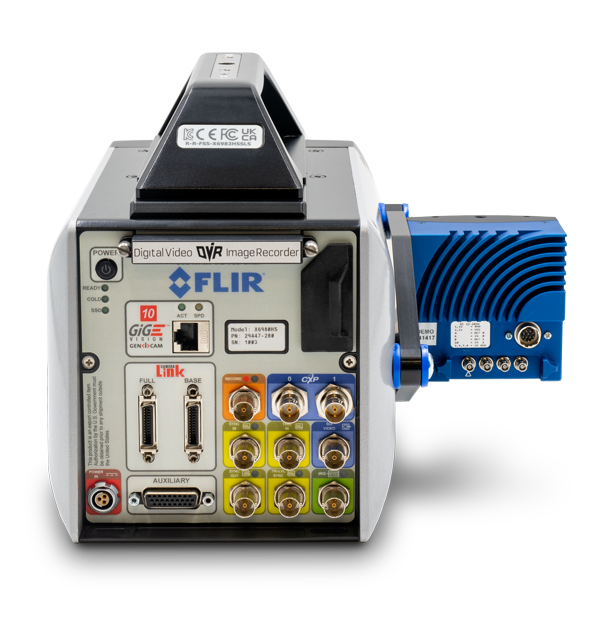

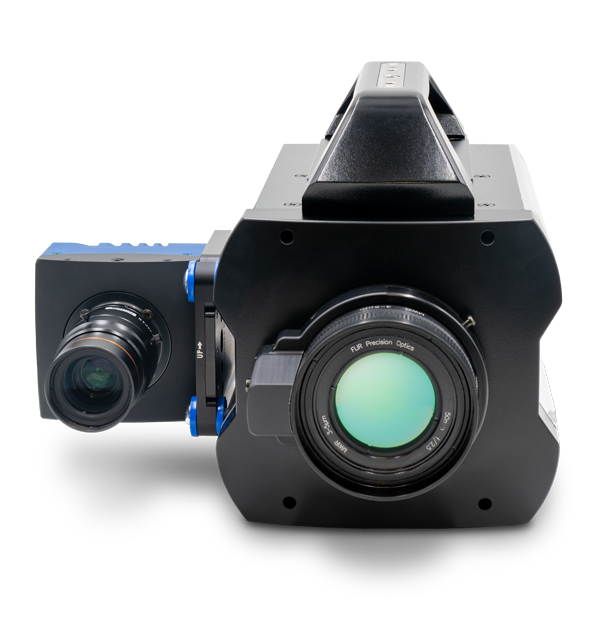

Designed for researchers and engineers who push the boundaries of discovery, the MIX Starter Kit for X-Series infrared cameras seamlessly blends infrared and visible light imagery into a single, synchronized data file. With highly accurate spatial and temporal alignment, this kit eliminates the guesswork of traditional thermal analysis, allowing users to instantly correlate heat patterns with structural details. Capturing and combining combining infrared and visible imagery at up to 1,004 frames per second, this kit ensures that every millisecond of change is captured with absolute precision, making it perfect for high-speed scientific research such as air bag testing, ballistics, and explosive dynamics.
With FLIR MIX, you don’t just see more—you see everything.
See More. Know More.
Capture every detail with temporally and spatially aligned infrared and visible imagery: no complex post-processing, no data gaps—just instant clarity.
Record fast-moving thermal events with up to 1,004 frames per second at full resolution, ensuring you never miss a crucial moment.
Stream, control, and record infrared and visible data; then analyze and share—all within FLIR Research Studio.
规格
| Highlighted | |
|---|---|
| 探测器分辨率 | 1920 × 1080 (Visible Camera) |
| 像素间距 | 10 µm (Visible Camera) |
| 探测器类型 | Area CMOS (Visible Camera) |
| 帧频[全窗口] | 1120 Hz (Visible Camera) |
| 积分时间 | 2 µs to 1 second |
| 成像与光学 | |
|---|---|
| 像素间距 | 10 µm (Visible Camera) |
| 子窗口模式 | Flexible down to 1920 × 8 at 86,230 Hz |
| 帧频[全窗口] | 1120 Hz (Visible Camera) |
| 探测器分辨率 | 1920 × 1080 (Visible Camera) |
| 探测器类型 | Area CMOS (Visible Camera) |
| 数字数据流 | CXP-12 over 2 links |
| 积分时间 | 2 µs to 1 second |
| 镜头 | 35 mm 4/3” lens |
| 镜头接口 | C-mount |
| 通讯与数据存储 | |
|---|---|
| 接口 | Frame grabber interface: Up to 4 CXP 2.1, 12 Gbps links – supports 1 or 2 links to the infrared camera and 2 links to the included visible camera. Computer interface: Thunderbolt 3 (computer not included) |
| 触发模式 | Button, external TTL signal, CXP-trigger |
| 常规 | |
|---|---|

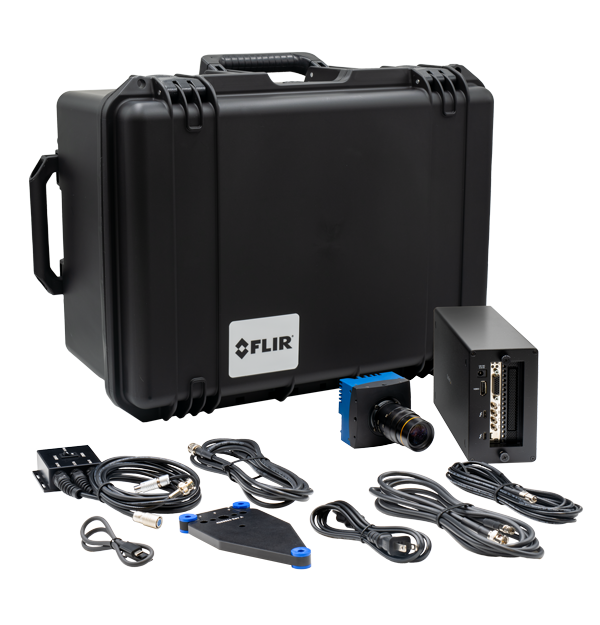

| 包装包括 | High Speed Visible Camera, CXP-12 Quadlink Framegrabber to Thunderbolt System, BNC to HD-BNC Cables, X-Camera Side Mount, Research Studio Pro 1-Year License Card, Research Studio MIX Toolkit (perpetual lic.), Kowa XC-Series 35 mm 4/3" C-mount lens, Power/Sync Cable, HD-BNC Install/Removal Tool, Hard Case |
